超级电容器用强溶剂化及小尺寸离子电解液的设计与应用

doi:10.61558/2993-074X.3621

电化学（中英文） ›› 2026, Vol. 32 ›› Issue (9): 2604271. doi: 10.61558/2993-074X.3621

• 论文 • 上一篇

超级电容器用强溶剂化及小尺寸离子电解液的设计与应用

霍桐, 刘盼, 陈浩, 张鹏, 陈振磊, 孙国富, 时志强^*(), 王静

天津工业大学材料科学与工程学院，先进炭材料与能源实验室，天津 300387

收稿日期:2026-04-22 修回日期:2026-05-28 接受日期:2026-06-23 发布日期:2026-06-23 出版日期:2026-09-28

Engineering Small-Sized Cations with Strong Solvation for High-Voltage Supercapacitors

Tong Huo, Pan Liu, Hao Chen, Peng Zhang, Zhen-Lei Chen, Guo-Fu Sun, Zhi-Qiang Shi^*(), Jing Wang

College of Materials Science and Engineering, Tianjin Key Laboratory of Advanced Fibers and Energy Storage, Tiangong University, Tianjin 300387, China

Received:2026-04-22 Revised:2026-05-28 Accepted:2026-06-23 Online:2026-06-23 Published:2026-09-28
Contact: *Zhi-Qiang Shi, Email address: shizhiqiang@tiangong.edu.cn
About author:Author Contributions
Tong Huo, Pan Liu, Hao Chen, Peng Zhang, Zhen-Lei Chen, Guo-Fu Sun, Zhi-Qiang Shi, Jing Wang jointly conceived the work. Tong Huo and Guo-Fu Sun performed material synthesis and characterisation. Pan Liu, Peng Zhang and Zhen-Lei Chen conducted the MD and DFT calculations. Hao Chen collected and analysed the NMR and Raman spectra. Tong Huo, Zhi-Qiang Shi and Jing Wang jointly drafted the manuscript. All authors discussed the experimental content and the final manuscript.

1. 2604271SI.pdf(2464KB)

摘要/Abstract

摘要：

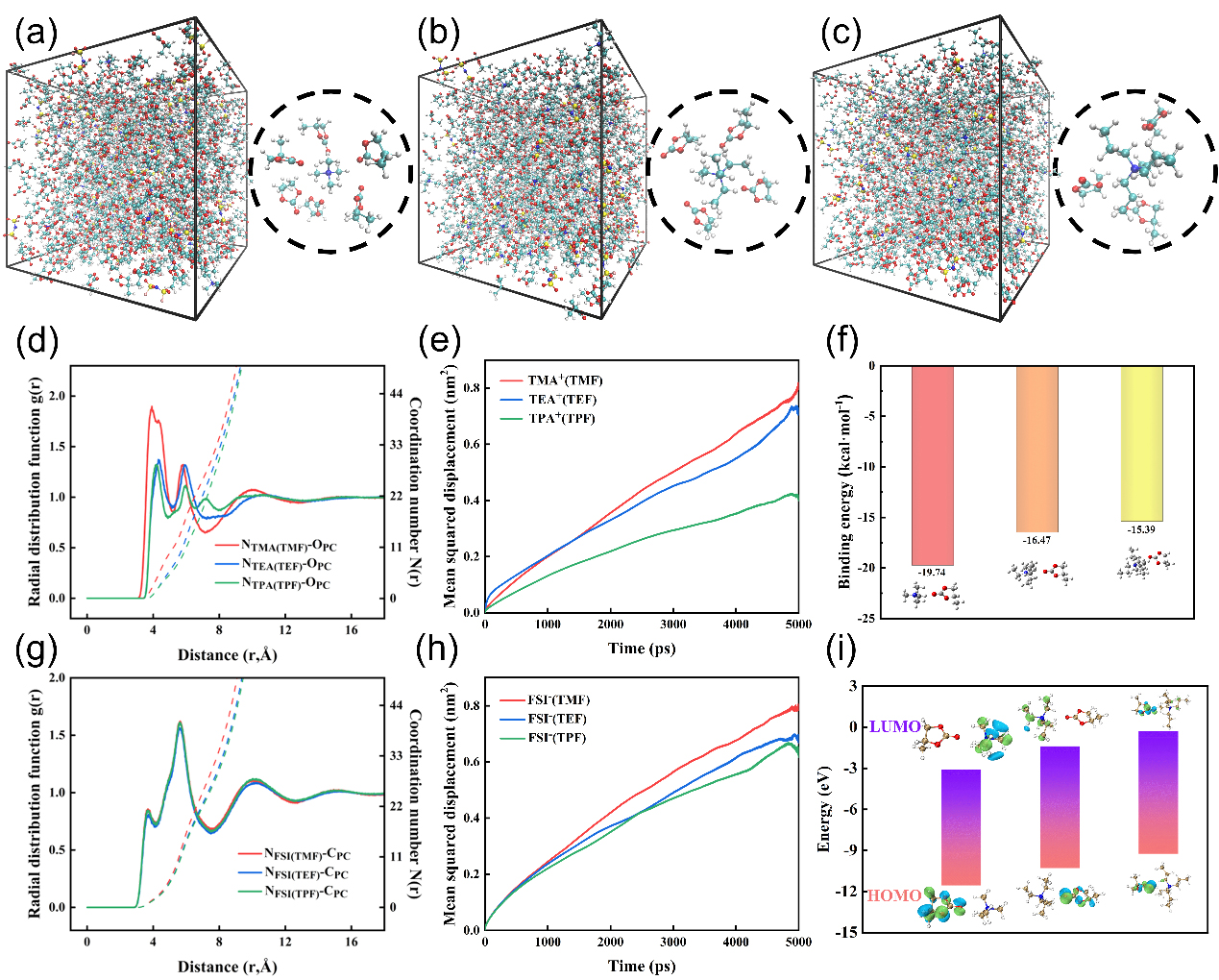

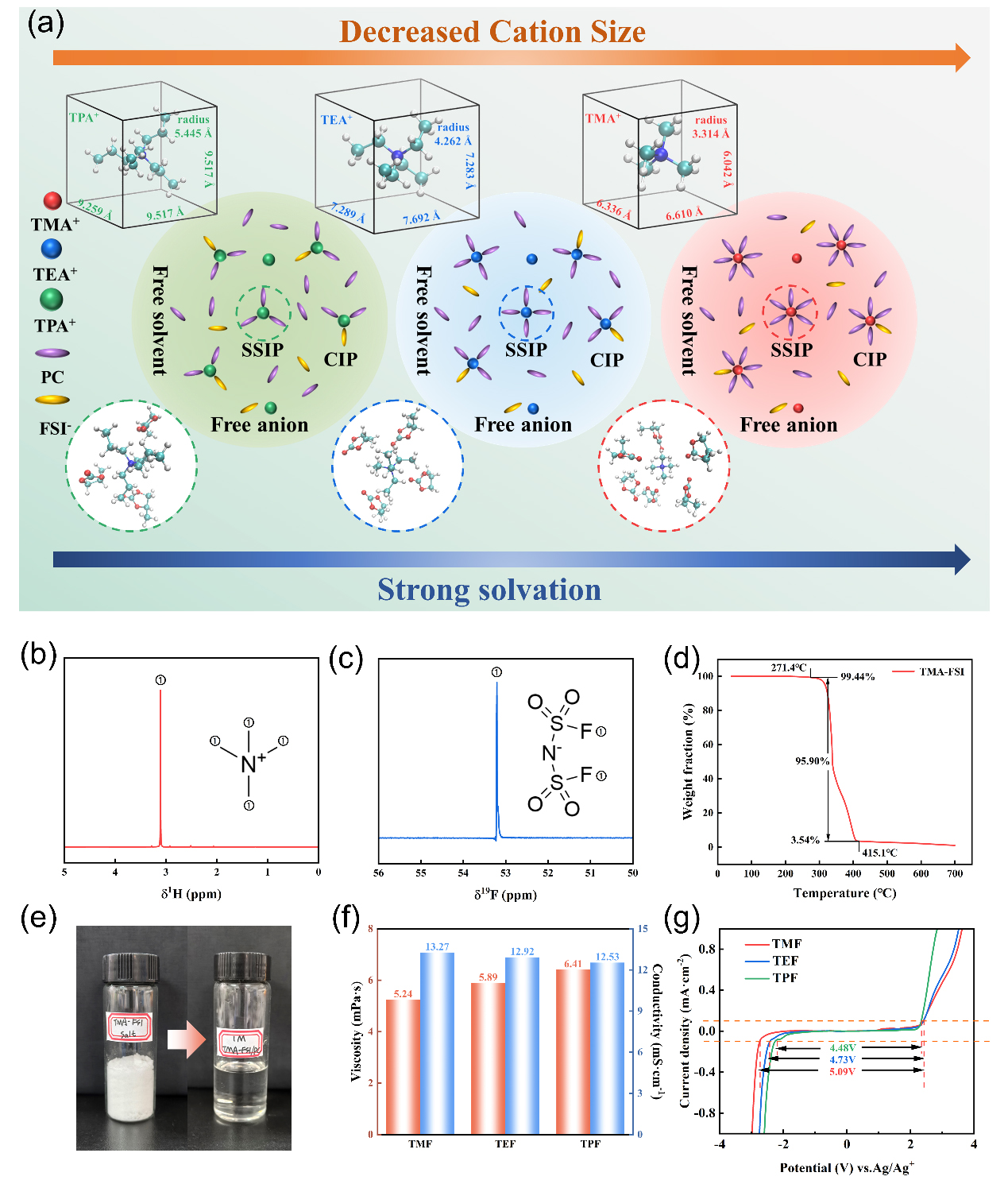

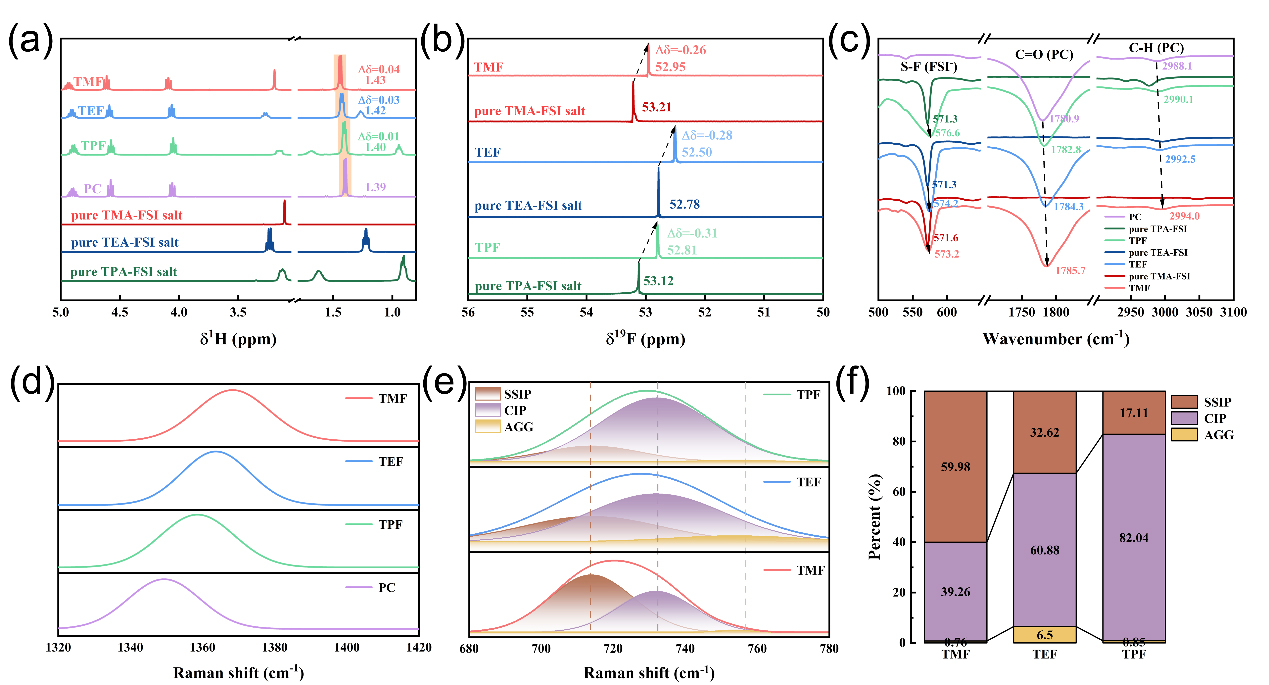

超级电容器虽然具有高功率密度和长循环寿命等优点，但其低工作电压和低能量密度的缺点，极大限制了其在规模储能等领域中的应用。本文合成了一种新型电解质盐四甲基铵双氟磺酰亚胺盐（TMA-FSI），其在碳酸丙烯酯作溶剂的电解液中，表现出较宽的极化电位窗口。通过核磁共振谱、拉曼光谱表征和分子动力学模拟计算，发现TMA⁺尺寸小的性质使其拥有与溶剂分子更高的结合能，强溶剂化作用使TMA⁺能够吸引更多的碳酸丙烯酯分子形成溶剂化壳层，抑制碳酸丙烯酯分子在负极侧分解，从而拓宽电解液在负极侧的电化学稳定性窗口和耐压能力。在使用TMF电解质在3.0 V下电流密度为2 A·g^-1进行10000次循环后电容器的容量保持率仍有96.66%，验证了强溶剂化体系的高效动力学特性。

关键词: 超级电容器, 电解液, 溶剂化, 小尺寸, 高电压

Abstract:

Supercapacitors (SCs) have attracted much attention in the field of energy storage due to their high power density and long cycle life. However, their relatively low energy density limits their application in a wider range of fields. Methods to increase energy density include enhancing specific capacitance and extending operating voltage window. Herein, we report a novel electrolyte salt, tetramethylammonium bis(fluorosulfonyl)imide (TMA-FSI), the resulting electrolyte formed with propylene carbonate (PC), designated as TMF, exhibited a wide electrochemical stability window (ESW) of 5.09 V. On the one hand, we found that the small size of TMA⁺ enables it to enter the pores more fully during charging and discharging, thereby increasing the specific capacitance. On the other hand, the strong solvation of TMA⁺ and PC inhibited the decomposition of PC, thereby broadening the ESW. After 10,000 cycles at a current density of 2 A·g^-1 and a voltage of 3.0 V using the TMF electrolyte, the capacity retention rate of the SCs was still 96.66%, verifying the efficient kinetic characteristics of the strong solvation system.

Key words: Electrolyte, Solvation, Small-sized cation, High voltage, supercapacitor

霍桐, 刘盼, 陈浩, 张鹏, 陈振磊, 孙国富, 时志强, 王静. 超级电容器用强溶剂化及小尺寸离子电解液的设计与应用[J]. 电化学（中英文）, 2026, 32(9): 2604271.

Tong Huo, Pan Liu, Hao Chen, Peng Zhang, Zhen-Lei Chen, Guo-Fu Sun, Zhi-Qiang Shi, Jing Wang. Engineering Small-Sized Cations with Strong Solvation for High-Voltage Supercapacitors[J]. Journal of Electrochemistry, 2026, 32(9): 2604271.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://electrochem.xmu.edu.cn/CN/10.61558/2993-074X.3621

https://electrochem.xmu.edu.cn/CN/Y2026/V32/I9/2604271

图/表 5

参考文献 41

[1]	Wang Q, Yan J, Fan Z J. Carbon materials for high volumetric performance supercapacitors: Design, progress, challenges and Opportunities[J]. Energy Environ. Sci., 2016, 9(3): 729-762. https://doi.org/10.1039/C5EE03109E. doi: 10.1039/C5EE03109E URL
[2]	Shinde P A, Abbas Q, Chodankar N R, Ariga K, Abdelkareem M A, Olabi A G. Strengths, weaknesses, opportunities, and threats (SWOT) analysis of supercapacitors: A review[J]. J. Energy Chem., 2023, 79: 611-638. https://doi.org/10.1016/j.jechem.2022.12.030. doi: 10.1016/j.jechem.2022.12.030 URL
[3]	Lim J M, Jang Y S, Van T, Nguyen H, Kim J S, Yoon Y, Park B J, Seo D H, Lee K K, Han Z J, Ostrikov K, Doo S G. Advances in high-voltage supercapacitors for energy storage systems: Materials and electrolyte tailoring to Implementation[J]. Nanoscale Adv., 2023, 5(3): 615-626. https://doi.org/10.1039/D2NA00863G. doi: 10.1039/d2na00863g URL pmid: 36756532
[4]	Sun L, Zhuo K L, Chen Y J, Du Q Z, Zhang S J, Wang J J. Ionic liquid-based redox active electrolytes for supercapacitors[J]. Adv. Funct. Mater., 2022, 32(27): 2203611. https://doi.org/10.1002/adfm.202203611. doi: 10.1002/adfm.v32.27 URL
[5]	Miller J R, Simon P. Electrochemical capacitors for energy management[J]. Science, 2008, 321(5889): 651-652. https://doi.org/10.1126/science.1158736. doi: 10.1126/science.1158736 URL pmid: 18669852
[6]	Chen X L, Paul R, Dai L M. Carbon-based supercapacitors for efficient energy storage[J]. Natl. Sci. Rev., 2017, 4(3): 453-489. https://doi.org/10.1093/nsr/nwx009. doi: 10.1093/nsr/nwx009 URL
[7]	Zhai Z Z, Zhang L H, Du T M, Ren B, Xu Y L, Wang S S, Miao J F, Liu Z F. A review of carbon materials for supercapacitors[J]. Mater. Des., 2022, 221: 111017. https://doi.org/10.1016/j.matdes.2022.111017. doi: 10.1016/j.matdes.2022.111017 URL
[8]	Lv T, Liu M X, Zhu D Z, Gan L H, Chen T. Nanocarbon-based materials for flexible all-solid-state supercapacitors[J]. Adv. Mater., 2018, 30(17): 1705489. https://doi.org/10.1002/adma.201705489. doi: 10.1002/adma.v30.17 URL
[9]	Zhu Q C, Zhao D Y, Cheng M Y, Zhou J Q, Owusu K A, Mai L, Yu Y. A new view of supercapacitors: integrated supercapacitors[J]. Adv. Energy Mater., 2019, 9(36): 1901081. https://doi.org/10.1002/aenm.201901081. doi: 10.1002/aenm.v9.36 URL
[10]	Demir B, Searles D. Investigation of the ionic liquid graphene electric double layer in supercapacitors using constant potential simulations[J]. Nanomaterials, 2020, 10(11): 2181. https://doi.org/10.3390/nano10112181.
[11]	Bhat T S, Patil P S, Rakhi R B. Recent trends in electrolytes for supercapacitors[J]. J. Energy Storage, 2022, 50: 104222. https://doi.org/10.1016/j.est.2022.104222. doi: 10.1016/j.est.2022.104222 URL
[12]	Wu J Z. Understanding the electric double-layer structure, capacitance, and charging dynamics[J]. Chem. Rev., 2022, 122(12): 10821-10859. https://doi.org/10.1021/acs.chemrev.2c00097. doi: 10.1021/acs.chemrev.2c00097 URL pmid: 35594506
[13]	Kierzek K, Gryglewicz G. Activated carbons and their evaluation in electric double layer capacitors[J]. Molecules, 2020, 25(18): 4255. https://doi.org/10.3390/molecules25184255. doi: 10.3390/molecules25184255 URL
[14]	Ge K K, Shao H, Lin Z F, Taberna P L, Simon P. Advanced characterization of confined electrochemical interfaces in electrochemical capacitors[J]. Nat. Nanotechnol, 2025, 20(2): 196-208. https://doi.org/10.1038/s41565-024-01821-z. doi: 10.1038/s41565-024-01821-z URL pmid: 39639178
[15]	Wei L, Yushin G. Nanostructured activated carbons from natural precursors for electrical double layer capacitors[J]. Nano Energy, 2012, 1(4): 552-565. https://doi.org/10.1016/j.nanoen.2012.05.002. doi: 10.1016/j.nanoen.2012.05.002 URL
[16]	Boujibar O, Ghosh A, Achak O, Chafik T, Ghamouss F. A high energy storage supercapacitor based on nanoporous activated carbon electrode made from argan shells with excellent ion transport in aqueous and non-aqueous electrolytes[J]. J. Energy Storage, 2019, 26: 100958. https://doi.org/10.1016/j.est.2019.100958. doi: 10.1016/j.est.2019.100958 URL
[17]	Park S, Kim K. Tetramethylammonium tetrafluoroborate: The smallest quaternary ammonium tetrafluoroborate salt for use in electrochemical double layer Capacitors[J]. J. Power Sources, 2017, 338: 129-135. https://doi.org/10.1016/j.jpowsour.2016.10.080. doi: 10.1016/j.jpowsour.2016.10.080 URL
[18]	Barbieri O, Hahn M, Herzog A, Kötz R. Capacitance limits of high surface area activated carbons for double layer Capacitors[J]. Carbon, 2005, 43(6): 1303-1310. https://doi.org/10.1016/j.carbon.2005.01.001. doi: 10.1016/j.carbon.2005.01.001 URL
[19]	Liu F D, Yang S B, Zhang X, Tang S W, Wei S. Insight into the desolvation of organic electrolyte cations with propylene carbonate as a solvent in flat pores: A first-principles calculation[J]. Coatings, 2023, 13(8): 1384. https://doi.org/10.3390/coatings13081384. doi: 10.3390/coatings13081384 URL
[20]	Patil I M, Burton T, Ladam A, Fantini S, Balducci A. Electrochemical performance of electrochemical double layer capacitors containing pyrrolidinium and ammonium fluorosulfonyl imide in acetonitrile-based electrolytes[J]. Electrochim. Acta, 2025, 525: 146133. https://doi.org/10.1016/j.electacta.2025.146133. doi: 10.1016/j.electacta.2025.146133 URL
[21]	Koh A R, Hwang B, Chul Roh K, Kim K. The effect of the ionic size of small quaternary ammonium BF4 salts on electrochemical double layer capacitors[J]. Phys. Chem. Chem. Phys., 2014, 16(29): 15146. https://doi.org/10.1039/c4cp00949e. doi: 10.1039/c4cp00949e URL
[22]	Nguyen H V T, Kwak K, Lee K K. 1,1-Dimethylpyrrolidinium tetrafluoroborate as novel salt for high-voltage electric double-layer capacitors[J]. Electrochim. Acta, 2019, 299: 98-106. https://doi.org/10.1016/j.electacta.2018.12.155. doi: 10.1016/j.electacta.2018.12.155 URL
[23]	Jänes A, Kurig H, Romann T, Lust E. Novel doubly charged cation based electrolytes for Non-aqueous supercapacitors[J]. Electrochem. Commun., 2010, 12(4): 535-539. https://doi.org/10.1016/j.elecom.2010.01.037. doi: 10.1016/j.elecom.2010.01.037 URL
[24]	DeRosa D, Higashiya S, Schulz A, Rane-Fondacaro M, Haldar P. High performance spiro ammonium electrolyte for electric double layer capacitors[J]. J. Power Sources, 2017, 360: 41-47. https://doi.org/10.1016/j.jpowsour.2017.05.096. doi: 10.1016/j.jpowsour.2017.05.096 URL
[25]	Huang C, Zhu D J, Zhao X, Hao Y S, Yang Y J, Qian Y, Chang G, Tang Q L, Hu A P, Chen X H. High‐entropy‐inspired multicomponent electrical double layer structure design for stable zinc metal anodes[J]. Angew. Chem. Int. Ed., 2024, 63(46): e202411427. https://doi.org/10.1002/anie.202411427. doi: 10.1002/anie.v63.46 URL
[26]	Cao X S, Xu W, Zheng D Z, Wang F X, Wang Y, Shi X, Lu X H. Weak solvation effect induced optimal interfacial chemistry enables highly durable Zn anodes for aqueous Zn‐ion batteries[J]. Angew. Chem. Int. Ed., 2024, 63(6): e202317302. https://doi.org/10.1002/anie.202317302. doi: 10.1002/anie.v63.6 URL
[27]	Zeng Z Q, Murugesan V, Han K S, Jiang X Y, Cao Y L, Xiao L F, Ai X P, Yang H X, Zhang J G, Sushko M L, Liu J. Non-flammable electrolytes with high salt-to-solvent ratios for Li-ion and Li-metal batteries[J]. Nat. Energy, 2018, 3(8): 674-681. https://doi.org/10.1038/s41560-018-0196-y. doi: 10.1038/s41560-018-0196-y URL
[28]	Peng X D, Wang T S, Liu B, Li Y J, Zhao T S. A solvent molecule reconstruction strategy enabling a high-voltage ether-based electrolyte[J]. Energy Environ. Sci., 2022, 15(12): 5350-5361. https://doi.org/10.1039/D2EE02344J. doi: 10.1039/D2EE02344J URL
[29]	Urbain F, Smirnov V, Becker J P, Lambertz A, Yang F, Ziegler J, Kaiser B, Jaegermann W, Rau U, Finger F. Multijunction Si photocathodes with tunable photovoltages from 2.0 V to 2.8 V for light induced water Splitting[J]. Energy Environ. Sci., 2016, 9(1): 145-154. https://doi.org/10.1039/C5EE02393A. doi: 10.1039/C5EE02393A URL
[30]	Suo L M, Borodin O, Gao T, Olguin M, Ho J, Fan X L, Luo C, Wang C S, Xu K. “Water-in-salt” electrolyte enables high-voltage aqueous lithium-ion chemistries[J]. Science, 2015, 350(6263): 938-943. https://doi.org/10.1126/science.aab1595. doi: 10.1126/science.aab1595 URL
[31]	Liang P, Li J H, Dong Y, Wang Z D, Ding G Y, Liu K M, Xue L L, Cheng F Y. Modulating interfacial solvation via ion dipole interactions for low‐temperature and high‐voltage lithium batteries[J]. Angew. Chem. Int. Ed., 2025, 64(4): e202415853. https://doi.org/10.1002/anie.202415853. doi: 10.1002/anie.v64.4 URL
[32]	Chen Z L, Zhang P, Liu P, Huo T, Sun G F, Li N K, Xu D F, Shi Z Q, Feng G, Zhang Q Y. Weakly solvated anion optimization for electrode/electrolyte interface construction in high-voltage Supercapacitors[J]. Chem. Eng. J., 2025, 518: 164115. https://doi.org/10.1016/j.cej.2025.164115. doi: 10.1016/j.cej.2025.164115 URL
[33]	Yuan S, Cao S K, Chen X, Wei J Q, Lv Z S, Xia H R, Chen L X, Ng R B F, Tan F L, Li H C, Loh X J, Li S Z, Feng X, Chen X D. Anion-modulated solvation sheath and electric double layer enabling lithium-ion storage from -60 to 80 °C[J]. J. Am. Chem. Soc., 2025, 147(5): 4089-4099. https://doi.org/10.1021/jacs.4c13011. doi: 10.1021/jacs.4c13011 URL
[34]	Hess B, Kutzner C, Van Der Spoel D, Lindahl E. GROMACS 4: Algorithms for highly efficient, load-balanced, and scalable molecular simulation[J]. J. Chem. Theory Comput., 2008, 4(3): 435-447. https://doi.org/10.1021/ct700301q. doi: 10.1021/ct700301q URL
[35]	Martínez L, Andrade R, Birgin E G, Martínez J M. PACKMOL : A package for building initial configurations for molecular dynamics Simulations[J]. J. Comput. Chem., 2009, 30(13): 2157-2164. https://doi.org/10.1002/jcc.21224. doi: 10.1002/jcc.21224 URL pmid: 19229944
[36]	Lu T, Chen F W. Multiwfn: A multifunctional wavefunction analyzer[J]. J. Comput. Chem., 2012, 33(5): 580-592. https://doi.org/10.1002/jcc.22885. doi: 10.1002/jcc.22885 URL pmid: 22162017
[37]	Lu T. A comprehensive electron wavefunction analysis toolbox for chemists, Multiwfn[J]. J. Chem. Phys., 2024, 161(8): 082503. https://doi.org/10.1063/5.0216272. doi: 10.1063/5.0216272 URL
[38]	Nosé S. A molecular dynamics method for simulations in the canonical Ensemble[J]. Mol. Phys., 1984, 52(2): 255-268. https://doi.org/10.1080/00268978400101201. doi: 10.1080/00268978400101201 URL
[39]	Darden T, York D, Pedersen L. Particle mesh Ewald: An N⋅log(N) method for Ewald sums in large systems[J]. J. Chem. Phys., 1993, 98(12): 10089-10092. https://doi.org/10.1063/1.464397.
[40]	Li Q, Liu G, Chen Y H, Wang J, Kumar P, Xie H L, Wahyudi W, Yu H, Wang Z X, Ma Z, Ming J. Electrolyte solvent-ion configuration deciphering lithium plating/stripping chemistry for high-performance lithium metal battery[J]. Adv. Funct. Mater., 2025, 35(22): 2420327. https://doi.org/10.1002/adfm.202420327. doi: 10.1002/adfm.v35.22 URL
[41]	Zhang P, Ren Q J, Chen Z L, He L, Liu P, Wang Y J, Feng G, Shi Z Q. Modulating solvation and electric double-layer configuration for high-voltage supercapacitors[J]. Energy Storage Mater., 2025, 78: 104267. https://doi.org/10.1016/j.ensm.2025.104267.
