锰-氮-碳纳米笼限域的高密度铂纳米颗粒用于高耐久重载质子交换膜燃料电池

doi:10.61558/2993-074X.3618

电化学（中英文） ›› 2026, Vol. 32 ›› Issue (9): 2603242. doi: 10.61558/2993-074X.3618

锰-氮-碳纳米笼限域的高密度铂纳米颗粒用于高耐久重载质子交换膜燃料电池

赵磊^a^,^b^,^#, 曹振明^c^,^#, 左珈瑜^a, 杨明亮^a, 乔红艳^a, 陈俊松^a, 吴睿^a^,^*()()

^a 电子科技大学材料与能源学院，四川成都 611731
^b 成都工业学院材料与环境工程学院，四川成都 611730
^c 中自科技股份有限公司氢能研发中心，四川成都 611731

收稿日期:2026-03-24 修回日期:2026-05-23 接受日期:2026-06-11 发布日期:2026-06-11 出版日期:2026-09-28

Dense Platinum Nanoparticles Confined in Mn-N-C Nanocages for Robust Heavy-Duty PEMFCs

Lei Zhao^a^,^b^,^#, Zhen-Min Cao^c^,^#, Jia-Yu Zuo^a, Ming-Liang Yang^a, Hong-Yan Qiao^a, Jun Song Chen^a, Rui Wu^a^,^*()()

^a School of Materials and Energy, University of Electronic Science and Technology of China, Chengdu 611731, P.R. China
^b School of Materials and Environmental Engineering, Chengdu Technological University, Chengdu 611730, P.R. China
^c Hydrogen Energy R&D Center, SINOTECH Company Limited, Chengdu 611731, P.R. China

Received:2026-03-24 Revised:2026-05-23 Accepted:2026-06-11 Online:2026-06-11 Published:2026-09-28
Contact: *Rui Wu, E-mail: ruiwu0904@uestc.edu.cn
About author:Author Contributions
Lei Zhao: Conceptualization, Methodology, Investigation, Writing. Zhen-Min Cao: experiment, data collection. Jia-Yu Zuo: data collection, validation, Data curation. Ming-Liang Yang: Investigation, Visualization. Hong-Yan Qiao: experiment. Jun Song Chen: Supervision, funding acquisition. Rui Wu: Conceptualization, Funding acquisition, Project administration, Resources, Supervision, Writing - review & editing. All authors have read and approved the final version of the manuscript.
^#Lei Zhao and Zhen-Min Cao contributed equally to this work.

1. 2603242SI.pdf(8719KB)

摘要/Abstract

摘要：

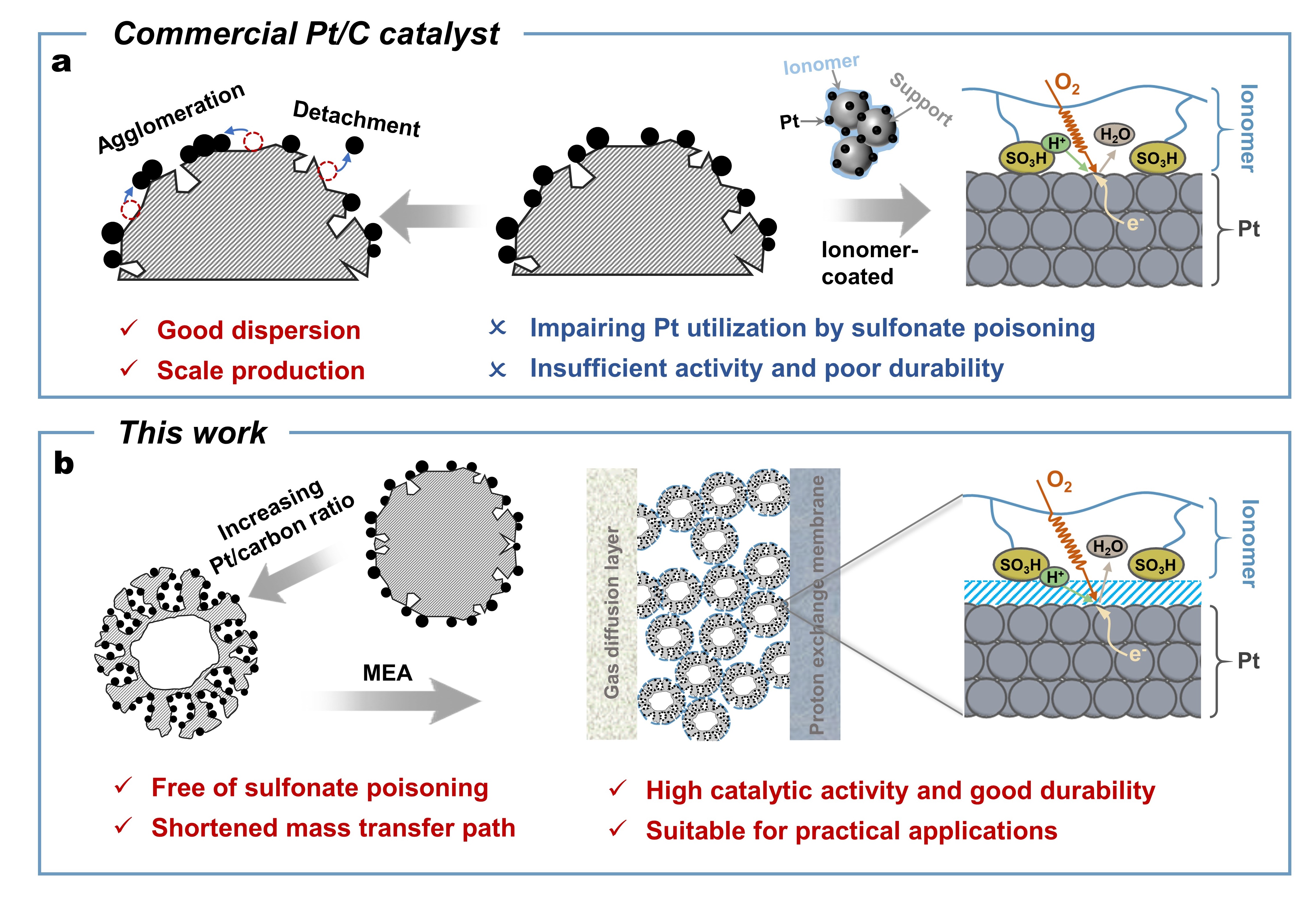

高负载铂（Pt）阴极催化层是实现重载型质子交换膜燃料电池高性能运行的关键，但其长期面临离聚物磺酸基团毒化与Pt纳米颗粒稳定性难以兼顾的矛盾。本文提出一种空间限域策略，通过将高含量Pt纳米颗粒（约51.8 wt%）封装于锰-氮-碳（Mn-N-C）纳米笼中，构筑了具有离聚物屏蔽微环境的Pt-MnNC催化剂。该介孔笼状结构可有效阻隔离聚物进入其内部，显著降低了磺酸基团对Pt活性位点的吸附毒化；同时，Mn-N_x位点与Pt之间的强金属-载体相互作用能够稳定锚定Pt纳米颗粒，抑制其迁移与团聚。在5 × 5 cm²膜电极测试中，Pt-MnNC催化剂在2.0 A·cm^-2电流密度下实现1.26 W·cm^-2的峰值功率密度。经过30000次加速老化测试后，其质量活性仅下降20.8%，显著优于商业Pt/C催化剂（衰减61.6%）。研究结果表明，空间限域构筑的离聚物屏蔽微环境能够有效缓解离聚物磺酸基团对Pt的毒化，并协同增强Pt纳米颗粒稳定性，为高功率密度、长寿命重载型质子交换膜燃料电池阴极催化剂的设计提供了新的思路。

关键词: 质子交换膜燃料电池, 介孔碳纳米笼, 磺酸基团毒化, 高载量

Abstract:

High-loading Pt cathodes are essential for heavy-duty proton exchange membrane fuel cells but suffer from a critical trade-off between ionomer sulfonate poisoning and nanoparticles' instability. Herein, we report a spatial confinement strategy to encapsulate dense Pt nanoparticles (~51.8 wt%) within Mn/N-co-doped mesoporous carbon nanocages (denoted as Pt-MnNC). This architecture excludes bulky ionomers to create an ionomer-shielded environment against sulfonate poisoning, while Mn-N_x-mediated strong metal-support interactions anchor the Pt nanoparticles to prevent agglomeration and further boost durability. In the 5 × 5 cm² membrane electrode assembly (MEA) tests, the Pt-MnNC catalyst delivered an exceptional peak power density of 1.26 W·cm^-2 at 2.0 A·cm^-2. Notably, it exhibited superior durability with only a 20.8% mass activity loss after 30,000 cycles, significantly outperforming commercial Pt/C, which suffered a 61.6% loss. This work provides a robust pathway to decouple ionomer poisoning from catalyst loading, advancing the development of high-power, durable heavy-duty fuel cells.

Key words: Proton exchange membrane fuel cell, Mesoporous carbon nanocage, Sulfonate poisoning, High-loading

赵磊, 曹振明, 左珈瑜, 杨明亮, 乔红艳, 陈俊松, 吴睿. 锰-氮-碳纳米笼限域的高密度铂纳米颗粒用于高耐久重载质子交换膜燃料电池[J]. 电化学（中英文）, 2026, 32(9): 2603242.

Lei Zhao, Zhen-Min Cao, Jia-Yu Zuo, Ming-Liang Yang, Hong-Yan Qiao, Jun Song Chen, Rui Wu. Dense Platinum Nanoparticles Confined in Mn-N-C Nanocages for Robust Heavy-Duty PEMFCs[J]. Journal of Electrochemistry, 2026, 32(9): 2603242.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://electrochem.xmu.edu.cn/CN/10.61558/2993-074X.3618

https://electrochem.xmu.edu.cn/CN/Y2026/V32/I9/2603242

图/表 5

参考文献 52

[1]	Bai Y M, Sang C C, Luo Z W, Huang R X, Zhang Z P, Yin Y N, Lu J P, Xu H, Huang YH, Gao W T, Liu X C, Chidziva S, Mao Z, Wang C. Simple, rapid, scalable confined synthesis of ultrafine Pt nanoclusters for fuel cells[J]. J. Energy Chem., 2026, 115: 421-428. http://doi.org/10.1016/j.jechem.2025.11.042. doi: 10.1016/j.jechem.2025.11.042 URL
[2]	Jiao K, Xuan J, Du Q, Bao Z M, Xie B, Wang B W, Zhao Y, Fan L H, Wang H Z, Hou Z J, Huo S, Brandon N P, Yin Y, Guiver M D. Designing the next generation of proton-exchange membrane fuel cells[J]. Nature, 2021, 595(7867): 361-369. http://doi.org/10.1038/s41586-021-03482-7. doi: 10.1038/s41586-021-03482-7 URL
[3]	Si J L, Zhang S, Zhao S, Li J, Feng X, Wang B. Covalent organic frameworks for proton exchange membrane fuel cells[J]. Energy Mater. Adv., 2025, 6: 0334. http://doi.org/10.34133/energymatadv.0334. doi: 10.34133/energymatadv.0334 URL
[4]	Zhang C H, Hua H Y, Yang J H, Zhang Q, Yang C, Wang D L. Ordering degree regulation of Pt₂NiCo intermetallics for efficient oxygen reduction reaction[J]. J. Electrochem., 2025, 31(4): 2411281. http://doi.org/10.61558/2993-074x.3519.
[5]	Xu S, Fu X X, Xin L, Huang F X, Sheng T, Hua L. A review on nano-micro structure design of fuel cells for efficient heat and mass transport[J]. DeCarbon, 2025, 10: 100132. http://doi.org/10.1016/j.decarb.2025.100132. doi: 10.1016/j.decarb.2025.100132 URL
[6]	Li C Y, Liu D D, Qin P, Peng G G, Shui J L, Shang L, Zhang T R. Ultrafine PtFeMo intermetallic compound nanowires for efficient oxygen reduction reaction in proton exchange membrane fuel cells[J]. Nano Energy, 2024, 129: 110079. https://doi.org/10.1016/j.nanoen.2024.110079. doi: 10.1016/j.nanoen.2024.110079 URL
[7]	Du Y, Chen W X, Shi Z X, Zhou L N, Pan S, Xu X N, Liu Y F, Wang L Q, Xiong D B, Liu Y S, Guo X D, Dou S X, Xiao Y. In situ alloying strategy constructed Fe₃Co-N-C electrocatalysts with designed 1D/3D hierarchical networks for rechargeable zinc-air battery[J]. InfoMat, 2025, 7(9): e70032. http://doi.org/10.1002/inf2.70032. doi: 10.1002/inf2.v7.9 URL
[8]	He P P, Shi J H, Li X Y, Liu M J, Fang Z, He J, Li Z J, Peng X S, He Q G. A CNT intercalated Co porphyrin-based metal organic framework catalyst for oxygen reduction reaction[J]. J. Electrochem., 2025, 31(1): 2405241. http://doi.org/10.61558/2993-074x.3502.
[9]	Wang X M, Hou T L, Ba X, Wang R X, Xu H P, Wang S R, Kong F P. Ultra-low Pt core-shell electrocatalysts: Noble metal core from irregular binarity to structure-shape-selectivity multielement[J]. J. Energy Chem., 2026, 115: 298-316. http://doi.org/10.1016/j.jechem.2025.11.023. doi: 10.1016/j.jechem.2025.11.023 URL
[10]	Yang G G, Cai H R, Xu Z R, Ji C C, Yang Z M, Zhang S L, Zhang Y, Wang B B, Mei B, Liang C, Yang S C. Spin polarization regulation of Fe-N₄ by Fe₃ atomic clusters for highly active oxygen reduction reaction[J]. Sci. Bull., 2025, 70(11): 1793-1803. https://doi.org/10.1016/j.scib.2025.02.041. doi: 10.1016/j.scib.2025.02.041 URL
[11]	Deng H, Liu J, Hou Z J. Understanding the morphology and mass transport resistance of mesoporous carbon-supported PEMFC based on modeling analysis[J]. J. Electrochem., 2025, 31(5): 2514001. http://doi.org/10.61558/2993-074x.3546. doi: 10.61558/2993-074X.3546 URL
[12]	Gao L, Sun T L, Chen X L, Yang Z L, Li M F, Lai W C, Zhang W H, Yuan Q, Huang H W. Identifying the distinct roles of dual dopants in stabilizing the platinum-nickel nanowire catalyst for durable fuel cell[J]. Nat. Commun., 2024, 15(1): 508. http://doi.org/10.1038/s41467-024-44788-0. doi: 10.1038/s41467-024-44788-0 URL pmid: 38218946
[13]	Ke F S, Cheng Q Q, Tong D G, Liu D Y, Xu X, Chen Y B, Zou L L, Yang H. Mesoporous confined Pt-based intermetallic compound with wrinkled carbon to enhance the performance towards oxygen reduction reaction for proton exchange membrane fuel cells[J]. J. Power Sources, 2024, 603: 234357. http://doi.org/10.1016/j.jpowsour.2024.234357. doi: 10.1016/j.jpowsour.2024.234357 URL
[14]	Pan Y Y, Chen Y H, Li Y Z, Liu M Y, Yao L P, Zhao H Y, Zhao X Y, Yue Z Y, Gui S J, Chen Y B, Cheng Q Q, Yang H. Entropy‐increase assisted anti‐sintering for synthesis of high‐loaded Pt intermetallic compounds as electrocatalysts in PEMFCs[J]. Adv. Funct. Mater., 2025, 35(44): 2503628. http://doi.org/10.1002/adfm.202503628. doi: 10.1002/adfm.v35.44 URL
[15]	Zhang X, Wang Z, Lawan A M, Wang J H, Hsieh C Y, Duan C, Pang C H, Chu P K, Yu X F, Zhao H. Data‐driven structural descriptor for predicting platinum‐based alloys as oxygen reduction electrocatalysts[J]. InfoMat, 2023, 5(6): e12406. http://doi.org/10.1002/inf2.12406. doi: 10.1002/inf2.v5.6 URL
[16]	Chen F D, Guo L, Long D J, Luo S J, Song Y, Wang M, Li L, Chen S G, Wei Z D. Overcoming the limitation of ionomers on mass transport and Pt activity to achieve high-performing membrane electrode assembly[J]. J. Am. Chem. Soc., 2024, 146(44): 30388-30396. http://doi.org/10.1021/jacs.4c10742. doi: 10.1021/jacs.4c10742 URL
[17]	Cheng Q Q, Yang S, Fu C H, Zou L L, Zou Z Q, Jiang Z, Zhang J L, Yang H. High-loaded sub-6 nm Pt1Co1 intermetallic compounds with highly efficient performance expression in PEMFCs[J]. Energy Environ. Sci., 2022, 15(1): 278-286. http://doi.org/10.1039/d1ee02530a. doi: 10.1039/D1EE02530A URL
[18]	Wang M, Zhang S L, Wang H, Sun E, Liu Y R, Wu M B, Liu D J, Li Z T. Regulating catalyst and ionomer interactions to promote oxygen transport in fuel cells[J]. Appl. Catal. B Environ. Energy, 2025, 365: 124894. http://doi.org/10.1016/j.apcatb.2024.124894.
[19]	Yoo T Y, Lee J, Kim S, Her M, Kim S Y, Lee Y H, Shin H, Jeong H, Sinha A K, Cho S P, Sung Y E, Hyeon T. Scalable production of an intermetallic Pt-Co electrocatalyst for high-power proton-exchange-membrane fuel cells[J]. Energy Environ. Sci., 2023, 16(3): 1146-1154. http://doi.org/10.1039/d2ee04211h. doi: 10.1039/D2EE04211H URL
[20]	Peles Strahl L, Persky Y, Elbaz L. Design of advanced aerogel structures for oxygen reduction reaction electrocatalysis[J]. SusMat, 2023, 3(1): 44-57. http://doi.org/10.1002/sus2.104. doi: 10.1002/sus2.v3.1 URL
[21]	Yoo J M, Shin H, Chung D Y, Sung Y E. Carbon shell on active nanocatalyst for stable electrocatalysis[J]. Acc. Chem. Res., 2022, 55(9): 1278-1289. http://doi.org/10.1021/acs.accounts.1c00727. doi: 10.1021/acs.accounts.1c00727 URL
[22]	Fan J T, Chen M, Zhao Z L, Zhang Z, Ye S Y, Xu S Y, Wang H J, Li H. Bridging the gap between highly active oxygen reduction reaction catalysts and effective catalyst layers for proton exchange membrane fuel cells[J]. Nat. Energy, 2021, 6(5): 475-486. http://doi.org/10.1038/s41560-021-00824-7. doi: 10.1038/s41560-021-00824-7 URL
[23]	Kodama K, Nagai T, Kuwaki A, Jinnouchi R, Morimoto Y. Challenges in applying highly active Pt-based nanostructured catalysts for oxygen reduction reactions to fuel cell vehicles[J]. Nat. Nanotechnol., 2021, 16(2): 140-147. http://doi.org/10.1038/s41565-020-00824-w. doi: 10.1038/s41565-020-00824-w URL pmid: 33479539
[24]	Chen F D, Chen S G, Wang A X, Wang M, Guo L, Wei Z D. Blocking the sulfonate group in Nafion to unlock platinum’s activity in membrane electrode assemblies[J]. Nat. Catal., 2023, 6(5): 392-401. http://doi.org/10.1038/s41929-023-00949-w. doi: 10.1038/s41929-023-00949-w URL
[25]	Tang M H, Yan H L, Zhang X M, Zheng Z Y, Chen S L. Materials strategies tackling interfacial issues in catalyst layers of proton exchange membrane fuel cells[J]. Adv. Mater., 2025, 37(31): e2306387. http://doi.org/10.1002/adma.202306387.
[26]	Jinnouchi R, Kudo K, Kodama K, Kitano N, Suzuki T, Minami S, Shinozaki K, Hasegawa N, Shinohara A. The role of oxygen-permeable ionomer for polymer electrolyte fuel cells[J]. Nat. Commun., 2021, 12(1): 4956. http://doi.org/10.1038/s41467-021-25301-3. doi: 10.1038/s41467-021-25301-3 URL pmid: 34400643
[27]	Tang M H, Zhang S M, Chen S L. Pt utilization in proton exchange membrane fuel cells: Structure impacting factors and mechanistic insights[J]. Chem. Soc. Rev., 2022, 51(4): 1529-1546. http://doi.org/10.1039/d1cs00981h. doi: 10.1039/d1cs00981h URL pmid: 35138316
[28]	Yu Y, Shah M A K Y, Wang H, Cheng X M, Guo L J, Huang J B, Lund P, Zhu B. Synergistic proton and oxygen ion transport in fluorite oxide-ion conductor[J]. Energy Mater. Adv., 2024, 5: 0081. http://doi.org/10.34133/energymatadv.0081. doi: 10.34133/energymatadv.0081 URL
[29]	Tang M H, Yan H L, Zheng Z Y, Zhang H, Yu C W, Liu B, Chen S L. A molecule assembly route to simultaneously detoxify platinum sites and disentangle reactant transport paths in proton exchange membrane fuel cells[J]. J. Am. Chem. Soc., 2025, 147(23): 19931-19940. http://doi.org/10.1021/jacs.5c04479. doi: 10.1021/jacs.5c04479 URL pmid: 40452560
[30]	Wei X Q, Song S J, Cai W W, Kang Y Q, Fang Q, Ling L, Zhao Y J, Wu Z X, Song X K, Xu X T, Osman S M, Song W Y, Asahi T, Yamauchi Y, Zhu C Z. Pt nanoparticle-Mn single-atom pairs for enhanced oxygen reduction[J]. ACS Nano, 2024, 18(5): 4308-4319. http://doi.org/10.1021/acsnano.3c09819. doi: 10.1021/acsnano.3c09819 URL
[31]	Yarlagadda V, Carpenter M K, Moylan T E, Kukreja R S, Koestner R, Gu W, Thompson L, Kongkanand A. Boosting fuel cell performance with accessible carbon mesopores[J]. ACS Energy Lett., 2018, 3(3): 618-621. http://doi.org/10.1021/acsenergylett.8b00186. doi: 10.1021/acsenergylett.8b00186 URL
[32]	Zhao L, Zhu Z Z, Wang J J, Zuo J Y, Chen H Y, Qi X Q, Niu X B, Blackwood D J, Chen J S, Wu R. Unlocking proton exchange membrane fuel cell performance with porous PtCoV alloy catalysts[J]. Adv. Mater., 2025, 37(34): e2502457. http://doi.org/10.1002/adma.202502457.
[33]	Yamaguchi M, Matsunaga T, Amemiya K, Ohira A, Hasegawa N, Shinohara K, Ando M, Yoshida T. Dispersion of rod-like particles of Nafion in salt-free water/1-propanol and water/ethanol solutions[J]. J. Phys. Chem. B, 2014, 118(51): 14922-14928. http://doi.org/10.1021/jp506814m.
[34]	Ramaswamy N, Gu W, Ziegelbauer J M, Kumaraguru S. Carbon support microstructure impact on high current density transport resistances in PEMFC cathode[J]. J. Electrochem. Soc., 2020, 167(6): 064515. http://doi.org/10.1149/1945-7111/ab819c. doi: 10.1149/1945-7111/ab819c URL
[35]	Xu F, Zhang H Y, Ilavsky J, Stanciu L, Ho D, Justice M J, Petrache H I, Xie J. Investigation of a catalyst ink dispersion using both ultra-small-angle X-ray scattering and cryogenic TEM[J]. Langmuir, 2010, 26(24): 19199-19208. http://doi.org/10.1021/la1028228. doi: 10.1021/la1028228 URL pmid: 21090580
[36]	Li J J, Xia W, Tang J, Gao Y, Jiang C, Jia Y N, Chen T, Hou Z F, Qi R J, Jiang D, Asahi T, Xu X T, Wang T, He J P, Yamauchi Y. Metal-organic framework-derived graphene mesh: A robust scaffold for highly exposed Fe-N₄ active sites toward an excellent oxygen reduction catalyst in acid media[J]. J. Am. Chem. Soc., 2022, 144(21): 9280-9291. http://doi.org/10.1021/jacs.2c00719. doi: 10.1021/jacs.2c00719 URL
[37]	Lin Y X, Xia C F, Zhu Z Z, Wang J J, Niu H T, Gong S N, Li Z, Yang N, Song Chen J, Wu R, Xia B Y. Carbon nanocage supported asymmetrically coordinated nickle single-atom for enhanced CO₂ electroreduction in membrane electrode assembly[J]. Angew. Chem. Int. Ed., 2025, 64(2): e202414569. http://doi.org/10.1002/anie.202414569. doi: 10.1002/anie.v64.2 URL
[38]	Li Q Y, Zhao L, Zhu Z Z, Xiong P, Zuo J Y, Chen J S, Li R, Wu R. Engineering atomically dispersed Mn and Fe sites on hollow nitrogen-doped carbon for high-performance Zn-air batteries[J]. J. Colloid Interface Sci., 2025, 682: 460-466. http://doi.org/10.1016/j.jcis.2024.11.208. doi: 10.1016/j.jcis.2024.11.208 URL
[39]	Ott S, Orfanidi A, Schmies H, Anke B, Nong H N, Hubner J, Gernert U, Gliech M, Lerch M, Strasser P. Ionomer distribution control in porous carbon-supported catalyst layers for high-power and low Pt-loaded proton exchange membrane fuel cells[J]. Nat. Mater., 2020, 19(1): 77-85. http://doi.org/10.1038/s41563-019-0487-0. doi: 10.1038/s41563-019-0487-0 URL pmid: 31570820
[40]	Liu L N, Yan F, Li K Y, Zhu C L, Xie Y, Zhang X T, Chen Y J. Ultrasmall FeNi₃N particles with an exposed active (110) surface anchored on nitrogen-doped graphene for multifunctional electrocatalysts[J]. J. Mater. Chem. A, 2019, 7(3): 1083-1091. http://doi.org/10.1039/c8ta10083g. doi: 10.1039/C8TA10083G URL
[41]	Zhang W L, Sun M L, Yin J, Lu K, Schwingenschlögl U, Qiu X Q, Alshareef H N. Accordion‐like carbon with high nitrogen doping for fast and stable K ion storage[J]. Adv. Energy Mater., 2021, 11(41): 2101928. http://doi.org/10.1002/aenm.202101928. doi: 10.1002/aenm.v11.41 URL
[42]	Dong Y D, Wang Y, Xie Z H, Yang S R, Sun S, Xiong Z K, Zhou P, He C S, Lai B. Coordination engineering breaks the inertness of Mn single-atom for ultrafast peracetic acid activation[J]. Sci. Bull., 2026, 71(6): 1369-1379. https://doi.org/10.1016/j.scib.2026.01.055. doi: 10.1016/j.scib.2026.01.055 URL
[43]	Zhan X X, Tong X, Ye H, Gao Z J, Tian J, Zhuang J L, Zhang G X, Sun S H. Atomically dispersed metal site materials for hydrogen energy utilization: Theoretical and experimental study in fuel cells and water electrolysis[J]. DeCarbon, 2025, 7: 100091. http://doi.org/10.1016/j.decarb.2024.100091. doi: 10.1016/j.decarb.2024.100091 URL
[44]	Guo L, Hwang S, Li B Y, Yang F, Wang M Y, Chen M J, Yang X X, Karakalos S G, Cullen D A, Feng Z X, Wang G F, Wu G, Xu H. Promoting atomically dispersed MnN₄ sites via sulfur doping for oxygen reduction: Unveiling intrinsic activity and degradation in fuel cells[J]. ACS Nano, 2021, 15(4): 6886-6899. http://doi.org/10.1021/acsnano.0c10637. doi: 10.1021/acsnano.0c10637 URL
[45]	Ao X, Zhang W, Zhao B, Ding Y, Nam G, Soule L, Abdelhafiz A, Wang C D, Liu M L. Atomically dispersed Fe-N-C decorated with Pt-alloy core-shell nanoparticles for improved activity and durability towards oxygen reduction[J]. Energy Environ. Sci., 2020, 13(9): 3032-3040. http://doi.org/10.1039/D0EE00832J. doi: 10.1039/D0EE00832J URL
[46]	Zhao L, Qi X Q, Yang T T, Xiong P, Niu X B, Jiang J X, Xue Q, Yu L, Chen J S, Cabot A, Wu R. Coupling PtZn intermetallic and atomically dispersed cobalt towards efficient and stable oxygen reduction reaction catalysts[J]. J. Mater. Chem. A, 2023, 11(44): 24371-24378. http://doi.org/10.1039/D3TA04591A. doi: 10.1039/D3TA04591A URL
[47]	Karuppannan M, Kim Y, Gok S, Lee E, Hwang J Y, Jang J H, Cho Y H, Lim T, Sung Y E, Kwon O J. A highly durable carbon-nanofiber-supported Pt-C core-shell cathode catalyst for ultra-low Pt loading proton exchange membrane fuel cells: Facile carbon encapsulation[J]. Energy Environ. Sci., 2019, 12(9): 2820-2829. http://doi.org/10.1039/C9EE01000A. doi: 10.1039/C9EE01000A URL
[48]	Huang L, Wei M, Qi R, Dong C L, Dang D, Yang C C, Xia C, Chen C, Zaman S, Li F M, You B, Xia B Y. An integrated platinum-nanocarbon electrocatalyst for efficient oxygen reduction[J]. Nat. Commun., 2022, 13(1): 6703. http://doi.org/10.1038/s41467-022-34444-w. doi: 10.1038/s41467-022-34444-w URL pmid: 36344552
[49]	Qin P, Liu D D, Li C Y, Peng G G, Waterhouse G I N, Han Y, Shui J, Luo M, Shang L, Guo S, Zhang T. Dense platinum-based intermetallic nanoparticles confined into hollow mesoporous carbon for durable high-power heavy-duty fuel cells[J]. J. Am. Chem. Soc., 2026, 148(9): 9563-9571. http://doi.org/10.1021/jacs.5c19791. doi: 10.1021/jacs.5c19791 URL
[50]	Huang Z L, Wang Y R, Xia J, Hu S N, Chen N J, Ding T Y, Zhan C H, Pao C W, Hu Z, Huang W H, Shi T, Meng X M, Xu Y, Cao L, Huang X Q. Atom-glue stabilized Pt-based intermetallic nanoparticles[J]. Sci. Adv., 2024, 10(40): eadq6727. http://doi.org/10.1126/sciadv.adq6727.
[51]	Ni Z J, Han K, Chen X C, Wang L, Wang B. Experimental and numerical efforts to improve oxygen mass transport in porous catalyst layer of proton exchange membrane fuel cells[J]. Nano Res. Energy, 2023, 2: e9120085. http://doi.org/10.26599/NRE.2023.9120085.
[52]	Garrick T R, Moylan T E, Yarlagadda V, Kongkanand A. Characterizing electrolyte and platinum interface in PEM fuel cells using CO displacement[J]. J. Electrochem. Soc., 2016, 164(2): F60-F64. http://doi.org/10.1149/2.0551702jes.
