制备含有Fe-N-C催化剂的无贵金属阴极催化剂层以提升质子交换膜燃料电池性能

doi:10.61558/2993-074X.3607

电化学（中英文） ›› 2026, Vol. 32 ›› Issue (4): 2511141. doi: 10.61558/2993-074X.3607

制备含有Fe-N-C催化剂的无贵金属阴极催化剂层以提升质子交换膜燃料电池性能

周石^a^,^b^,^#, Muhammad Tariq^b^,^#, Asif Nadeem Tabish^c, Muhammad Salman^d, 宁凡迪^b, Muhammad Rayyan Tayyab^e, 彭冉冉^f, 郝梦庚^g, 李文木^g^,^*(), 周小春^b^,^*()

^a 中国科学技术大学纳米学院，安徽合肥 230026，中国
^b 中国科学院苏州纳米技术与纳米仿生研究所，江苏苏州 215123，中国
^c Department of Chemical Engineering, University of Engineering and Technology, New Campus, Lahore, 39021, Pakistan
^d Department of Chemical Engineering, University of Engineering and Technology, Lahore, 54890, Pakistan
^e 华东理工大学，上海 200237，中国
^f 中国科学技术大学，安徽合肥 230026，中国
^g 中国科学院福建物质结构研究所，福建福州 350002，中国

收稿日期:2025-11-12 修回日期:2025-12-17 接受日期:2026-02-13 发布日期:2026-02-13 出版日期:2026-04-28

Insertion of Noble Metal Free Cathodic Catalyst Layer with Fe-N-C Catalyst for Boosted Performance of PEMFC

Shi Zhou^a^,^b^,^#, Muhammad Tariq^b^,^#, Asif Nadeem Tabish^c, Muhammad Salman^d, Fandi Ning^b, Muhammad Rayyan Tayyab^e, Ranran Peng^f, Menggeng Hao^g, Wen-Mu Li^g^,^*(), Xiaochun Zhou^b^,^*()

^a Nano Science and Technology Institute, University of Science and Technology of China, Hefei 230026, China
^b Division of Advanced Nanomaterials, Suzhou Institute of Nano-Tech and Nano-Bionics, Chinese Academy of Sciences, Suzhou 215123, China
^c Department of Chemical Engineering, University of Engineering and Technology, New Campus, Lahore, 39021, Pakistan
^d Department of Chemical Engineering, University of Engineering and Technology, Lahore, 54890, Pakistan
^e State Environmental Protection Key Laboratory of Environmental Risk Assessment and Control on Chemical Processes, School of Resources and Environmental Engineering, East China University of Science and Technology, 130 Meilong Road Shanghai 200237, China
^f Anhui Laboratory of Advanced Photon Science and Technology, Hefei National Laboratory for Physical Sciences at the Microscale and CAS Key Laboratory of Materials for Energy Conversion, University of Science and Technology of China, Hefei 230026, China
^g National Engineering Research Center for Optoelectronic Crystalline Materials, Fujian Institute of Research on the Structure of Matter, Chinese Academy of Sciences, Fuzhou 350002, China

Received:2025-11-12 Revised:2025-12-17 Accepted:2026-02-13 Online:2026-02-13 Published:2026-04-28
Contact: *Wen-Mu Li, liwm@fjirsm.ac.cn, Xiao-Chun Zhou, E-mail: xczhou2013@sinano.ac.cn
About author:Author contributions
Shi Zhou: Conceptualization, Methodology, Investigation, Formal analysis, Writing - Original Draft. Muhammad Tariq: Visualization, Investigation, Writing-Review & Editing. Asif Nadeem Tabish: Writing-Review & Editing, Software. Muhammad Salman: Formal analysis, Writing-Review & Editing. Fandi Ning: Resources, Data Curation. Ran-Ran Peng: Investigation. Muhammad Rayyan Tayyab: Software, Validation. Meng-Geng Hao: Formal analysis. Wen-Mu Li: Visualization, Writing - Review & Editing. Xiao-Chun Zhou: Supervision, Project administration.
^#Equal Contribution by Shi Zhou and Muhammad Tariq

摘要/Abstract

摘要：

廉价的铁-氮-碳（Fe-N-C）催化剂被视为质子交换膜燃料电池中铂族金属催化剂的有前景的替代品。尽管它们在旋转圆盘电极上表现出稳健的活性，但在膜电极组件中的性能往往受到限制，如氧气扩散减少、过氧化氢生成量高、质子传导性低以及电子转移数较低。本研究通过调整阴极催化剂层（CCL）的组成，对包括质子传输、电子传导和空气呼吸式质子交换膜燃料电池中的气体扩散在内的关键因素进行了研究。实验结果表明，当CCL中Fe-N-C催化剂的负载量为1 mg∙cm⁻²且Nafion含量为0.15 mg∙cm⁻²时，可获得峰值功率密度。研究发现，为增强疏水性而添加聚四氟乙烯对质子交换膜燃料电池性能有负面影响。此外，将不同种类的碳纳米管掺入CCL中，可使峰值功率密度显著提高30%以上，这归因于气体扩散和质子传导性的增强。本研究突出显示了气体传输和质子传导性在基于Fe-N-C的CCL中的关键作用。这些发现有助于推进经济型质子交换膜燃料电池的合理设计原则，为推动高效且经济的技术发展提供了宝贵见解。

关键词: 质子交换膜燃料电池, 无贵金属催化剂, Fe-N-C催化剂, 碳纳米管, 膜电极组件

Abstract:

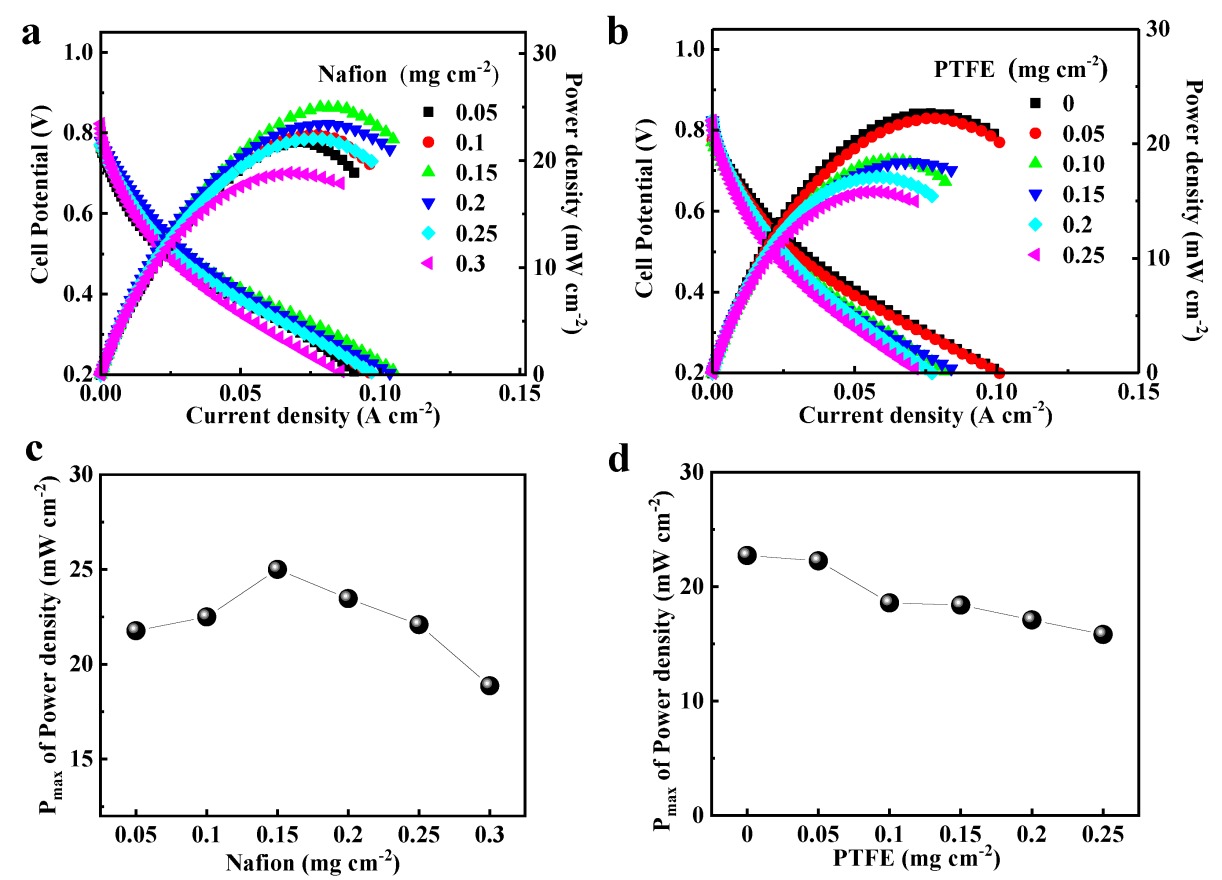

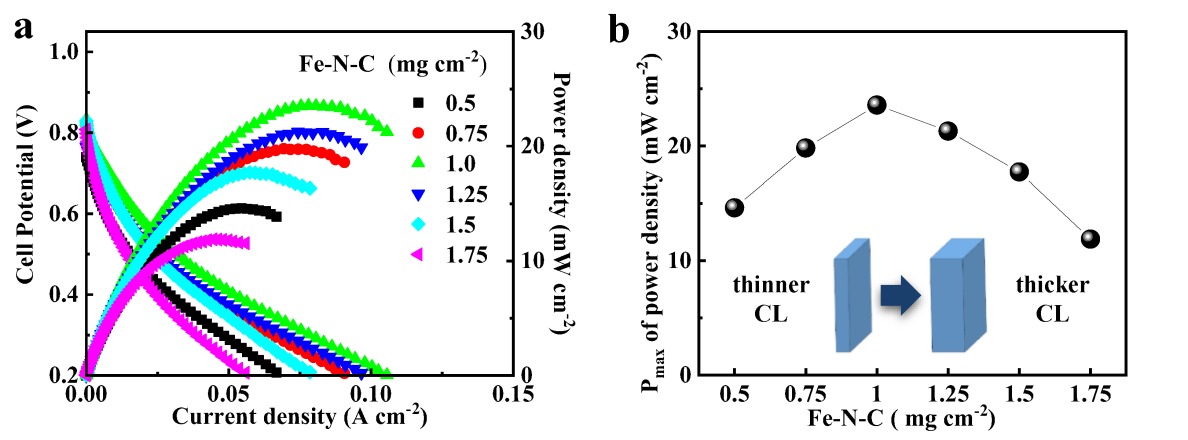

Economical Fe-N-C catalysts are considered as promising alternatives to platinum group metal catalysts for proton exchange membrane fuel cells (PEMFCs). Despite exhibiting robust activity on rotating disk electrodes, their performance within membrane electrode assemblies often experiences limitations, such as decreased O₂ diffusion, high H₂O₂ formation, low proton conduction, and a lower electron transfer number. In this study, key factors, including proton transport, electron conduction, and gas diffusion within air-breathing PEMFCs, have been investigated by adjusting cathode catalyst layer (CCL) compositions. From the experimental results, the optimal peak power density was obtained when the loading of Fe-N-C catalyst was 1 mg∙cm^-2 and Nafion content was 0.15 mg∙cm^-2 within CCLs. The addition of polytetrafluoroethylene to enhance hydrophobicity was found to have a negative impact on PEMFC performance. Furthermore, the incorporation of diverse carbon nanotubes (CNTs) into CCLs resulted in a significant increase of over 30% in peak power density, attributed to enhancements in the gas diffusion and proton conductivity. The critical roles of gas transport and proton conductivity within Fe-N-C-based CCLs have been highlighted by this study. These findings contribute to the advancement of rational design principles for economical PEMFCs, offering valuable insights to drive the development of efficient and cost-effective technology in future.

Key words: Proton exchange membrane fuel cell, noble metal-free catalyst, Fe-N-C catalyst, carbon nanotube, membrane electrode assembly

周石, Muhammad Tariq, Asif Nadeem Tabish, Muhammad Salman, 宁凡迪, Muhammad Rayyan Tayyab, 彭冉冉, 郝梦庚, 李文木, 周小春. 制备含有Fe-N-C催化剂的无贵金属阴极催化剂层以提升质子交换膜燃料电池性能[J]. 电化学（中英文）, 2026, 32(4): 2511141.

Shi Zhou, Muhammad Tariq, Asif Nadeem Tabish, Muhammad Salman, Fandi Ning, Muhammad Rayyan Tayyab, Ranran Peng, Menggeng Hao, Wen-Mu Li, Xiaochun Zhou. Insertion of Noble Metal Free Cathodic Catalyst Layer with Fe-N-C Catalyst for Boosted Performance of PEMFC[J]. Journal of Electrochemistry, 2026, 32(4): 2511141.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://electrochem.xmu.edu.cn/CN/10.61558/2993-074X.3607

https://electrochem.xmu.edu.cn/CN/Y2026/V32/I4/2511141

图/表 7

参考文献 61

[1]	Barbir F, Yazici S. Status and development of PEM fuel cell technology[J]. Int. J. Energy Res., 2008, 32(5): 369-378. http://dx.doi.org/10.1002/er.1371. doi: 10.1002/(ISSN)1099-114X URL
[2]	Xia W, Mahmood A, Liang Z B, Zou R Q, Guo S J. Earth-abundant nanomaterials for oxygen reduction[J]. Angew. Chem. Int. Ed., 2016, 55(8): 2650-2676. http://dx.doi.org/10.1002/anie.201504830. doi: 10.1002/anie.201504830 URL pmid: 26663778
[3]	Rabis A, Rodriguez P, Schmidt T J. Electrocatalysis for polymer electrolyte fuel cells: Recent achievements and future challenges[J]. ACS Catal., 2012, 2(5): 864-890. http://dx.doi.org/10.1021/cs3000864. doi: 10.1021/cs3000864 URL
[4]	Tariq M, Wu Y Y, Ma C L, Ali M, Zaman W Q, Abbas Z, Ayub K S, Zhou J C, Wang G H, Cao L M, Yang J. Boosted up stability and activity of oxygen vacancy enriched RuO₂/MoO₃ mixed oxide composite for oxygen evolution reaction[J]. Int. J. Hydrogen Energy, 2020, 45(35): 17287-17298. http://dx.doi.org/10.1016/j.ijhydene.2020.04.101. doi: 10.1016/j.ijhydene.2020.04.101 URL
[5]	Liu M M, Wang L L, Zhao K N, Shi S S, Shao Q S, Zhang L, Sun X L, Zhao Y F, Zhang J J. Atomically dispersed metal catalysts for the oxygen reduction reaction: Synthesis, characterization, reaction mechanisms and electrochemical energy applications[J]. Energy Environ. Sci., 2019, 12(10): 2890-2923. http://dx.doi.org/10.1039/c9ee01722d. doi: 10.1039/C9EE01722D URL
[6]	Chung H T, Cullen D A, Higgins D, Sneed B T, Holby E F, More K L, Zelenay P. Direct atomic-level insight into the active sites of a high-performance PGM-free ORR catalyst[J]. Science, 2017, 357(6350): 479-484. http://dx.doi.org/10.1126/science.aan2255. doi: 10.1126/science.aan2255 URL pmid: 28774924
[7]	Chen Z W, Higgins D, Yu A P, Zhang L, Zhang J J. A review on non-precious metal electrocatalysts for PEM fuel cells[J]. Energy Environ. Sci., 2011, 4(9): 3167-3192. http://dx.doi.org/10.1039/c0ee00558d. doi: 10.1039/c0ee00558d URL
[8]	Wang L L, Bliznakov S, Isseroff R, Zhou Y C, Zuo X H, Raut A, Wang W H, Cuiffo M, Kim T, Rafailovich M H. Enhancing proton exchange membrane fuel cell performance via graphene oxide surface synergy[J]. Appl. Energy, 2020, 261: 114277. http://dx.doi.org/10.1016/j.apenergy.2019.114277. doi: 10.1016/j.apenergy.2019.114277 URL
[9]	Thompson S T, Papageorgopoulos D. Platinum group metal-free catalysts boost cost competitiveness of fuel cell vehicles[J]. Nat. Catal., 2019, 2(7): 558-561. http://dx.doi.org/10.1038/s41929-019-0291-x. doi: 10.1038/s41929-019-0291-x URL
[10]	Shao Y Y, Dodelet J P, Wu G, Zelenay P. PGM-free cathode catalysts for PEM fuel cells: A mini-review on stability challenges[J]. Adv. Mater., 2019, 31(31): e1807615. http://dx.doi.org/10.1002/adma.201807615.
[11]	Wu G. Current challenge and perspective of PGM-free cathode catalysts for PEM fuel cells[J]. Front. Energy, 2017, 11(3): 286-298. http://dx.doi.org/10.1007/s11708-017-0477-3. doi: 10.1007/s11708-017-0477-3 URL
[12]	Chen C, Yang X D, Zhou Z Y, Lai Y J, Rauf M, Wang Y, Pan J, Zhuang L, Wang Q, Wang Y C, Tian N, Zhang X S, Sun S G. Aminothiazole-derived N,S,Fe-doped graphene nanosheets as high performance electrocatalysts for oxygen reduction[J]. Chem. Commun., 2015, 51(96): 17092-17095. http://dx.doi.org/10.1039/c5cc06562c. doi: 10.1039/C5CC06562C URL
[13]	Jiang W J, Gu L, Li L, Zhang Y, Zhang X, Zhang L J, Wang J Q, Hu J S, Wei Z, Wan L J. Understanding the high activity of Fe-N-C electrocatalysts in oxygen reduction: Fe/Fe₃C nanoparticles boost the activity of Fe-Nx[J]. J. Am. Chem. Soc., 2016, 138(10): 3570-3578. http://dx.doi.org/10.1021/jacs.6b00757. doi: 10.1021/jacs.6b00757 URL
[14]	Banham D, Ye S. Current status and future development of catalyst materials and catalyst layers for proton exchange membrane fuel cells: An industrial perspective[J]. ACS Energy Lett., 2017, 2(3): 629-638. http://dx.doi.org/10.1021/acsenergylett.6b00644. doi: 10.1021/acsenergylett.6b00644 URL
[15]	Li J Z, Chen M J, Cullen D A, Hwang S, Wang M Y, Li B Y, Liu K X, Karakalos S, Lucero M, Zhang H G, Lei C, Xu H, Sterbinsky G E, Feng Z X, Su D, More K L, Wang G F, Wang Z, Wu G. Atomically dispersed manganese catalysts for oxygen reduction in proton-exchange membrane fuel cells[J]. Nat. Catal., 2018, 1(12): 935-945. http://dx.doi.org/10.1038/s41929-018-0164-8. doi: 10.1038/s41929-018-0164-8 URL
[16]	Li Q, Wang T Y, Havas D, Zhang H G, Xu P, Han J T, Cho J, Wu G. High-performance direct methanol fuel cells with precious-metal-free cathode[J]. Adv. Sci., 2016, 3(11): http://dx.doi.org/10.1002/advs.201600140.
[17]	He Y H, Liu S W, Priest C, Shi Q R, Wu G. Atomically dispersed metal-nitrogen-carbon catalysts for fuel cells: Advances in catalyst design, electrode performance, and durability improvement[J]. Chem. Soc. Rev., 2020, 49(11): 3484-3524. http://dx.doi.org/10.1039/c9cs00903e. doi: 10.1039/c9cs00903e URL pmid: 32342064
[18]	Xu X L, Xia Z X, Zhang X M, Sun R L, Sun X J, Li H Q, Wu C C, Wang J H, Wang S, Sun G Q. Atomically dispersed Fe-N-C derived from dual metal-organic frameworks as efficient oxygen reduction electrocatalysts in direct methanol fuel cells[J]. App. Catal. B: Environ., 2019, 259: http://dx.doi.org/10.1016/j.apcatb.2019.118042.
[19]	He Y H, Tan Q, Lu L L, Sokolowski J, Wu G. Metal-nitrogen-carbon catalysts for oxygen reduction in pem fuel cells: Self-template synthesis approach to enhancing catalytic activity and stability[J]. Electrochem. Energy Rev., 2019, 2(2): 231-251. http://dx.doi.org/10.1007/s41918-019-00031-9. doi: 10.1007/s41918-019-00031-9 URL
[20]	Martinez U, Komini Babu S, Holby E F, Zelenay P. Durability challenges and perspective in the development of pgm-free electrocatalysts for the oxygen reduction reaction[J]. Curr. Opin. Electrochem., 2018, 9: 224-232. http://dx.doi.org/10.1016/j.coelec.2018.04.010.
[21]	Ajmal M, Guo X, Memon M A, Asim M, Shi C, Gao R, Pan L, Zhang X, Huang Z F, Zou J J. Ligand-regulated Ni-based coordination compounds to promote self-reconstruction for improved oxygen evolution reaction[J]. J. Mater. Chem. A, 2024, 12: 18294-18303. http://dx.doi.org/10.1039/d4ta03086a. doi: 10.1039/D4TA03086A URL
[22]	Lefèvre M, Proietti E, Jaouen F, Dodelet J P. Iron-based catalysts with improved oxygen reduction activity in polymer electrolyte fuel cells[J]. Science, 2009, 324(5923): 71-74. http://dx.doi.org/10.1126/science.1170051. doi: 10.1126/science.1170051 URL pmid: 19342583
[23]	Sa Y J, Seo D J, Woo J, Lim J T, Cheon J Y, Yang S Y, Lee J M, Kang D, Shin T J, Shin H S, Jeong H Y, Kim C S, Kim M G, Kim T Y, Joo S H. A general approach to preferential formation of active Fe-Nx sites in Fe-N/C electrocatalysts for efficient oxygen reduction reaction[J]. J. Am. Chem. Soc., 2016, 138(45): 15046-15056. http://dx.doi.org/10.1021/jacs.6b09470. doi: 10.1021/jacs.6b09470 URL
[24]	Zhan Y F, Xie F Y, Zhang H, Jin Y S, Meng H, Chen J, Sun X L. Highly dispersed nonprecious metal catalyst for oxygen reduction reaction in proton exchange membrane fuel cells[J]. ACS Appl. Mater. Interfaces, 2020, 12(15): 17481-17491. http://dx.doi.org/10.1021/acsami.0c00126. doi: 10.1021/acsami.0c00126 URL
[25]	Wu G, More K L, Johnston C M, Zelenay P. High-performance electrocatalysts for oxygen reduction derived from polyaniline, iron, and cobalt[J]. Science, 2011, 332(6028): 443-447. http://dx.doi.org/10.1126/science.1200832. doi: 10.1126/science.1200832 URL pmid: 21512028
[26]	Martinez U, Komini Babu S, Holby E F, Chung H T, Yin X, Zelenay P. Progress in the development of Fe-based PGM-free electrocatalysts for the oxygen reduction reaction[J]. Adv. Mater., 2019, 31(31): 1806545. http://dx.doi.org/10.1002/adma.201806545. doi: 10.1002/adma.v31.31 URL
[27]	Shi W, Wang Y C, Chen C, Yang X D, Zhou Z Y, Sun S G. A mesoporous Fe/N/C ORR catalyst for polymer electrolyte membrane fuel cells[J]. Chin. J. Catal., 2016, 37(7): 1103-1108. http://dx.doi.org/10.1016/S1872-2067(16)62471-3. doi: 10.1016/S1872-2067(16)62471-3 URL
[28]	Wu Y J, Wang Y C, Wang R X, Zhang P F, Yang X D, Yang H J, Li J T, Zhou Y, Zhou Z Y, Sun S G. Three-dimensional networks of S-doped Fe/N/C with hierarchical porosity for efficient oxygen reduction in polymer electrolyte membrane fuel cells[J]. ACS Appl. Mater. Interfaces, 2018, 10(17): 14602-14613. http://dx.doi.org/10.1021/acsami.7b19332. doi: 10.1021/acsami.7b19332 URL
[29]	Rauf M, Chen R, Wang Q, Wang Y C, Zhou Z Y. Nitrogen-doped carbon nanotubes with encapsulated Fe nanoparticles as efficient oxygen reduction catalyst for alkaline membrane direct ethanol fuel cells[J]. Carbon, 2017, 125: 605-613. http://dx.doi.org/10.1016/j.carbon.2017.09.093. doi: 10.1016/j.carbon.2017.09.093 URL
[30]	Zhang H G, Hwang S, Wang M Y, Feng Z X, Karakalos S, Luo L L, Qiao Z, Xie X H, Wang C M, Su D, Shao Y Y, Wu G. Single atomic iron catalysts for oxygen reduction in acidic media: Particle size control and thermal activation[J]. J. Am. Chem. Soc., 2017, 139(40): 14143-14149. http://dx.doi.org/10.1021/jacs.7b06514. doi: 10.1021/jacs.7b06514 URL pmid: 28901758
[31]	Wang J, Huang Z Q, Liu W, Chang C R, Tang H L, Li Z J, Chen W X, Jia C J, Yao T, Wei S Q, Wu Y, Li Y D. Design of N-coordinated dual-metal sites: A stable and active Pt-free catalyst for acidic oxygen reduction reaction[J]. J. Am. Chem. Soc., 2017, 139(48): 17281-17284. http://dx.doi.org/10.1021/jacs.7b10385. doi: 10.1021/jacs.7b10385 URL pmid: 29135246
[32]	Wang Y C, Lai Y J, Song L, Zhou Z Y, Liu J G, Wang Q, Yang X D, Chen C, Shi W, Zheng Y P, Rauf M, Sun S G. S-doping of an Fe/N/C ORR catalyst for polymer electrolyte membrane fuel cells with high power density[J]. Angew. Chem. Int. Ed, 2015, 54(34): 9907-9910. http://dx.doi.org/10.1002/anie.201503159. doi: 10.1002/anie.v54.34 URL
[33]	Wan X, Liu X F, Li Y C, Yu R H, Zheng L R, Yan W S, Wang H, Xu M, Shui J L. Fe-N-C electrocatalyst with dense active sites and efficient mass transport for high-performance proton exchange membrane fuel cells[J]. Nat. Catal., 2019, 2(3): 259-268. http://dx.doi.org/10.1038/s41929-019-0237-3. doi: 10.1038/s41929-019-0237-3 URL
[34]	Yuan S, Shui J L, Grabstanowicz L, Chen C, Commet S, Reprogle B, Xu T, Yu L, Liu D J. A highly active and support-free oxygen reduction catalyst prepared from ultrahigh-surface-area porous polyporphyrin[J]. Angew. Chem. Int. Ed., 2013, 52(32): 8349-8353. http://dx.doi.org/10.1002/anie.201302924. doi: 10.1002/anie.201302924 URL pmid: 23804418
[35]	Kübler M, Wagner S, Jurzinsky T, Paul S, Weidler N, Gomez Villa E D, Cremers C, Kramm U I. Impact of surface functionalization on the intrinsic properties of the resulting Fe-N-C catalysts for fuel cell applications[J]. Energy Technol., 2020, 8(9): 2000433. http://dx.doi.org/10.1002/ente.202000433. doi: 10.1002/ente.v8.9 URL
[36]	Ge X M, Sumboja A, Wuu D V, An T, Li B, Goh F W T, Hor T S A, Zong Y, Liu Z L. Oxygen reduction in alkaline media: From mechanisms to recent advances of catalysts[J]. ACS Catal., 2015, 5(8): 4643-4667. http://dx.doi.org/10.1021/acscatal.5b00524. doi: 10.1021/acscatal.5b00524 URL
[37]	Wan C Z, Duan X F, Huang Y. Molecular design of single-atom catalysts for oxygen reduction reaction[J]. Adv. Energy Mater., 2020, 10(14): 1903815. http://dx.doi.org/10.1002/aenm.201903815. doi: 10.1002/aenm.v10.14 URL
[38]	Pinaud B A, Bonakdarpour A, Daniel L, Sharman J, Wilkinson D P. Key considerations for high current fuel cell catalyst testing in an electrochemical half-cell[J]. J. Electrochem. Soc., 2017, 164(4): F321-F327. http://dx.doi.org/10.1149/2.0891704jes.
[39]	Kim E, Song S, Choi S, Park J O, Kim J, Kwon K. Parameter analysis from the modeling of high temperature proton exchange membrane fuel cells[J]. Appl. Energy, 2021, 301: 117488. http://dx.doi.org/10.1016/j.apenergy.2021.117488. doi: 10.1016/j.apenergy.2021.117488 URL
[40]	Wang W, Luo J, Chen S L. Carbon oxidation reactions could misguide the evaluation of carbon black-based oxygen-evolution electrocatalysts[J]. Chem. Commun., 2017, 53(84): 11556-11559. http://dx.doi.org/10.1039/c7cc04611a. doi: 10.1039/C7CC04611A URL
[41]	Zhang H, Chung H T, Cullen D A, Wagner S, Kramm U I, More K L, Zelenay P, Wu G. High-performance fuel cell cathodes exclusively containing atomically dispersed iron active sites[J]. Energy Environ. Sci., 2019, 12(8): 2548-2558. http://dx.doi.org/10.1039/c9ee00877b. doi: 10.1039/C9EE00877B URL
[42]	Wang Y C, Zhu P F, Yang H, Huang L, Wu Q H, Rauf M, Zhang J Y, Dong J, Wang K, Zhou Z Y, Sun S G. Surface fluorination to boost the stability of the Fe/N/C cathode in proton exchange membrane fuel cells[J]. ChemElectroChem, 2018, 5(14): 1914-1921. http://dx.doi.org/10.1002/celc.201700939. doi: 10.1002/celc.v5.14 URL
[43]	Wang Y C, Huang L, Zhang P, Qiu Y T, Sheng T, Zhou Z Y, Wang G, Liu J G, Rauf M, Gu Z Q, Wu W T, Sun S G. Constructing a triple-phase interface in micropores to boost performance of Fe/N/C catalysts for direct methanol fuel cells[J]. ACS Energy Lett., 2017, 2(3): 645-650. http://dx.doi.org/10.1021/acsenergylett.7b00071. doi: 10.1021/acsenergylett.7b00071 URL
[44]	Xiao F, Wang Y C, Wu Z P, Chen G, Yang F, Zhu S, Siddharth K, Kong Z, Lu A, Li J C, Zhong C J, Zhou Z Y, Shao M. Recent advances in electrocatalysts for proton exchange membrane fuel cells and alkaline membrane fuel cells[J]. Adv. Mater., 2021, 33(50): e2006292. http://dx.doi.org/10.1002/adma.202006292.
[45]	Wang W, Jia Q Y, Mukerjee S, Chen S L. Recent insights into the oxygen-reduction electrocatalysis of Fe/N/C materials[J]. ACS Catal., 2019, 9(11): 10126-10141. http://dx.doi.org/10.1021/acscatal.9b02583. doi: 10.1021/acscatal.9b02583 URL
[46]	Xiong K N, Wu W, Wang S F, Zhang L. Modeling, design, materials and fabrication of bipolar plates for proton exchange membrane fuel cell: A review[J]. Appl. Energy, 2021, 301: 117443. http://dx.doi.org/10.1016/j.apenergy.2021.117443. doi: 10.1016/j.apenergy.2021.117443 URL
[47]	Kiciński W, Dyjak S, Gratzke M, Tokarz W, Błachowski A. Platinum group metal-free Fe-N-C catalysts for PEM fuel cells derived from nitrogen and sulfur doped synthetic polymers[J]. Fuel, 2022, 328: 125323. http://dx.doi.org/10.1016/j.fuel.2022.125323. doi: 10.1016/j.fuel.2022.125323 URL
[48]	Yin S H, Chen L, Yang J, Cheng X Y, Zeng H B, Hong Y H, Huang H, Kuai X X, Lin Y G, Huang R, Jiang Y X, Sun S G. A Fe-NC electrocatalyst boosted by trace bromide ions with high performance in proton exchange membrane fuel cells[J]. Nat. Commun. 2024, 15(1): 7489. http://dx.doi.org/10.1038/s41467-024-51858-w. doi: 10.1038/s41467-024-51858-w URL pmid: 39209848
[49]	Rahbarshendi F, Charkhesht V, Rajabalizadeh Mojarrad N, Çetiner B, Yarar Kaplan B. Enhancing PEM fuel cell performance and durability with CeO₂-modified Fe-N-C hollow-fiber cathodes[J]. Electrochim. Acta, 2025, 541: 147329. http://dx.doi.org/10.1016/j.electacta.2025.147329. doi: 10.1016/j.electacta.2025.147329 URL
[50]	Ning F, He X D, Shen Y B, Jin H H, Li Q W, Li D, Li S P, Zhan Y L, Du Y, Jiang J J, Yang H, Zhou X C. Flexible and lightweight fuel cell with high specific power density[J]. ACS Nano, 2017, 11(6): 5982-5991. http://dx.doi.org/10.1021/acsnano.7b01880. doi: 10.1021/acsnano.7b01880 URL pmid: 28605195
[51]	Dun R M, Hao M G, Su Y M, Li W M. Fe-N-doped hierarchical mesoporous carbon nanomaterials as efficient catalysts for oxygen reduction in both acidic and alkaline media[J]. J. Mater. Chem. A, 2019, 7(20): 12518-12525. http://dx.doi.org/10.1039/c9ta01807g. doi: 10.1039/C9TA01807G URL
[52]	Wang X X, Prabhakaran V, He Y H, Shao Y Y, Wu G. Iron-free cathode catalysts for proton-exchange-membrane fuel cells: Cobalt catalysts and the peroxide mitigation approach[J]. Adv. Mater., 2019, 31(31):1805126. http://dx.doi.org/10.1002/adma.201805126. doi: 10.1002/adma.v31.31 URL
[53]	Goellner V, Armel V, Zitolo A, Fonda E, Jaouen F. Degradation by hydrogen peroxide of metal-nitrogen-carbon catalysts for oxygen reduction[J]. J. Electrochem. Soc., 2015, 162(6): H403-H414. http://dx.doi.org/10.1149/2.1091506jes.
[54]	Choi C H, Lim H K, Chung M W, Chon G, Ranjbar Sahraie N, Altin A, Sougrati M T, Stievano L, Oh H S, Park E S, Luo F, Strasser P, Dražić G, Mayrhofer K J J, Kim H, Jaouen F. The achilles' heel of iron-based catalysts during oxygen reduction in an acidic medium[J]. Energy Environ. Sci., 2018, 11(11): 3176-3182. http://dx.doi.org/10.1039/c8ee01855c. doi: 10.1039/C8EE01855C URL
[55]	Cruz-Manzo S, Chen R, Rama P. Study of current distribution and oxygen diffusion in the fuel cell cathode catalyst layer through electrochemical impedance spectroscopy[J]. Int. J. Hydrogen Energy, 2013, 38(3): 1702-1713. http://dx.doi.org/10.1016/j.ijhydene.2012.08.141. doi: 10.1016/j.ijhydene.2012.08.141 URL
[56]	Banham D, Kishimoto T, Zhou Y J, Sato T, Bai K, Ozaki J, Imashiro Y, Ye S Y. Critical advancements in achieving high power and stable nonprecious metal catalyst-based MEAs for real-world proton exchange membrane fuel cell applications[J]. Sci. Adv., 2018, 4(3): eaar7180. http://dx.doi.org/ARTNeaar718010.1126/sciadv.aar7180. doi: 10.1126/sciadv.aar7180 URL
[57]	Kornyshev A A, Kuznetsov A M, Spohr E, Ulstrup J. Kinetics of proton transport in water[J]. J. Phys. Chem. B, 2003, 107(15): 3351-3366. http://dx.doi.org/10.1021/jp020857d. doi: 10.1021/jp020857d URL
[58]	Yin X, Lin L, Chung H T, Babu S K, Martinez U, Purdy G M, Zelenay P. Effects of MEA fabrication and ionomer composition on fuel cell performance of PGM-free ORR catalyst[J]. ECS Trans., 2017, 77: 1273-1281. http://dx.doi.org/10.1149/07711.1273ecst.
[59]	Wang Y C, Wan L Y, Cui P X, Tong L, Ke Y Q, Sheng T, Zhang M, Sun S H, Liang H W, Wang Y S, Zaghib K, Wang H, Zhou Z Y, Yuan J Y. Porous carbon membrane-supported atomically dispersed pyrrole-type Fe-N₄ as active sites for electrochemical hydrazine oxidation reaction[J]. Small, 2020, 16(31): 2002203. http://dx.doi.org/10.1002/smll.202002203. doi: 10.1002/smll.v16.31 URL
[60]	Liu L, Guo L Y, Zhang R Y, Chen L, Tao W Q. Numerically investigating two-phase reactive transport in multiple gas channels of proton exchange membrane fuel cells[J]. Appl. Energy, 2021, 302: 117625. http://dx.doi.org/10.1016/j.apenergy.2021.117625. doi: 10.1016/j.apenergy.2021.117625 URL
[61]	Shui J, Chen C, Grabstanowicz L, Zhao D, Liu D J. Highly efficient nonprecious metal catalyst prepared with metal-organic framework in a continuous carbon nanofibrous network[J]. PNAS, 2015, 112(34): 10629-10634. http://dx.doi.org/10.1073/pnas.1507159112. doi: 10.1073/pnas.1507159112 URL pmid: 26261338

Fuel cell type	Condition	Peak power density	Ref.
PEMFC	H₂-air	0.15 W∙cm^-2 (150 mW∙cm^-2)	[47]
PEMFC	H₂-air	0.88 W∙cm^-2 (880 mW∙cm^-2)	[48]
PEMFC	H₂-air	0.096 W∙cm^-2 (96 mW∙cm^-2)	[49]
PEMFC	Air-breathing	0.039 W∙cm^-2 (39 mW∙cm^-2)	This work

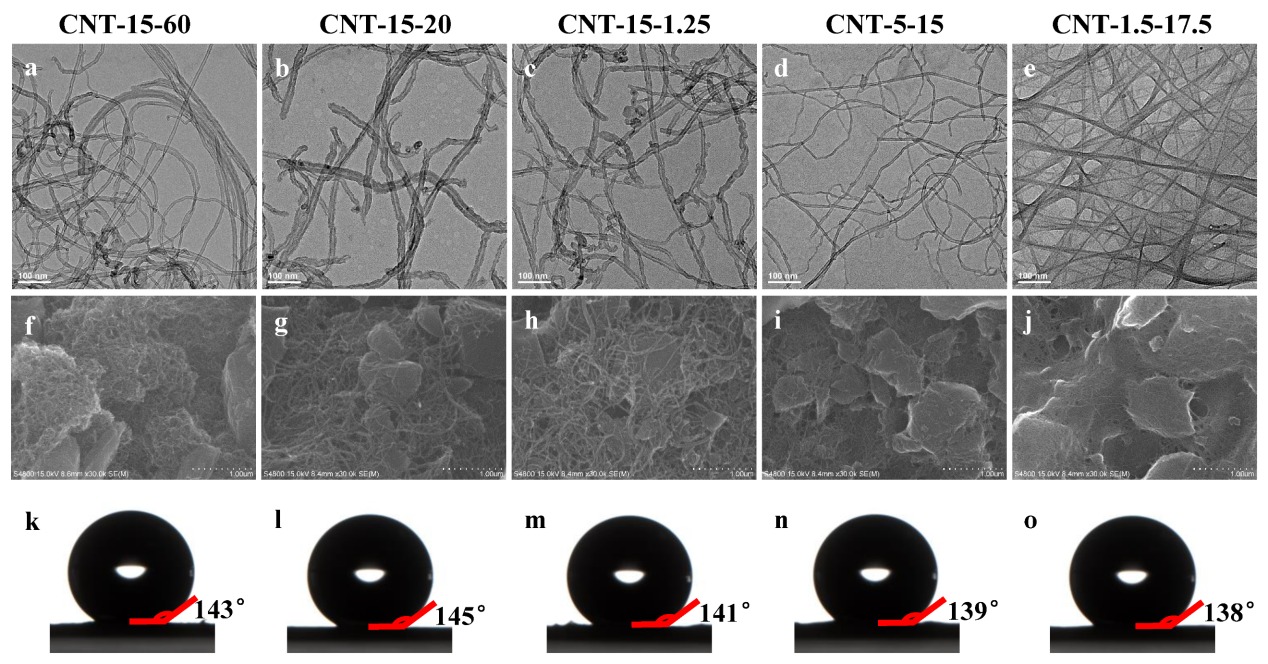

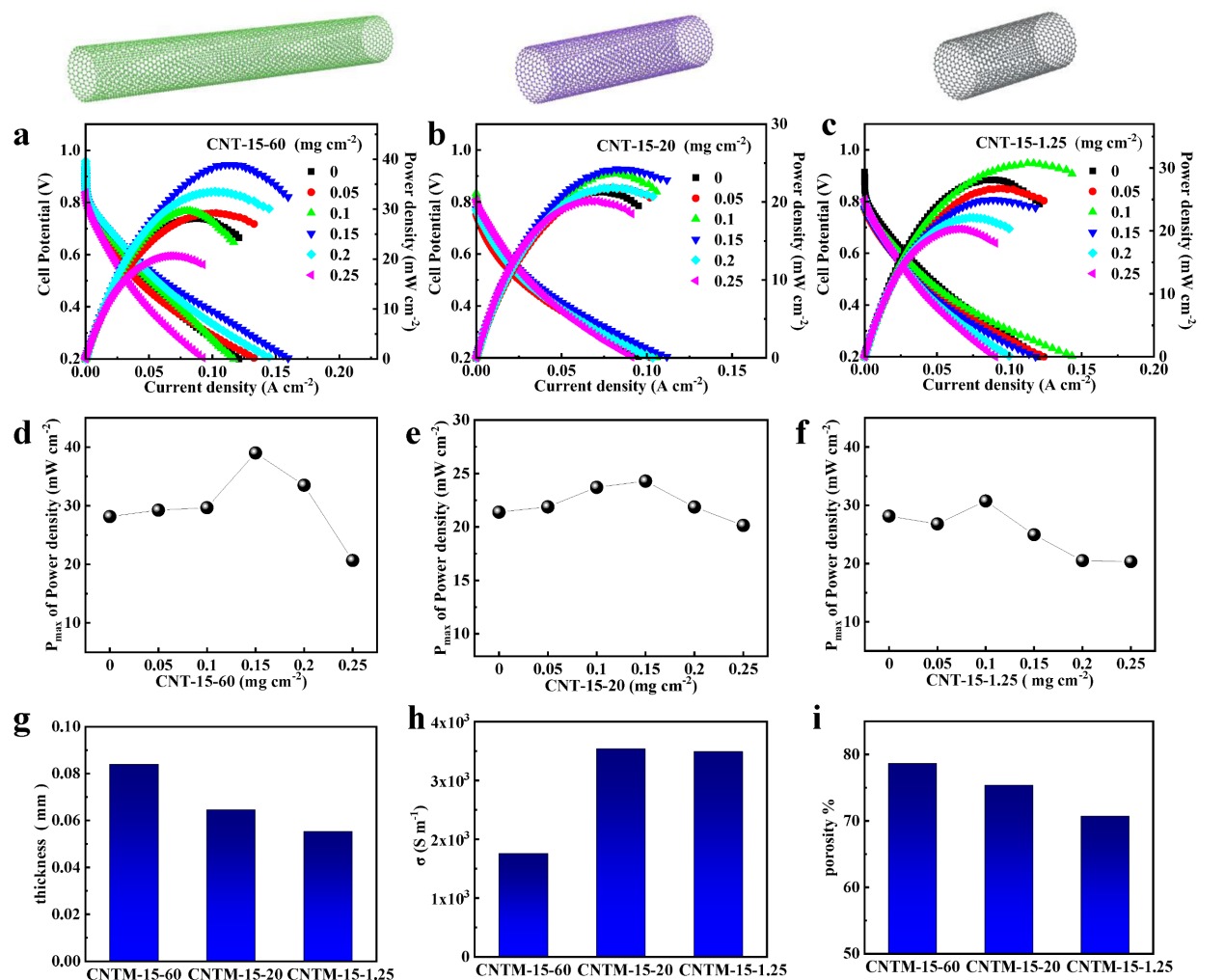

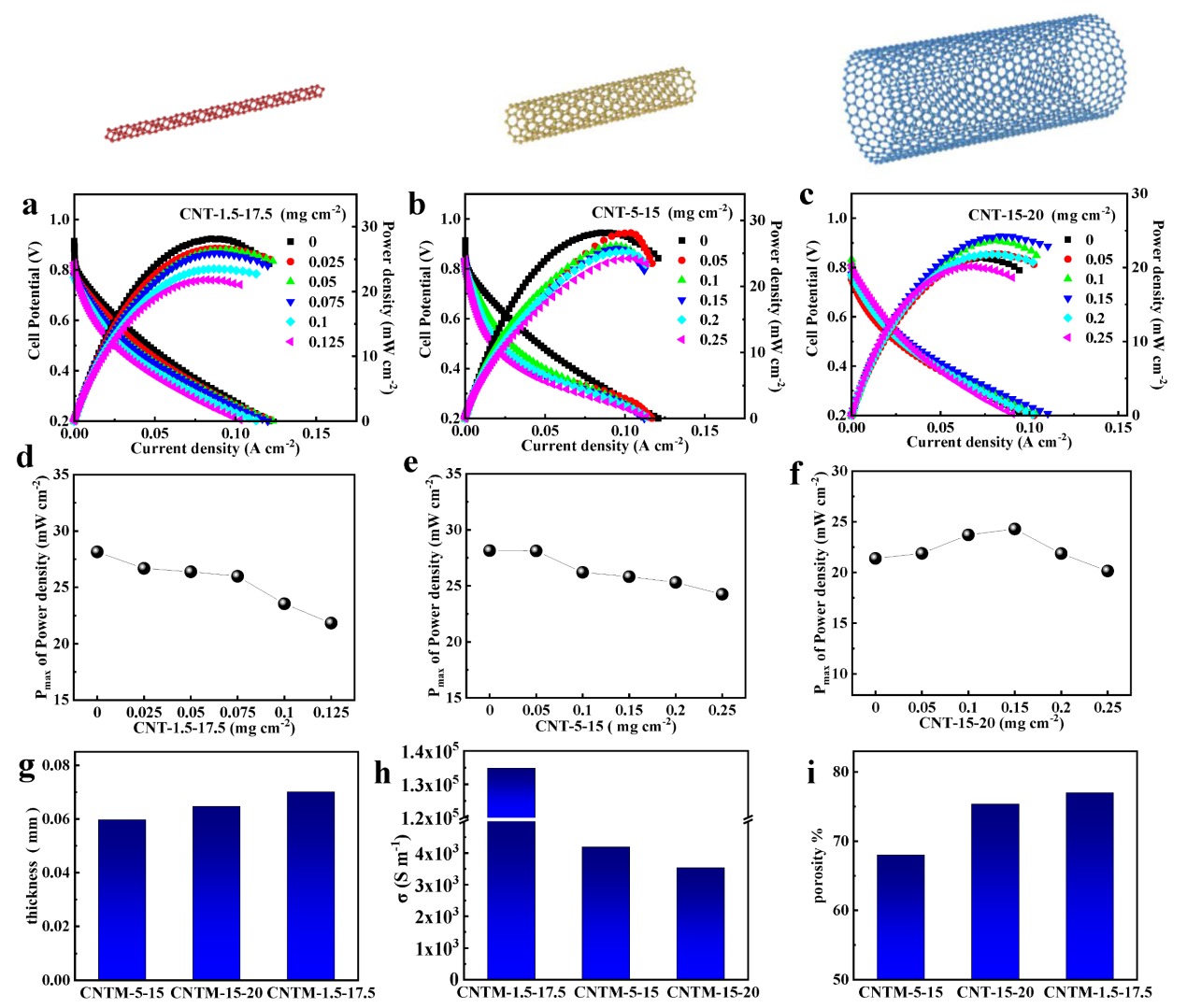

Sample	Diameter (nm)	Length (μm)
CNT-15-60	10-20	20-100
CNT-15-20	10-20	10-30
CNT-15-1.25	10-20	0.5-2
CNT-5-15	4-6	10-20
CNT-1.5-17.5	1-2	5-30
