三维三聚氰胺碳海绵/碘化钠复合材料作为钠离子电池正极材料的研究

doi:10.61558/2993-074X.3534

电化学（中英文） ›› 2025, Vol. 31 ›› Issue (5): 2501081. doi: 10.61558/2993-074X.3534

三维三聚氰胺碳海绵/碘化钠复合材料作为钠离子电池正极材料的研究

黄倩莹^a^,^#, 刘悦^a^,^#, 林子鑫^a, 郑淑怡^a, 梅婷婷^a, 唐宇婷^a, 张颖鹤^b^,^c^,^*(), 刘军^a^,^*()

^a广东工业大学材料与能源学院，广东广州 510006，中华人民共和国
^b哈尔滨工业大学（深圳）理学院，广东深圳 518055，中华人民共和国
^c深圳市先进功能碳基材料研究与综合应用重点实验室

收稿日期:2025-01-08 修回日期:2025-01-23 接受日期:2025-03-05 发布日期:2025-03-23 出版日期:2025-05-28

Three-Dimensional Melamine Carbon Sponge/NaI as Cathode Materials for Sodium-ion Batteries

Qian-Ying Huang^a^,^#, Yue Liu^a^,^#, Zi-Xin Lin^a, Shu-Yi Zheng^a, Ting-Ting Mei^a, Yu-Ting Tang^a, Ying-He Zhang^b^,^c^,^*(), Jun Liu^a^,^*()

^aSchool of Materials and Energy, Guangdong University of Technology, Guangzhou 510006, Guangdong, PR China
^bSchool of Science, Harbin Institute of Technology (Shenzhen), University Town, Shenzhen 518055, Guangdong, PR China
^cShenzhen Key Laboratory of Advanced Functional Carbon Materials Research and Comprehensive Application, Shenzhen 518055, Guangdong, PR China

Received:2025-01-08 Revised:2025-01-23 Accepted:2025-03-05 Online:2025-03-23 Published:2025-05-28
Contact: *Ying-He Zhang, E-mail: yinghe.zhang@googlemail.com (Y. zhang); Jun Liu, E-mail: junliu23@gdut.edu.cn (J. Liu)
About author:^#Qian-Ying Huang and Yue Liu contributed equally.

1. 附件.pdf(143KB)

摘要/Abstract

摘要：

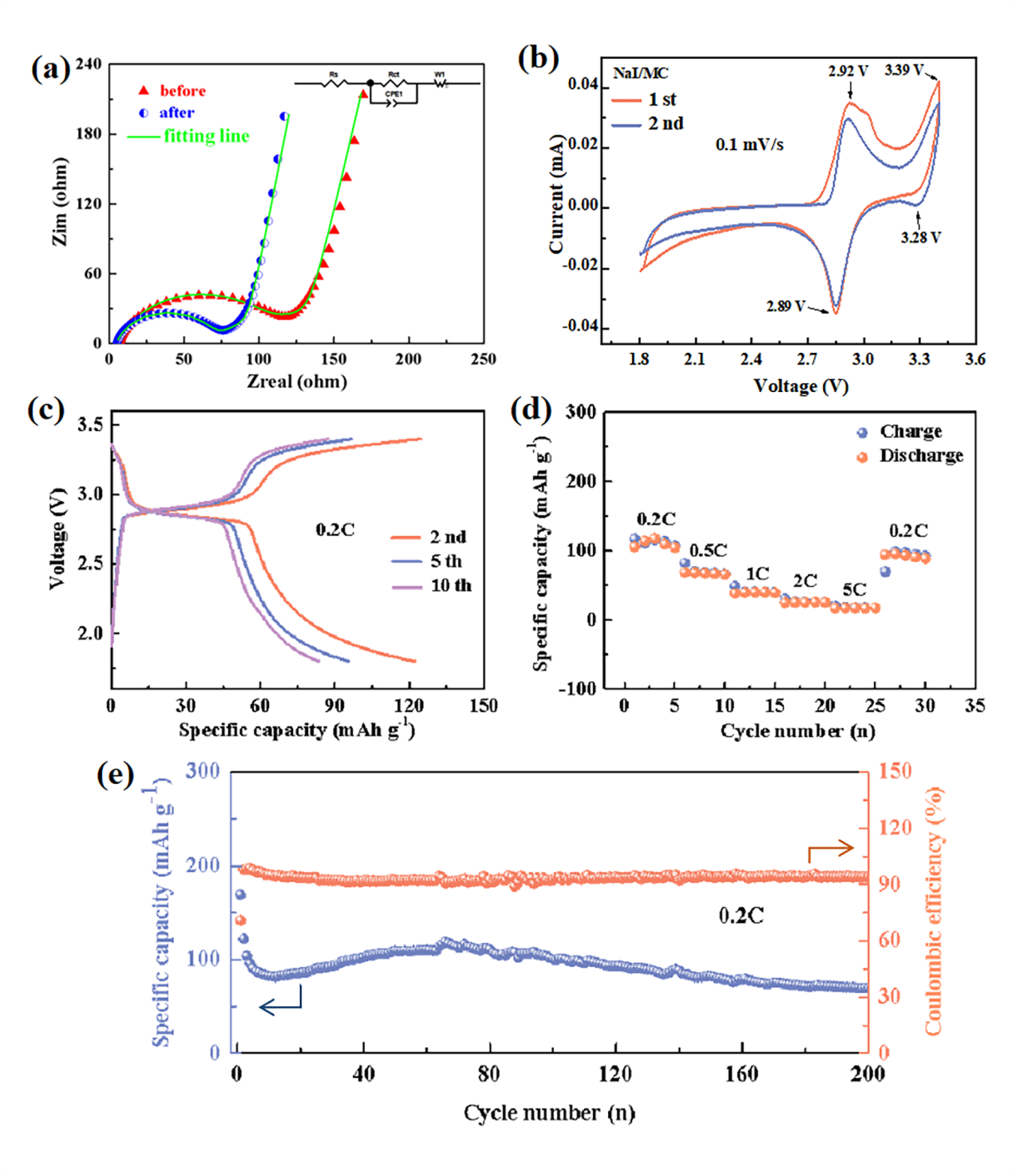

钠碘（Na-I）电池作为一种潜在的可替代锂离子电池的储能装置，展现出良好的发展前景。然而，其实际应用受到导电性差、热稳定性不足以及多碘化物溶解与穿梭效应的限制。在本研究中，我们报道了一种通过碳化商用三聚氰胺海绵制备碳海绵（MC）的新方法。所制备的MC具有独特的自生长碳纳米管结构，能够为多碘化物提供物理和化学吸附，从而有效改善Na-I2电池的电化学性能。实验结果表明，NaI/MC电极大幅降低了电化学阻抗，并减少了多碘化物的溶解效应。NaI/MC正极在200次循环测试中平均放电容量为92.75 mAh·g^-1，同时库仑效率稳定维持在94%。本研究成果展示了在储能钠离子电池领域潜在的应用前景。

关键词: 钠碘电池, 碘化钠, 三聚氰胺碳海绵

Abstract:

The sodium-iodine (Na-I) battery exhibits significant potential as an alternative energy storage device to the lithium-ion battery. However, its development is hindered by inadequate electrical and thermal stability, as well as the dissolution and shuttling of polyiodide. In this study, we report a preparation method for melamine carbon sponge (MC) via carbonizing a commercially available kitchen sponge. It was revealed that the as-prepared MC, composed of unique self-growing carbon nanotubes, could provide both physical and chemical adsorption capabilities for intermediate polyiodides to improve the electrochemical performance of NaI. Consequently, the NaI/MC electrode effectively minimized polyiodide dissolution and reduced the electrochemical impedance. The NaI/MC cathode demonstrated a high average discharge capacity of 92.75 mAh·g^-1 over 200 cycles while maintaining a coulombic efficiency of 94%. The research findings from our study have promising applications in Na-I batteries.

Key words: sodium-iodine battery, sodium iodide, melamine carbon sponge

黄倩莹, 刘悦, 林子鑫, 郑淑怡, 梅婷婷, 唐宇婷, 张颖鹤, 刘军. 三维三聚氰胺碳海绵/碘化钠复合材料作为钠离子电池正极材料的研究[J]. 电化学（中英文）, 2025, 31(5): 2501081.

Qian-Ying Huang, Yue Liu, Zi-Xin Lin, Shu-Yi Zheng, Ting-Ting Mei, Yu-Ting Tang, Ying-He Zhang, Jun Liu. Three-Dimensional Melamine Carbon Sponge/NaI as Cathode Materials for Sodium-ion Batteries[J]. Journal of Electrochemistry, 2025, 31(5): 2501081.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://electrochem.xmu.edu.cn/CN/10.61558/2993-074X.3534

https://electrochem.xmu.edu.cn/CN/Y2025/V31/I5/2501081

图/表 3

参考文献 35

[1]	Han M H, Gonzalo E, Singh G, Rojo T. A comprehensive review of sodium layered oxides: powerful cathodes for Na-ion batteries[J]. Energy Environ. Sci., 2015, 8(1): 81-102.
[2]	Xie J, Lu Y C. A retrospective on lithium-ion batteries[J]. Nat. Commun., 2020, 11(1): 2499. doi: 10.1038/s41467-020-16259-9 pmid: 32427837
[3]	Chinese Society of Electrochemistry. The top ten scientific questions in electrochemistry[J]. J. Electrochem., 2024, 30(1): 2024121.
[4]	Davidsson Kurland S. Energy use for GWh-scale lithium-ion battery production[J]. Environ. Res. Commun., 2019, 2(1): 012001.
[5]	Kallitsis E. On the energy use of battery Gigafactories[J]. J. Clean. Prod., 2022, 364: 132573.
[6]	May G J, Davidson A, Monahov B. Lead batteries for utility energy storage: A review[J]. J. Energy Storage, 2018, 15: 145-157.
[7]	Walter M, Kovalenko M V, Kravchyk K V. Challenges and benefits of post-lithium-ion batteries[J]. New J. Chem., 2020, 44(5): 1677-1683. doi: 10.1039/c9nj05682c
[8]	Wankmüller F, Thimmapuram P R, Gallagher K G, Botterud A. Impact of battery degradation on energy arbitrage revenue of grid-level energy storage[J]. J. Energy Storage, 2017, 10: 56-66.
[9]	Zhu Z X, Jiang T L, Ali M, Meng Y H, Jin Y, Cui Y, Chen W. Rechargeable batteries for grid scale energy storage[J]. Chem. Rev., 2022, 122(22): 16610-16751.
[10]	Gerbig F, Cernak S, Nirschl H. Towards a novel sodium-iodine battery with an aqueous catholyte: numerical investigations of complex cathode structures[J]. ECS Trans., 2021, 104(1): 123-130.
[11]	Mond H G, Freitag G. The cardiac implantable electronic device power source: Evolution and revolution[J]. Pacing Clin. Electrophysiol., 2014, 37(12): 1728-1745.
[12]	Yabuuchi N, Kubota K, Dahbi M, Komaba S. Research development on sodium-ion batteries[J]. Chem. Rev., 2014, 114(23): 11636-11682. doi: 10.1021/cr500192f pmid: 25390643
[13]	Kim S, Li X, Sang L, Yun Y S, Nuzzo R G, Gewirth A A, Braun P V. High energy density CNT/NaI composite cathodes for sodium‐ion batteries[J]. Adv. Mater. Interfaces, 2018, 5(23): 1801342.
[14]	Zhang Q, Wu Z Z, Liu F, Liu S, Liu J, Wang Y L, Yan T Y. Encapsulating a high content of iodine into an active graphene substrate as a cathode material for high-rate lithium-iodine batteries[J]. J. Mater. Chem. A, 2017, 5(29): 15235-15242.
[15]	Zhang Q, Zeng Y H, Ye S H, Liu S. Inclusion complexation enhanced cycling performance of iodine/carbon composites for lithium-iodine battery[J]. J. Power Sources, 2020, 463: 228212.
[16]	Zhao Q, Lu Y Y, Zhu Z Q, Tao Z L, Chen J. Rechargeable lithium-iodine batteries with iodine/nanoporous carbon cathode[J]. Nano Letters, 2015, 15(9): 5982-5987. doi: 10.1021/acs.nanolett.5b02116 pmid: 26241461
[17]	Gong D C, Wang B, Zhu J Y, Podila R, Rao A M, Yu X Z, Xu Z, Lu B G. An iodine quantum dots based rechargeable sodium-iodine battery[J]. Adv. Energy Mater., 2016, 7(3): 1601885.
[18]	Liang S, Xia Y, Liang C, Gan Y P, Huang H, Zhang J, Tao X Y, Sun W, Han W Q, Zhang W K. A green and facile strategy for the low-temperature and rapid synthesis of Li₂S@PC-CNT cathodes with high Li₂S content for advanced Li-S batteries[J]. J. Mater. Chem. A, 2018, 6(21): 9906-9914.
[19]	Wang C, Cai W L, Li G R, Liu B H, Li Z P. In situ synthesis of Li₂S‐loaded amphiphilic porous carbon and modification of the Li₂S electrode for long‐life Li₂S batteries[J]. ChemElectroChem, 2017, 5(1): 112-118.
[20]	Ye F, Noh H, Lee H, Kim H T. An ultrahigh capacity graphite/Li₂S battery with holey‐Li₂S nanoarchitectures[J]. Adv. Sci., 2018, 5(7): 1800139.
[21]	Li K D, Lin B, Li Q F, Wang H F, Zhang S, Deng C. Anchoring iodine to N-doped hollow carbon fold-hemisphere: Toward a fast and stable cathode for rechargeable lithium-iodine batteries[J]. ACS Appl. Mater. Interfaces, 2017, 9(24): 20508-20518.
[22]	Qiao L, Wang C, Zhao X S. Encapsulation of iodine in nitrogen-containing porous carbon plate arrays on carbon fiber cloth as a freestanding cathode for lithium-iodine batteries[J]. ACS Appl. Energy Mater., 2021, 4(7): 7012-7019.
[23]	Xie S M, Wang H K, Yao T H, Wang J K, Wang C D, Shi J W, Han X G, Liu T X, Cheng Y H. Embedding CoMoO₄ nanoparticles into porous electrospun carbon nanofibers towards superior lithium storage performance[J]. J. Colloid Interface Sci., 2019, 553: 320-327.
[24]	Xu H Y, Chen H, Gao C. Advanced graphene materials for sodium/potassium/aluminum-ion batteries[J]. ACS Mater. Lett., 2021, 3(8): 1221-1237.
[25]	Yang S N, Cheng Y, Xiao X, Pang H. Development and application of carbon fiber in batteries[J]. Chem. Eng. J., 2020, 384: 123294.
[26]	Lu K, Hu Z Y, Ma J Z, Ma H Y, Dai L M, Zhang J T. A rechargeable iodine-carbon battery that exploits ion intercalation and iodine redox chemistry[J]. Nat. Commun., 2017, 8(1): 527. doi: 10.1038/s41467-017-00649-7 pmid: 28904375
[27]	Wang H F, Zhang G M, Ke L L, Liu B D, Zhang S, Deng C. Understanding the effects of 3D porous architectures on promoting lithium or sodium intercalation in iodine/C cathodes synthesized via a biochemistry-enabled strategy[J]. Nanoscale, 2017, 9(27): 9365-9375. doi: 10.1039/c7nr02311a pmid: 28656181
[28]	Shan Q Y, Huo W C, Shen M, Jing C, Peng Y, Pu H, Zhang Y X. Melamine sponge derived porous carbon monoliths with NiMn oxides for high performance supercapacitor[J]. Chin. Chem. Lett., 2020, 31(9): 2245-2248.
[29]	Gopalakrishnan A, Yu A, Badhulika S. Three-dimensional nitrogen rich bubbled porous carbon sponge for supercapacitor & pressure sensing applications[J]. Int. J. Energy Res., 2020, 44(9): 7242-7253.
[30]	Jing X X, Wang L, Qu K G, Li R, Kang W J, Li H B, Xiong S L. KOH chemical-activated porous carbon sponges for monolithic supercapacitor electrodes[J]. ACS Appl. Energy Mater., 2021, 4(7): 6768-6776.
[31]	Shi H D, Yue M, Zhang C J, Dong Y F, Lu P F, Zheng S H, Huang H J, Chen J, Wen P C, Xu Z C, Zheng Q, Li X F, Yu Y, Wu Z S. 3D flexible, conductive, and recyclable Ti₃C₂T_x mxene-melamine foam for high-areal-capacity and long-lifetime alkali-metal anode[J]. ACS Nano, 2020, 14(7): 8678-8688.
[32]	Liu X Q, Yuan H L, Zheng Q, Huang B Y, Liao F, Gao H J, Fu H Q, Zhang J, Liao Y W. Understanding the adsorption sites on nitrogen- and oxygen-doped carbon nanotubes for iodine uptake[J]. Appl. Surf. Sci., 2023, 629: 157387.
[33]	Komarov N S, Pavlova T V, Andryushechkin B V. Iodine adsorption on Ni(111): STM and DFT study[J]. Surf. Sci., 2016, 651: 112-119.
[34]	Han M S, Liu J, Deng C F, Guo J C, Mu Y B, Zou Z Y, Zheng K X, Yu F H, Li Q, Wei L, Zeng L, Zhao T S. Yolk-shell structure and spin‐polarized surface capacitance enable FeS stable and fast ion transport in sodium‐ion batteries[J]. Adv. Energy Mater., 2024, 14: 2400246.
[35]	Liu J, Zheng K X, Mu Y B, Zou Z Y, Han M S, Deng C F, Guo J C, Yu F H, Li W, Wei L, Zeng L, Zhao T S. Nanosheet-interwoven structures and ion-electron decoupling storage enable Fe_1-xS fast ion transport in Li⁺/Na⁺/K⁺ batteries[J]. Nano Energy, 2024, 131: 110266.
