聚苝酰亚胺原子和电子结构的理论见解：光催化析氧活性的起源

doi:10.61558/2993-074X.3523

电化学（中英文） ›› 2025, Vol. 31 ›› Issue (5): 2418002. doi: 10.61558/2993-074X.3523

聚苝酰亚胺原子和电子结构的理论见解：光催化析氧活性的起源

王亦清, 林治, 李明涛, 沈少华^*()

国际可再生能源研究中心，动力工程多相流国家重点实验室，西安交通大学，西安 710049

收稿日期:2024-12-23 修回日期:2025-01-21 接受日期:2025-02-07 发布日期:2025-02-08 出版日期:2025-05-28

Theoretical Insights into the Atomic and Electronic Structures of Polyperyleneimide: On the Origin of Photocatalytic Oxygen Evolution Activity

Yi-Qing Wang, Zhi Lin, Ming-Tao Li, Shao-Hua Shen^*()

International Research Center for Renewable Energy, State Key Laboratory of Multiphase Flow in Power Engineering, Xi'an Jiaotong University, Xi'an, China

Received:2024-12-23 Revised:2025-01-21 Accepted:2025-02-07 Online:2025-02-08 Published:2025-05-28
Contact: *Shao-Hua Shen, E-mail: shshen_xjtu@mail.xjtu.edu.cn

1. 附件.pdf(1858KB)

摘要/Abstract

摘要：

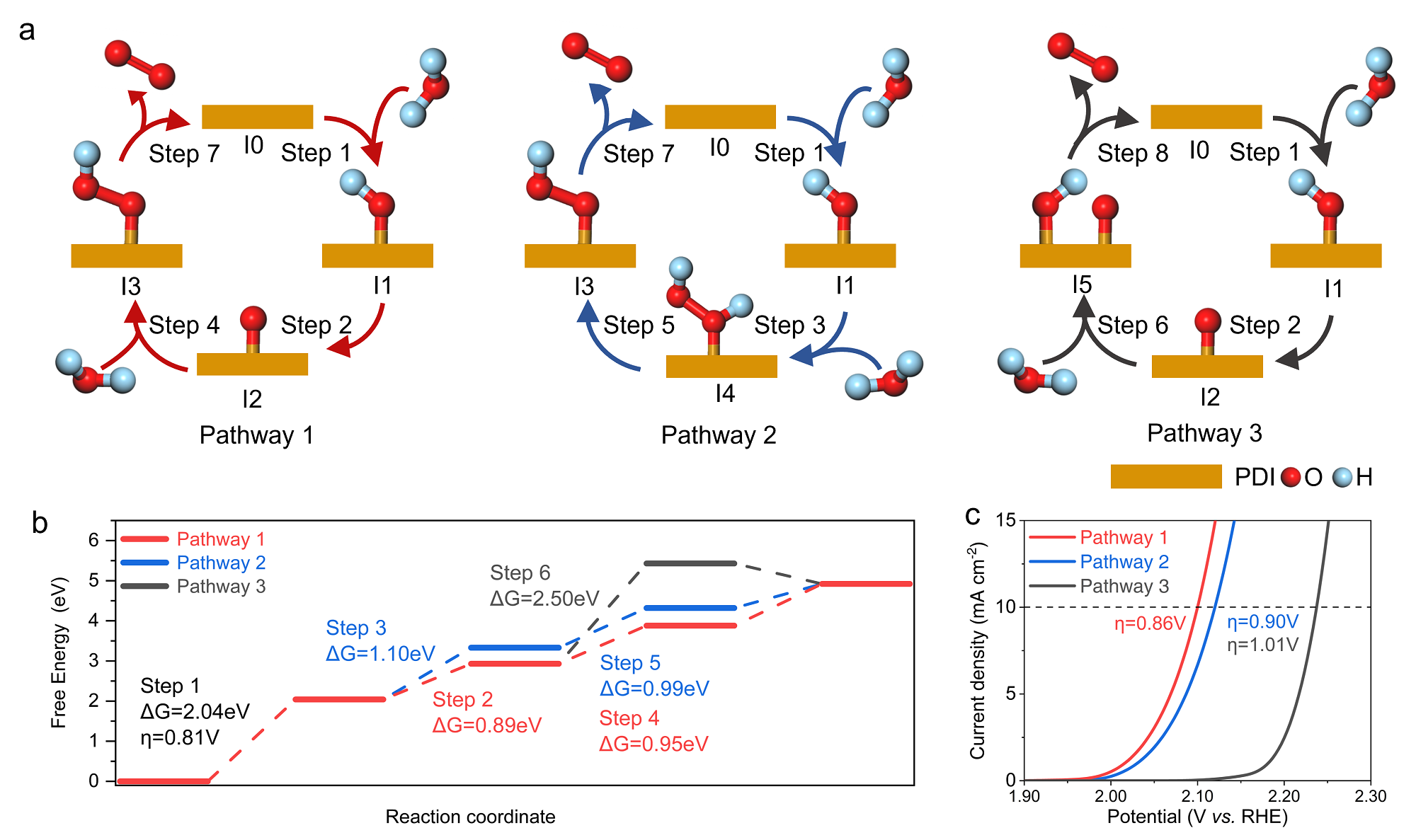

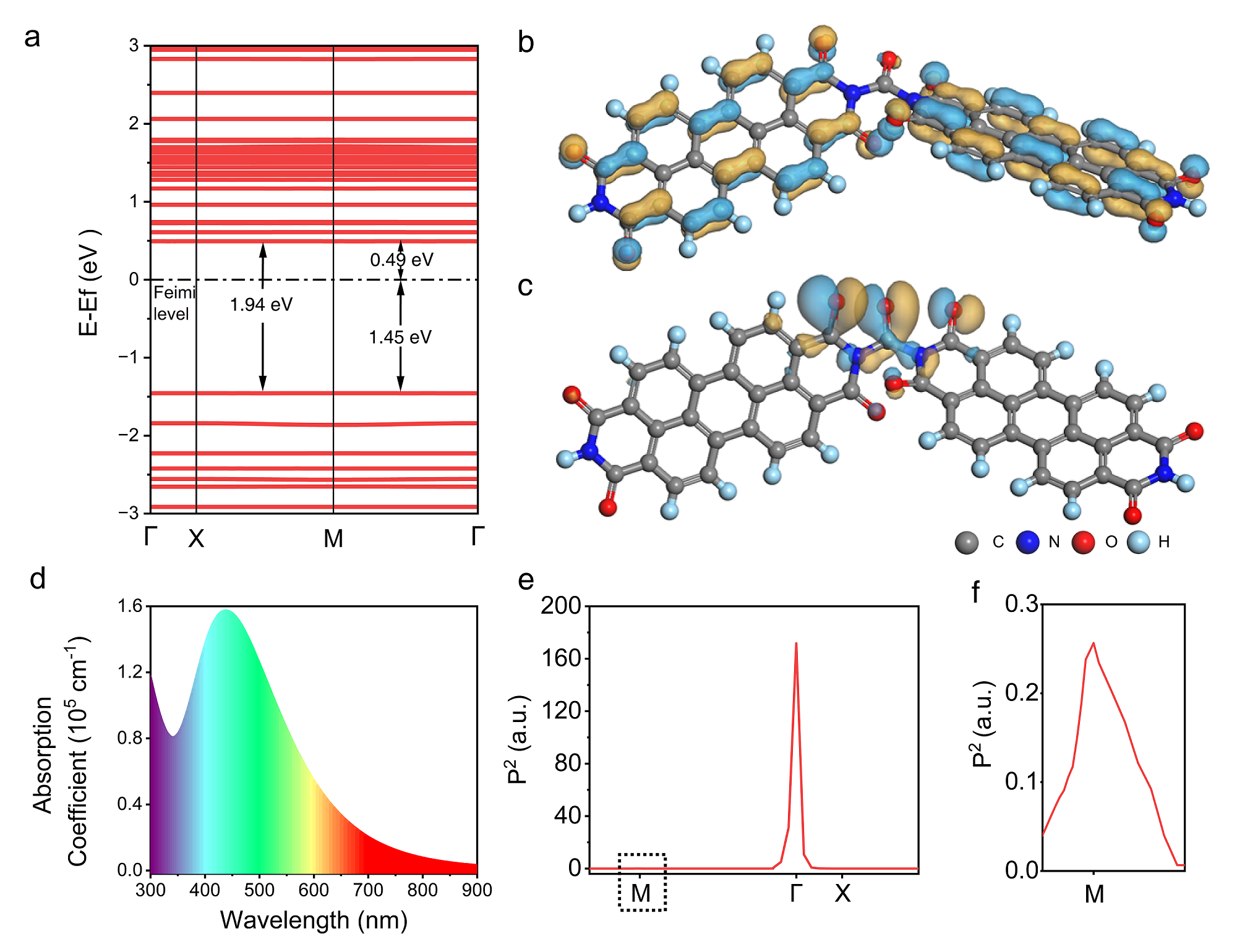

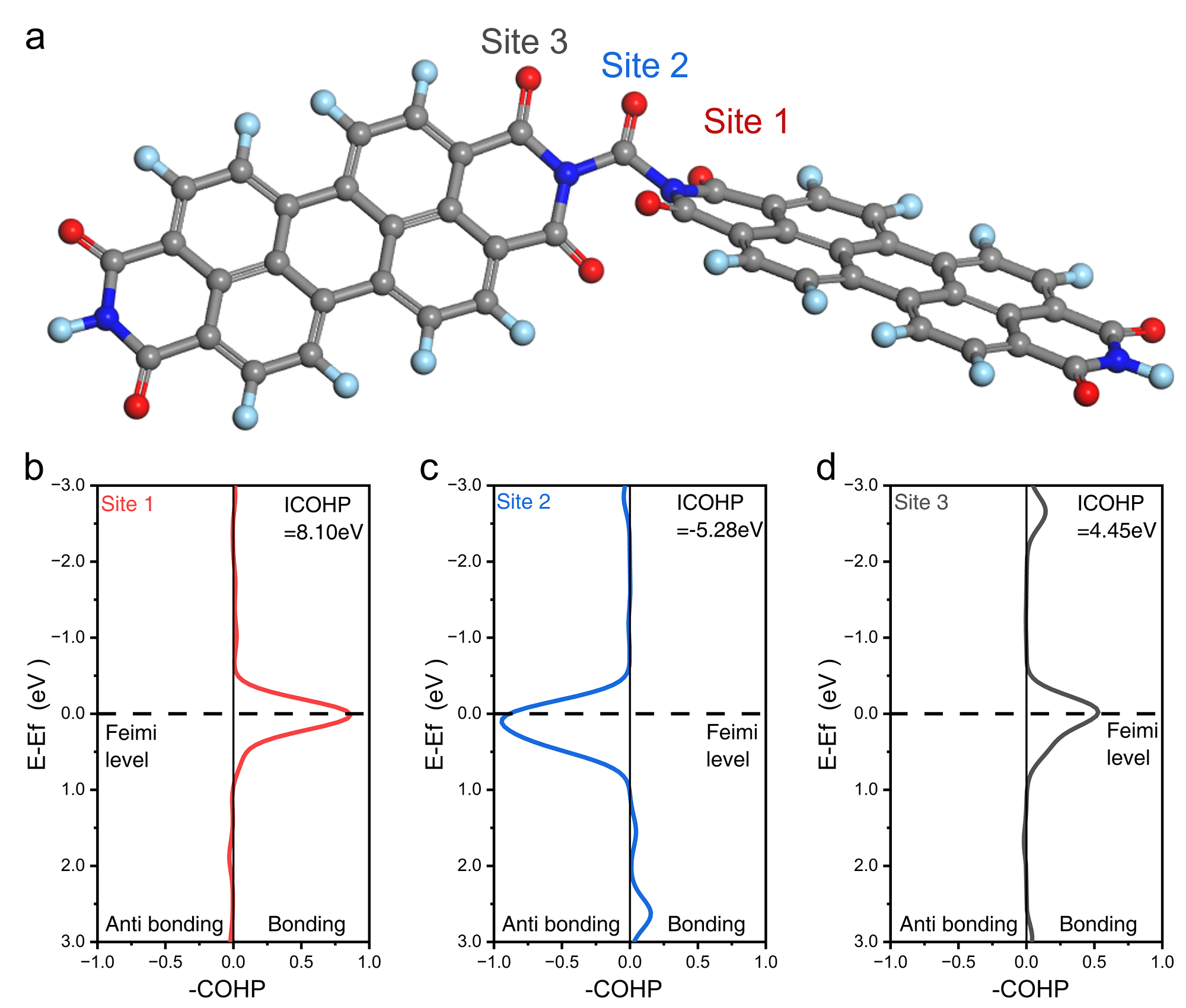

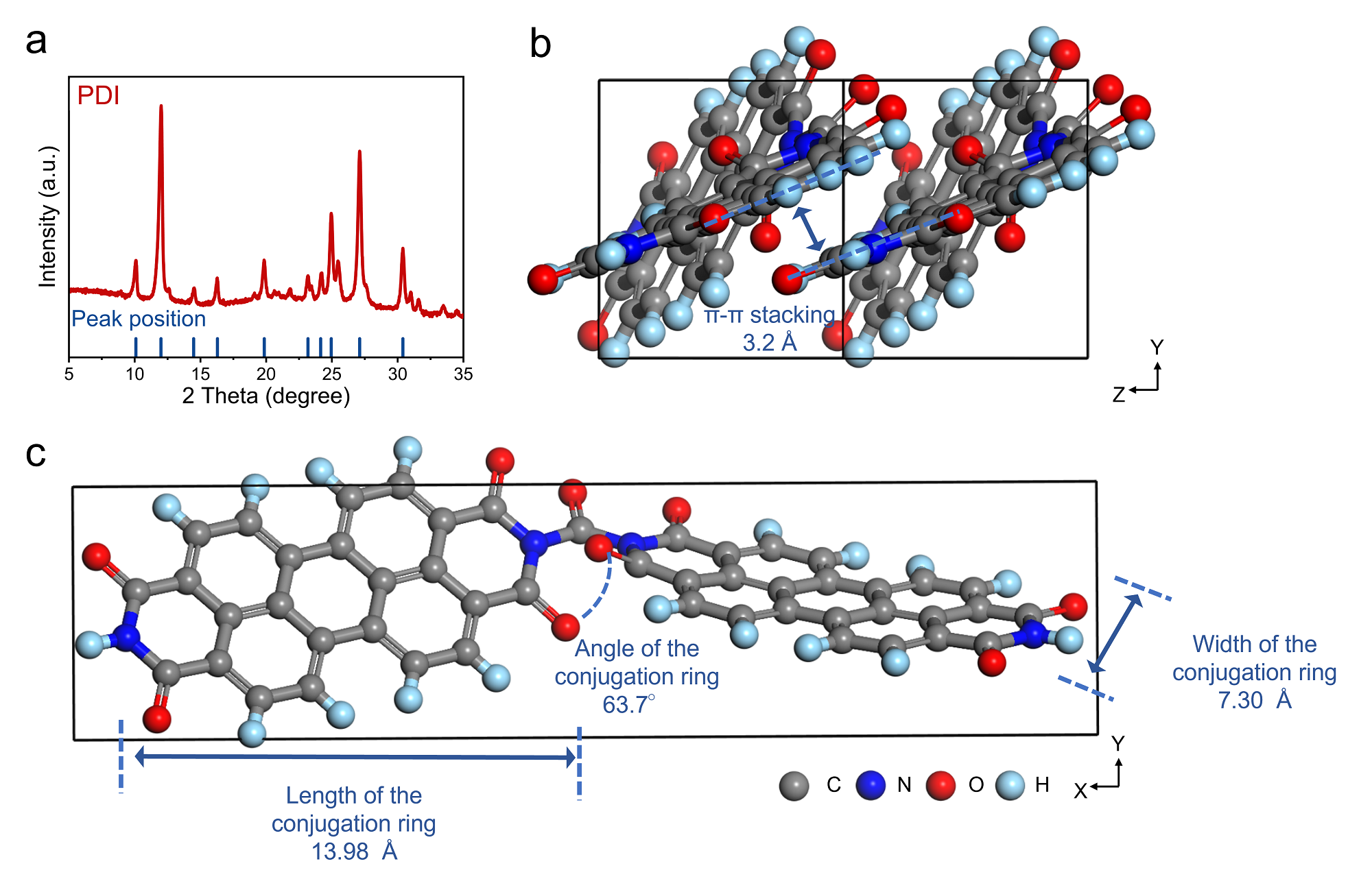

聚苝酰亚胺被认为是光催化析氧的优异候选材料，但其光催化析氧反应活性的来源仍需要进一步的探索。本文基于X射线衍射谱解析了自组装合成聚苝酰亚胺的晶体和原子结构，并利用第一原理密度泛函理论计算阐明其电子结构，证实聚苝酰亚胺具有适合光催化析氧反应的能带结构和优异的电子激发效率。晶体轨道哈密顿布居分析证实，共轭结构中尿素和苝环之间的羰基氧原子是光催化析氧的反应活性位点。反应自由能变化计算表明，聚苝酰亚胺表面的光催化析氧反应遵循H₂O → *OH → *O → *OOH → *O₂的反应路径，过电位为0.81 V。通过对原子结构和电子结构的理论研究，本文阐明了聚苝酰亚胺光催化析氧反应的活性起源，为高效光催化析氧聚合物光催化剂的设计和改性提供理论指导。

关键词: 光催化析氧反应, 聚苝酰亚胺, 原子结构, 电子结构, 反应路径

Abstract:

Polymeric perylene diimide (PDI) has been evidenced as a good candidate for photocatalytic water oxidation, yet the origin of the photocatalytic oxygen evolution activity remains unclear and needs further exploration. Herein, with crystal and atomic structures of the self-assembled PDI revealed from the X-ray diffraction pattern, the electronic structure is theoretically illustrated by the first-principles density functional theory calculations, suggesting the suitable band structure and the direct electronic transition for efficient photocatalytic oxygen evolution over PDI. It is confirmed that the carbonyl O atoms on the conjugation structure serve as the active sites for oxygen evolution reaction by the crystal orbital Hamiltonian group analysis. The calculations of reaction free energy changes indicate that the oxygen evolution reaction should follow the reaction pathway of H₂O → *OH → *O → *OOH → *O₂ with an overpotential of 0.81 V. Through an in-depth theoretical computational analysis in the atomic and electronic structures, the origin of photocatalytic oxygen evolution activity for PDI is well illustrated, which would help the rational design and modification of polymeric photocatalysts for efficient oxygen evolution.

Key words: Photocatalytic oxygen evolution, Polymeric perylene diimide, Atomic structure, Electronic structure, Reaction pathway

王亦清, 林治, 李明涛, 沈少华. 聚苝酰亚胺原子和电子结构的理论见解：光催化析氧活性的起源[J]. 电化学（中英文）, 2025, 31(5): 2418002.

Yi-Qing Wang, Zhi Lin, Ming-Tao Li, Shao-Hua Shen. Theoretical Insights into the Atomic and Electronic Structures of Polyperyleneimide: On the Origin of Photocatalytic Oxygen Evolution Activity[J]. Journal of Electrochemistry, 2025, 31(5): 2418002.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://electrochem.xmu.edu.cn/CN/10.61558/2993-074X.3523

https://electrochem.xmu.edu.cn/CN/Y2025/V31/I5/2418002

图/表 4

参考文献 26

[1]	Fujishima A, Honda K. Electrochemical photolysis of water at a semiconductor electrode[J]. Nature, 1972, 238(5358): 37-38.
[2]	Wang Z, Li C, Domen K. Recent developments in heterogeneous photocatalysts for solar-driven overall water splitting[J]. Chem. Soc. Rev., 2019, 48(7): 2109-2125. doi: 10.1039/c8cs00542g pmid: 30328438
[3]	Wang Y Q, Zhao D M, Deng H, Li M T, Chen J, Shen S H. Theoretical insights into the limitation of photocatalytic overall water splitting performance of via group elements doped polymeric carbon nitride: a density functional theory calculation predicting solar-to-hydrogen efficiency[J]. Solar RRL, 2021, 5(6): 2000630.
[4]	Rahman M Z, Edvinsson T, Gascon J. Hole utilization in solar hydrogen production[J]. Nat. Rev. Chem., 2022, 6(4): 243-258. doi: 10.1038/s41570-022-00366-w pmid: 37117865
[5]	Wang Y, Vogel A, Sachs M, Sprick R S, Wilbraham L, Moniz S J A, Godin R, Zwijnenburg M A, Durrant J R, Cooper A I, Tang J. Current understanding and challenges of solar-driven hydrogen generation using polymeric photocatalysts[J]. Nat. Energy, 2019, 4(9): 746-760.
[6]	Zhang G G, Huang C J, Wang X C. Dispersing molecular cobalt in graphitic carbon nitride frameworks for photocatalytic water oxidation[J]. Small, 2015, 11(9-10): 1215-1221. doi: 10.1002/smll.201402636 pmid: 25302641
[7]	Zhao D M, Dong C L, Wang B, Chen C, Huang Y C, Diao Z D, Li S Z, Guo L J, Shen S H. Synergy of dopants and defects in graphitic carbon nitride with exceptionally modulated band structures for efficient photocatalytic oxygen evolution[J]. Adv. Mater., 2019, 31(43): 1903545.
[8]	Zhao D M, Wang Y Q, Dong C L, Huang Y C, Chen J, Xue F, Shen S H, Guo L J. Boron-doped nitrogen-deficient carbon nitride-based Z-scheme heterostructures for photocatalytic overall water splitting[J]. Nat. Energy, 2021, 6(4): 388-397.
[9]	Yang B, Lu L L, Liu S Y, Cheng W J, Liu H, Huang C, Meng X T, Rodriguez R D, Jia X. Recent progress in perylene diimide supermolecule-based photocatalysts[J]. J. Mater. Chem. A, 2024, 12(7): 3807-3843.
[10]	Zhang Z J, Chen X J, Zhang H J, Liu W X, Zhu W, Zhu Y F. A highly crystalline perylene imide polymer with the robust built-in electric field for efficient photocatalytic water oxidation[J]. Adv. Mater., 2020, 32(32): 1907746.
[11]	Lin Z, Wang Y Q, Peng Z M, Huang Y C, Meng F Q, Chen J L, Dong C L, Zhang Q H, Wang R Z, Zhao D M. Single‐metal atoms and ultra‐small clusters manipulating charge carrier migration in polymeric perylene diimide for efficient photocatalytic oxygen production[J]. Adv. Energy Mater., 2022, 12(26): 2200716.
[12]	Kresse G, Furthmüller J. Efficient iterative schemes for Ab initio total-energy calculations using a plane-wave basis set[J]. Phys. Rev. B, 1996, 54(16): 11169-11186. doi: 10.1103/physrevb.54.11169 pmid: 9984901
[13]	Kresse G, Hafner J. Norm-conserving and ultrasoft pseudopotentials for first-row and transition elements[J]. J. Phys. Cond. Matter, 1994, 6(40): 8245.
[14]	Perdew J P, Burke K, Ernzerhof M. Generalized gradient approximation made simple[J]. Phys. Rev. Lett., 1996, 77(18): 3865-3868. doi: 10.1103/PhysRevLett.77.3865 pmid: 10062328
[15]	Bučko T, Lebègue S, Hafner J, Ángyán JG. Tkatchenko-Scheffler Van Der Waals correction method with and without self-consistent screening applied to solids[J]. Phys. Rev. B, 2013, 87(6): 064110.
[16]	Nørskov J K, Rossmeisl J, Logadottir A, Lindqvist L, Kitchin J R, Bligaard T, Jónsson H. Origin of the overpotential for oxygen reduction at a fuel-cell cathode[J]. J. Phys. Chem. B, 2004, 108(46): 17886-17892.
[17]	Medford A J, Shi C, Hoffmann M J, Lausche A C, Fitzgibbon S R, Bligaard T, Nørskov J K. Catmap: A Software package for descriptor-based microkinetic mapping of catalytic trends[J]. Catal. Lett., 2015, 145(3): 794-807.
[18]	Kibsgaard J, Jaramillo TF. Molybdenum phosphosulfide: an active, acid-stable, earth-abundant catalyst for the hydrogen evolution reaction[J]. Angew. Chem. Int. Ed., 2014, 53(52): 14433-14437. doi: 10.1002/anie.201408222 pmid: 25359678
[19]	Boultif A, Louër D. Indexing of powder diffraction patterns for low-symmetry lattices by the successive dichotomy method[J]. J. Appl. Cryst., 1991, 24(6): 987-993.
[20]	Qin J Y, Shu Q W, Yuan Y, Qiu W, Xiao L H, Peng P, Lu G S. First-principles investigation on electronic structure and solar radiation shielding performance of Tl_0.33Wo₃[J]. Acta Phys. Sin., 2020, 69(4): 047102-047101-047102-047107.
[21]	Luo J J, Wang X M, Li S R, Liu J, Guo Y M, Niu G D, Yao L, Fu Y H, Gao L, Dong Q S, Zhao C Y, Leng M Y, Ma F S, Liang W X, Wang L D, Jin S Y, Han J B, Zhang L J, Etheridge J, Wang J B, Yan Y F, Sargent E H, Tang J. Efficient and stable emission of warm-white light from lead-free halide double perovskites[J]. Nature, 2018, 563(7732): 541-545.
[22]	Yi Y W, Quan C Y, Long F, Pu Y, Li X A. Exploring the thickness dependent photocatalytic oxygen evolution performance for Bi₄TaO₈Cl two-dimensional semiconductor[J]. Appl. Surf. Sci., 2021, 539: 148193.
[23]	Sze S M, Ng K K. Physics of semiconductor devices[M]. Berlin, Germany: Springer, 2006.
[24]	Deringer V L, Tchougréeff A L, Dronskowski R. Crystal orbital hamilton population (COHP) analysis as projected from plane-wave basis sets[J]. J. Phys. Chem. A, 2011, 115(21): 5461-5466. doi: 10.1021/jp202489s pmid: 21548594
[25]	Wang Z Q, Zheng Z Q, Xue Y R, He F, Li Y L. Acidic water oxidation on quantum dots of IrO_x/graphdiyne[J]. Adv. Energy Mater., 2021, 11(32): 2101138.
[26]	Lin S, Ye X, Gao X, Huang J. Mechanistic insight into the water photooxidation on pure and sulfur-doped g-C₃N₄ photocatalysts from DFT calculations with dispersion corrections[J]. J. Mol. Catal. A: Chem., 2015, 406: 137-144.
