平面与非平面型钴基分子催化剂的二氧化碳电还原行为特征

doi:10.61558/2993-074X.3610

电化学（中英文） ›› 2026, Vol. 32 ›› Issue (6): 2603301. doi: 10.61558/2993-074X.3610

平面与非平面型钴基分子催化剂的二氧化碳电还原行为特征

贾茹, 朱成标, 张子墨, 王托, 杨铠聪, 王光喆, 胡杨, 张婷婷, 魏振威, 肖丽, 王功伟^*()(), 庄林^*()()

化学与分子科学学院，化学电源材料与技术湖北省重点实验室，武汉大学，湖北武汉 430072，中国

收稿日期:2026-01-22 修回日期:2026-03-05 接受日期:2026-04-09 发布日期:2026-04-09 出版日期:2026-06-28

Distinct CO₂ Electroreduction Behaviors over Planar and Non-Planar Cobalt Molecular Catalysts

Ru Jia, Cheng-Biao Zhu, Zi-Mo Zhang, Tuo Wang, Kai-Cong Yang, Guang-Zhe Wang, Yang Hu, Ting-Ting Zhang, Zhen-Wei Wei, Li Xiao, Gong-Wei Wang^*()(), Lin Zhuang^*()()

College of Chemistry and Molecular Sciences, Hubei Key Lab of Electrochemical Power Sources, Wuhan University, Wuhan 430072, China

Received:2026-01-22 Revised:2026-03-05 Accepted:2026-04-09 Online:2026-04-09 Published:2026-06-28
Contact: *E-mail:gwwang@whu.edu.cn(G.-W. Wang), lzhuang@whu.edu.cn(L. Zhuang)
About author:Author contributions
Ru Jia was responsible for the experimental design, implementation, data analysis, and writing of the original draft. Cheng-Biao Zhu and Zi-Mo Zhang conducted the in-situ HRMS measurements. Tuo Wang, Kai-Cong Yang, Guang-Zhe Wang, Yang Hu, Ting-Ting Zhang, Zhen-Wei Wei, and Li Xiao assisted in experimental implementation and data analysis. Gong-Wei Wang and Lin Zhuang supervised the research and revised the manuscript.

1. JOE2601221SI.pdf(2875KB)

摘要/Abstract

摘要：

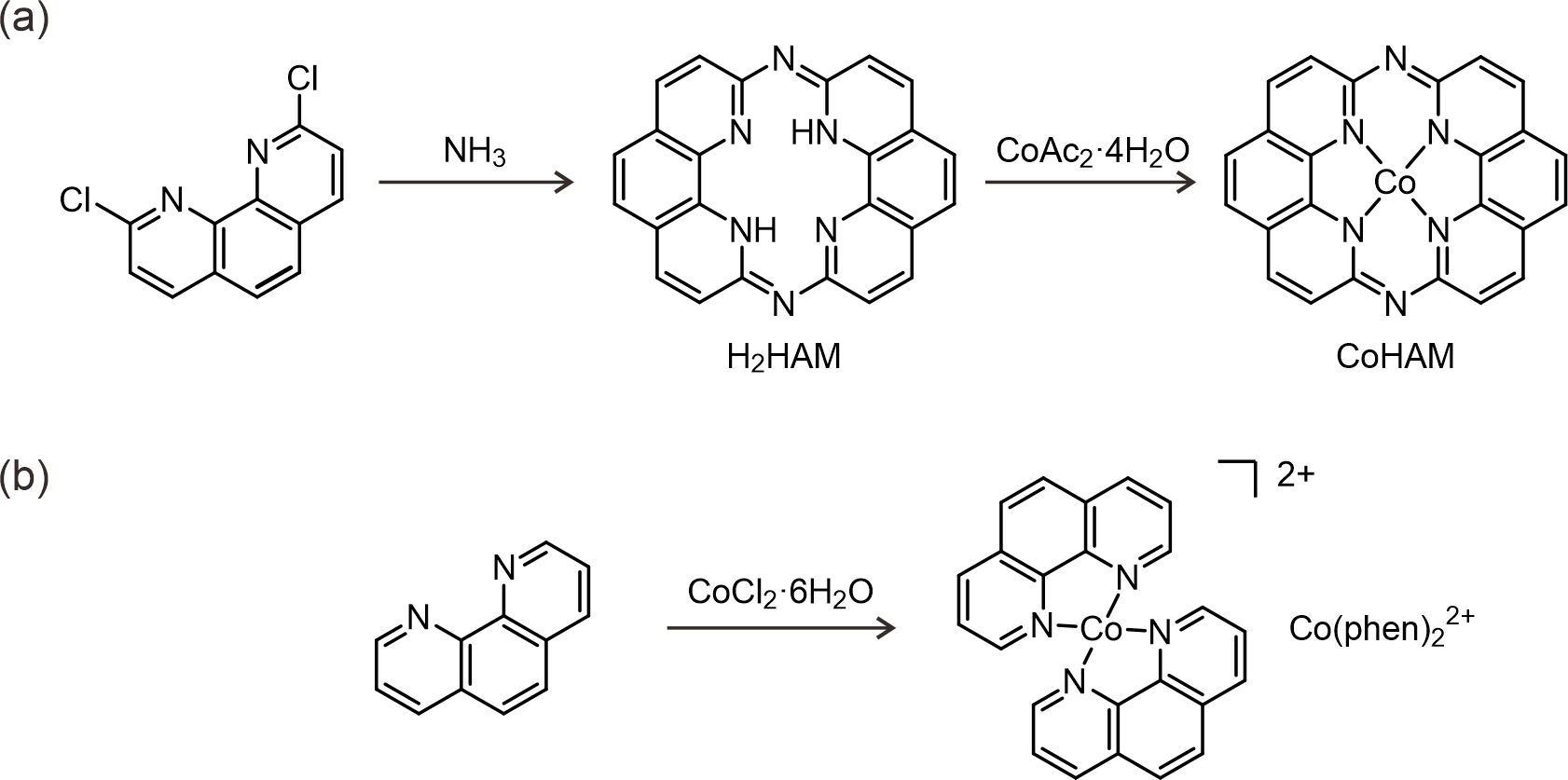

分子催化剂凭借其结构明确、易于调控的优势，为电催化反应机理研究提供了理想平台。然而，当前研究主要集中于中心金属或外围配体的调控作用，空间构型对分子催化剂性能的影响仍缺乏系统探索。基于此，本文合成了两种具有相似配位环境但空间构型不同的钴基配合物——平面型六氮杂大环钴配合物（CoHAM）与非平面型不成环钴配合物Co(phen)₂Cl₂，并系统考察了二者在电催化二氧化碳还原反应中的特征行为。结果发现，平面型CoHAM的二氧化碳还原性能显著优于非平面型Co(phen)₂Cl₂。为了理解性能差异的根源，进一步结合原位紫外可见光谱、高分辨质谱以及拉曼光谱技术，揭示出二者催化二氧化碳还原中不同的关键中间体与反应路径。这些发现指明分子催化剂空间构型对电催化性能的关键影响，亦为高效二氧化碳还原催化剂的理性设计提供了新思路。

关键词: 分子催化剂, 空间构型, 六氮杂大环钴配合物, 二氧化碳还原反应, 催化机理

Abstract:

Molecular catalysts serve as ideal platforms for studying electrocatalytic reaction mechanisms. While current research mainly focuses on modulating central metals or surrounding ligands, the influence of molecular spatial configuration remains largely unexplored. Herein, we synthesized two cobalt complexes with similar ligand environments but distinct spatial geometries, a planar cobalt hexaazamacrocyclic complex (CoHAM) and a non-planar acyclic Co(phen)₂Cl₂, and evaluated their performance in CO₂ reduction reaction (CO₂RR). The planar CoHAM exhibited dramatically superior CO₂RR performance compared to the non-planar Co(phen)₂Cl₂. Through a series of combined analyses using in-situ UV-vis spectroscopy, high-resolution mass spectrometry (HRMS), and Raman spectroscopy, we elucidated the origins of this performance gap by identifying key intermediates and reaction pathways. These findings underscore the critical role of the spatial configuration of molecular catalysts in governing electrocatalytic performance and provide a strategic direction for the rational design of efficient CO₂RR catalysts.

Key words: Molecular catalyst, Spatial configuration, Cobalt hexaazamacrocyclic complex, CO₂ reduction reaction, Catalytic mechanism

贾茹, 朱成标, 张子墨, 王托, 杨铠聪, 王光喆, 胡杨, 张婷婷, 魏振威, 肖丽, 王功伟, 庄林. 平面与非平面型钴基分子催化剂的二氧化碳电还原行为特征[J]. 电化学（中英文）, 2026, 32(6): 2603301.

Ru Jia, Cheng-Biao Zhu, Zi-Mo Zhang, Tuo Wang, Kai-Cong Yang, Guang-Zhe Wang, Yang Hu, Ting-Ting Zhang, Zhen-Wei Wei, Li Xiao, Gong-Wei Wang, Lin Zhuang. Distinct CO₂ Electroreduction Behaviors over Planar and Non-Planar Cobalt Molecular Catalysts[J]. Journal of Electrochemistry, 2026, 32(6): 2603301.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://electrochem.xmu.edu.cn/CN/10.61558/2993-074X.3610

https://electrochem.xmu.edu.cn/CN/Y2026/V32/I6/2603301

图/表 4

参考文献 33

[1]	Zeng Y Q, Zhao J, Wang S F, Wang W J, Lu Y R, Xi S B, Xu W, Yoda Y, Masuda R, Li X N, Huang Y Q, Liu B, Zhang T. Unraveling the dynamic low-spin state evolution of single-Fe-atom sites for efficient CO₂ electroreduction[J]. J. Am. Chem. Soc., 2025, 147(46): 42539-42548. https://doi.org/10.1021/jacs.5c13466.
[2]	Francke R, Schille B, Roemelt M. Homogeneously catalyzed electroreduction of carbon dioxide—methods, mechanisms, and catalysts[J]. Chem. Rev., 2018, 118(9): 4631-4701. https://doi.org/10.1021/acs.chemrev.7b00459. doi: 10.1021/acs.chemrev.7b00459 URL pmid: 29319300
[3]	Jin S, Hao Z M, Zhang K, Yan Z H, Chen J. Advances and challenges for the electrochemical reduction of CO₂ to CO: from fundamentals to industrialization[J]. Angew. Chem. Int. Ed., 2021, 60(38): 20627-20648. https://doi.org/10.1002/anie.202101818. doi: 10.1002/anie.v60.38 URL
[4]	Boutin E, Merakeb L, Ma B, Boudy B, Wang M, Bonin J, Anxolabéhère-Mallart E, Robert M. Molecular catalysis of CO₂ reduction: recent advances and perspectives in electrochemical and light-driven processes with selected Fe, Ni and Co aza macrocyclic and polypyridine complexes[J]. Chem. Soc. Rev., 2020, 49(16): 5772-5809. https://doi.org/10.1039/D0CS00218F. doi: 10.1039/D0CS00218F URL
[5]	Kortlever R, Shen J, Schouten K J P, Calle-Vallejo F, Koper M T M. Catalysts and reaction pathways for the electrochemical reduction of carbon dioxide[J]. J. Phys. Chem. Lett., 2015, 6(20): 4073-4082. https://doi.org/10.1021/acs.jpclett.5b01559. doi: 10.1021/acs.jpclett.5b01559 URL pmid: 26722779
[6]	Su D J, Xiang S Q, Gao S T, Jiang Y M, Liu X H, Zhang W, Zhao L B, Tian Z Q. Kinetic understanding of catalytic selectivity and product distribution of electrochemical carbon dioxide reduction reaction[J]. JACS Au, 2023, 3(3): 905-918. https://doi.org/10.1021/jacsau.3c00002. doi: 10.1021/jacsau.3c00002 URL
[7]	Saha P, Amanullah S, Dey A. Selectivity in electrochemical CO₂ reduction[J]. Acc. Chem. Res., 2022, 55(2): 134-144. https://doi.org/10.1021/acs.accounts.1c00678. doi: 10.1021/acs.accounts.1c00678 URL
[8]	Xue Y Y, Zhang L J, Kuang M, Zheng G F. Tuning the CO₂ and CO electroreduction by rate-determining and selectivity-determining steps[J]. ACS Appl. Mater. Interfaces, 2025, 17(8): 11375-11388. https://doi.org/10.1021/acsami.4c21239. doi: 10.1021/acsami.4c21239 URL
[9]	Lin Y X, Wang S C, Liu H J, Liu X, Yang L, Su X Z, Shan L, Li X Y, Song L. Regulating the electrocatalytic active centers for accelerated proton transfer towards efficient CO₂ reduction[J]. Natl. Sci. Rev., 2025, 12(3): nwaf010. https://doi.org/10.1093/nsr/nwaf010.
[10]	Wang H, Ma C Q, Lu Q P, Gu M Z, Jiang L, Hao Y X, Hu F, Li L L, Wang G F, Peng S J, Zhang X J. Precise tuning of functional group spatial distribution on porphyrin rings for enhanced CO₂ electroreduction selectivity[J]. Angew. Chem. Int. Ed., 2025, 64(19): e202501091. https://doi.org/10.1002/anie.202501091. doi: 10.1002/anie.v64.19 URL
[11]	Wang Y, Ma F Y, Zhang P F, Zhang G Q, Zhao Z H, Zheng X B, Zhao H, Zhang J W, Dong Y M, Zhu Y F. Tuning CO-CHO dimerization via twisted electron localization of asymmetrically coordinated Cu-Cu dual sites by P and N scatterings boosts CO₂ electroreduction[J]. ACS Catal., 2025, 15(21): 17703-17714. https://doi.org/10.1021/acscatal.5c04995. doi: 10.1021/acscatal.5c04995 URL
[12]	Xiong L, Zhan S Q, Di Ciano L, Li S S, Liu R M, Lu S J, Yao P, Fu X B, Yue Q. Elucidating the donor/acceptor regulatory mechanism for CO₂ electroreduction[J]. Adv. Mater., 2025, e12478. https://doi.org/10.1002/adma.202512478.
[13]	Liu N, Pham T M, Han Y N, Yang L F, Bokareva O S, Bartling S, Springer A, Spannenberg A, Kubis C, Weiss J, Doronkin D E, Ju W, Francke R. Heterogenized copper(II) phenanthroline catalysts for electroreduction of CO₂ to C₂ compounds: substitution on the ligand causes structural changes to the molecular framework and stability enhancement[J]. Adv. Mater., 2025, 38(3): e13702. https://doi.org/10.1002/adma.202513702. doi: 10.1002/adma.v38.3 URL
[14]	Yang Z W, Chen J M, Qiu L Q, Xie W J, He L N. Molecular engineering of metal complexes for electrocatalytic carbon dioxide reduction: from adjustment of intrinsic activity to molecular immobilization[J]. Angew. Chem. Int. Ed., 2022, 61(44): e202205301. https://doi.org/10.1002/anie.202205301. doi: 10.1002/anie.v61.44 URL
[15]	Kong X D, Zhu J C, Xu Z F, Geng Z G. Fundamentals and challenges of ligand modification in heterogeneous electrocatalysis[J]. Angew. Chem. Int. Ed., 2025, 64(1): e202417562. https://doi.org/10.1002/anie.202417562. doi: 10.1002/anie.v64.1 URL
[16]	Zhang D A, Liu X, Zhao Y, Zhang H, Rudnev A V, Li J F. In situ Raman spectroscopic studies of CO₂ reduction reactions: from catalyst surface structures to reaction mechanisms[J]. Chem. Sci., 2025, 16(12): 4916-4936. https://doi.org/10.1039/D5SC00569H. doi: 10.1039/D5SC00569H URL
[17]	Li X D, Wang S M, Li L, Sun Y F, Xie Y. Progress and perspective for in situ studies of CO₂ reduction[J]. J. Am. Chem. Soc., 2020, 142(21): 9567-9581. https://doi.org/10.1021/jacs.0c02973.
[18]	Ren X Y, Zhao J, Li X N, Shao J M, Pan B B, Salamé A, Boutin E, Groizard T, Wang S F, Ding J, Zhang X, Huang W Y, Zeng W J, Liu C Y, Li Y G, Hung S F, Huang Y Q, Robert M, Liu B. In-situ spectroscopic probe of the intrinsic structure feature of single-atom center in electrochemical CO/CO₂ reduction to methanol[J]. Nat. Commun., 2023, 14(1): 3401. https://doi.org/10.1038/s41467-023-39153-6. doi: 10.1038/s41467-023-39153-6 URL
[19]	Sakamoto N, Sekizawa K, Shirai S, Nonaka T, Arai T, Sato S, Morikawa T. Dinuclear Cu(I) molecular electrocatalyst for CO₂-to-C₃ product conversion[J]. Nat. Catal., 2024, 7(5): 574-584. https://doi.org/10.1038/s41929-024-01147-y. doi: 10.1038/s41929-024-01147-y URL
[20]	Wu M J, Yang S Y, Gao Y, Chen Z S, Dong F, Lei H Y, Yang Y K, Chen N, Omanovic S, Regier T, Cui X, Xia B Y, Zhang G X, Sun S H. Steering CO₂ electroreduction pathway via tuning microenvironment of cobalt center in molecular catalysts[J]. ACS Nano, 2025, 19(36): 32507-32517. https://doi.org/10.1021/acsnano.5c09554. doi: 10.1021/acsnano.5c09554 URL
[21]	Yang H Z, Guo N, Xi S B, Wu Y, Yao B Q, He Q, Zhang C, Wang L. Potential-driven structural distortion in cobalt phthalocyanine for electrocatalytic CO₂/CO reduction towards methanol[J]. Nat. Commun., 2024, 15(1): 7703. https://doi.org/10.1038/s41467-024-52168-x. doi: 10.1038/s41467-024-52168-x URL
[22]	Ogawa S, Yamaguchi T, Gotoh N. Preparation of a conjugated tautomer of 1,14:7,8-diethenotetrapyrido-[2,1,6-de:2',1',6'-gh:2'',1'',6''-kl:2''',1''',6'''-na][1,3,5,8,10,12]hexa-azacyclotetradecine and its metal derivatives[J]. J. Chem. Soc., Perkin Trans. 1, 1974: 976-978. https://doi.org/10.1039/P19740000976.
[23]	Jiang Y, Jung H, Joo S H, Sun Q K, Li C Q, Noh H J, Oh I, Kim Y J, Kwak S K, Yoo J W, Baek J B. Catalyst- and solvent-free synthesis of a chemically stable aza-bridged bis(phenanthroline) macrocycle-linked covalent organic framework[J]. Angew. Chem. Int. Ed., 2021, 60(31): 17191-17197. https://doi.org/10.1002/anie.202106389. doi: 10.1002/anie.202106389 URL pmid: 34114283
[24]	Hennig H, Benedix R, Hempel K, Reinhold J. Zur Konstitution von Bis-(phenanthrolin)-kobalt(II)-Komplexen[J]. Z. Anorg. Allg. Chem., 1975, 412(2): 141-147. https://doi.org/10.1002/zaac.19754120206. doi: 10.1002/zaac.v412:2 URL
[25]	Isaacs M, Canales J C, Riquelme A, Lucero M, Aguirre M J, Costamagna J. Contribution of the ligand to the electroreduction of CO₂ catalyzed by a cobalt(II) macrocyclic complex[J]. J. Coord. Chem., 2003, 56(14): 1193-1201. https://doi.org/10.1080/00958970310001624447. doi: 10.1080/00958970310001624447 URL
[26]	Chen X J, Ren H, Peng W, Zhang H M, Lu J T, Zhuang L. Highly efficient molecular cobalt electrode for (photo)electrochemical hydrogen evolution[J]. J. Phys. Chem. C, 2014, 118(36): 20791-20798. https://doi.org/10.1021/jp5061792. doi: 10.1021/jp5061792 URL
[27]	Zhang X, Wu Z S, Zhang X, Li L W, Li Y Y, Xu H M, Li X X, Yu X L, Zhang Z S, Liang Y Y, Wang H L. Highly selective and active CO₂ reduction electrocatalysts based on cobalt phthalocyanine/carbon nanotube hybrid structures[J]. Nat. Commun., 2017, 8(1): 14675. https://doi.org/10.1038/ncomms14675. doi: 10.1038/ncomms14675 URL
[28]	Zhu Q S, Rooney C L, Shema H, Zeng C, Panetier J A, Gross E, Wang H L, Baker L R. The solvation environment of molecularly dispersed cobalt phthalocyanine determines methanol selectivity during electrocatalytic CO₂ reduction[J]. Nat. Catal., 2024, 7(9): 987-999. https://doi.org/10.1038/s41929-024-01190-9. doi: 10.1038/s41929-024-01190-9 URL
[29]	Rohrbach D F, Heineman W R, Deutsch E. Thin-layer spectroelectrochemical studies of cobalt and copper Schiff base complexes[J]. Inorg. Chem., 1979, 18(9): 2536-2542. https://doi.org/10.1021/ic50199a041. doi: 10.1021/ic50199a041 URL
[30]	Chen J X, Wang X Y, Cui X, Li Y Y, Feng Y Q, Wei Z W. In situ probing and identification of electrochemical reaction intermediates by floating electrolytic electrospray mass spectrometry[J]. Angew. Chem. Int. Ed., 2023, 62(12): e202219302. https://doi.org/10.1002/anie.202219302. doi: 10.1002/anie.v62.12 URL
[31]	Zhao K, Pang W Y, Jiang S Y, Hu C Y, Liu P R, Cui D D, An X F, Tian B J, Gao C, Zhang P, Tian M, Fu D, Zhao H J. Operando reconstruction-induced CO₂ reduction activity and selectivity for cobalt-based photocatalysis[J]. Nano Res., 2023, 16(4): 4812-4820. https://doi.org/10.1007/s12274-023-5432-5. doi: 10.1007/s12274-023-5432-5 URL
[32]	Wu F, Jiang F S, Yang J H, Dai W Y, Lan D H, Shen J, Fang Z J. Investigation of molecular mechanism of cobalt porphyrin catalyzed CO₂ electrochemical reduction in ionic liquid by in-situ SERS[J]. Molecules, 2023, 28(6): 2747. https://doi.org/10.3390/molecules28062747. doi: 10.3390/molecules28062747 URL
[33]	Jia J Z, Zhao X H, Hu W H, Wang Y T, Huang J F, Huang J, Li H, Peng Y, Ma H Y, Xu C L. Role of cobalt phthalocyanine on the formation of high-valent cobalt species revealed by in situ Raman spectroscopy[J]. J. Mater. Chem. A, 2023, 11(15): 8141-8149. https://doi.org/10.1039/D2TA10063K. doi: 10.1039/D2TA10063K URL
