超级电容器用强溶剂化及小尺寸离子电解液的设计与应用

霍桐, 刘盼, 陈浩, 张鹏, 陈振磊, 孙国富, 时志强, 王静

Engineering Small-Sized Cations with Strong Solvation for High-Voltage Supercapacitors

Tong Huo, Pan Liu, Hao Chen, Peng Zhang, Zhen-Lei Chen, Guo-Fu Sun, Zhi-Qiang Shi, Jing Wang

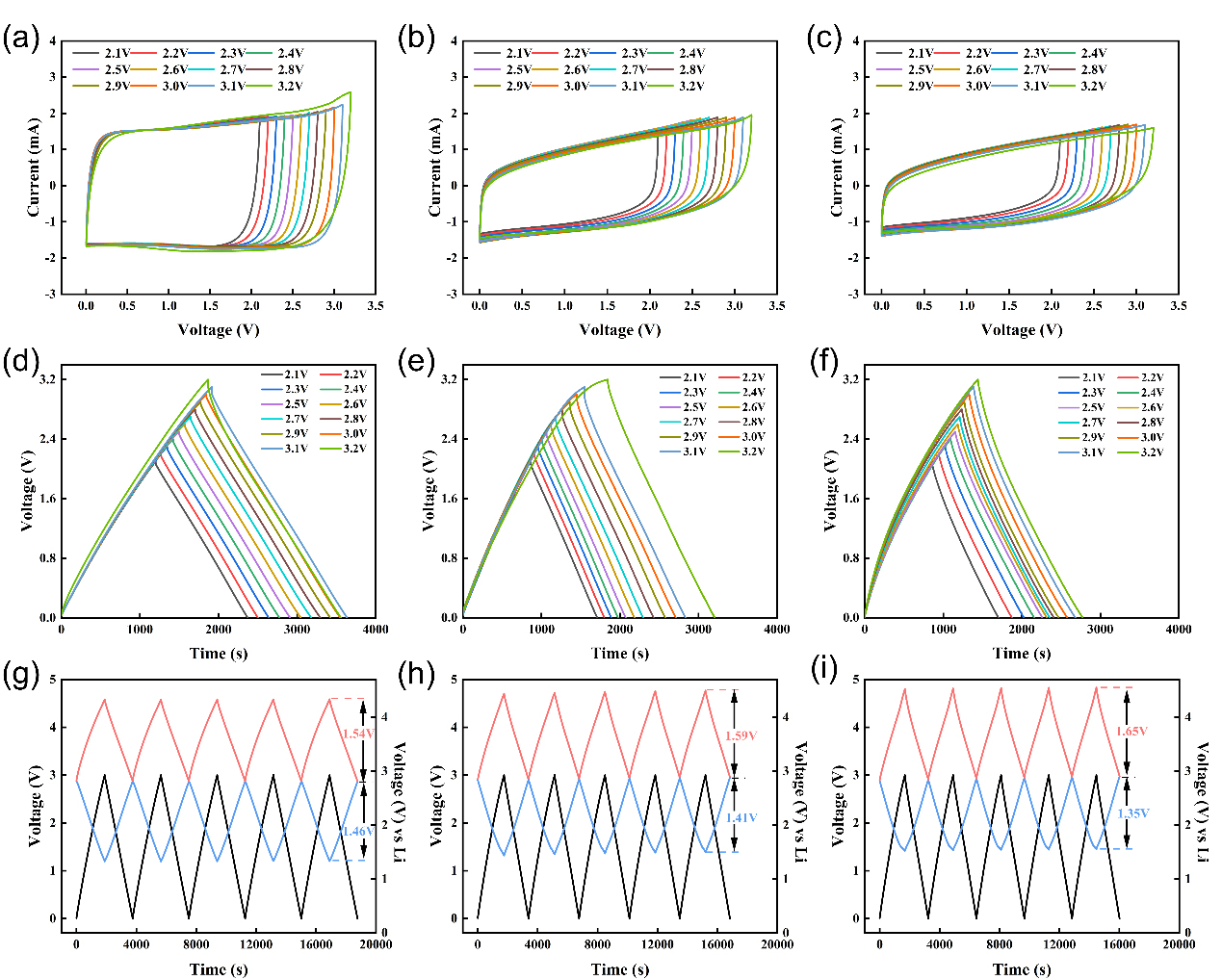

Figure 4. Comparisons of voltage tolerance performance in SCs. CV curves of the SCs using YP-50 electrodes and (a)TMF, (b) TEF, (c) TPF electrolytes at a scan rate of 5 mV·s-1 at different operation voltages. GCD curves of the SCs using (d)TMF, (e) TEF, (f) TPF electrolytes at a current density of 0.5 A·g-1. GCD curves of the three-electrode setup using (g)TMF, (h) TEF, (i) TPF electrolytes at 3.0 V.
