锰-氮-碳纳米笼限域的高密度铂纳米颗粒用于高耐久重载质子交换膜燃料电池

赵磊, 曹振明, 左珈瑜, 杨明亮, 乔红艳, 陈俊松, 吴睿

Dense Platinum Nanoparticles Confined in Mn-N-C Nanocages for Robust Heavy-Duty PEMFCs

Lei Zhao, Zhen-Min Cao, Jia-Yu Zuo, Ming-Liang Yang, Hong-Yan Qiao, Jun Song Chen, Rui Wu

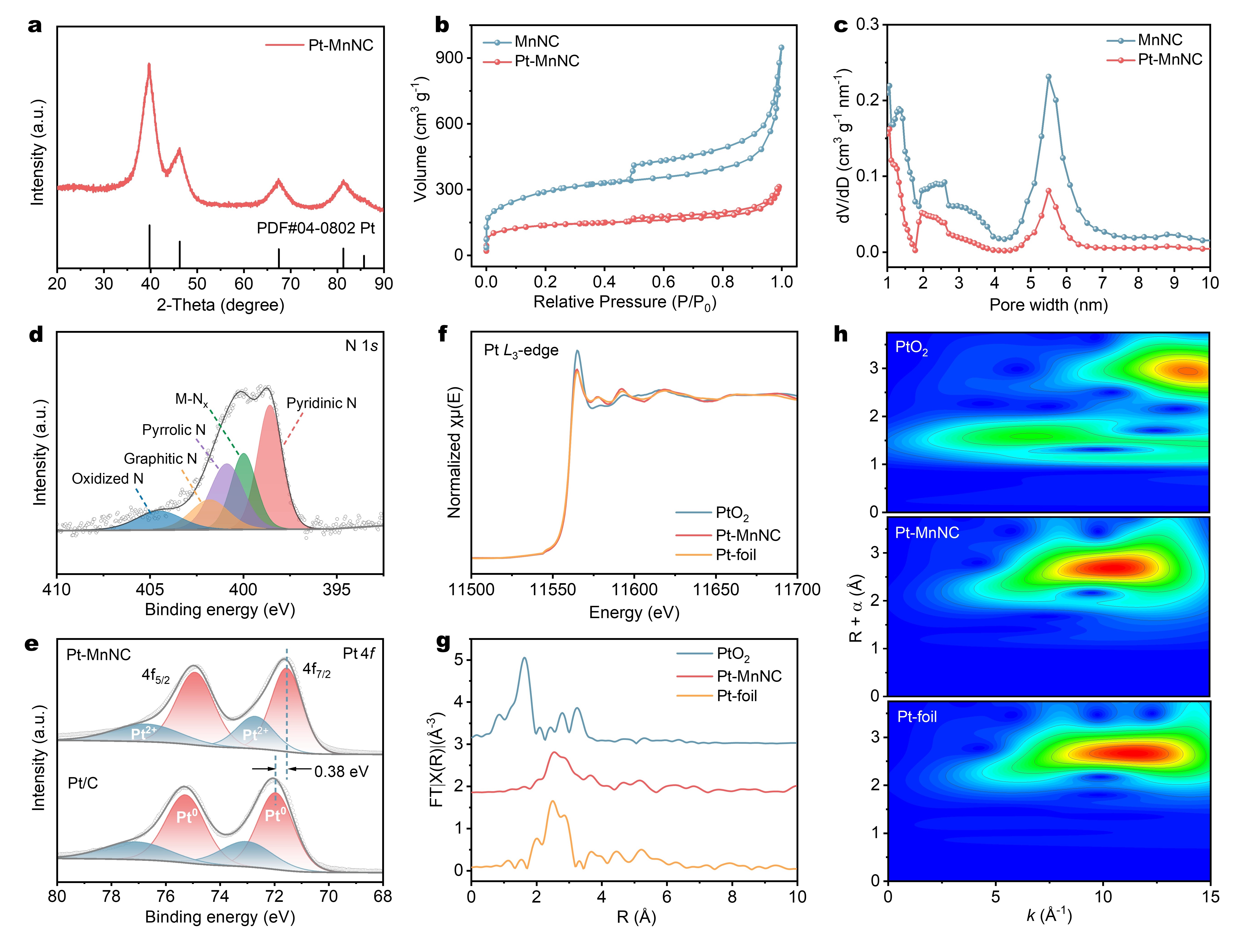

Fig. 3. (a) XRD pattern of Pt-MnNC. (b) N2 adsorption-desorption isotherms and (c) corresponding pore size distribution curves of MnNC and Pt-MnNC. (d) N 1s XPS spectrum of Pt-MnNC. (e) Pt 4f XPS spectra of Pt-MnNC and commercial Pt/C catalyst. (f) Pt L3-edge XANES spectra, (g) Pt L3-edge FT-EXAFS spectra, and (h) Pt L3-edge k3-weighted wavelet diagrams of Pt-MnNC, Pt foil, and PtO2.
