锰-氮-碳纳米笼限域的高密度铂纳米颗粒用于高耐久重载质子交换膜燃料电池

赵磊, 曹振明, 左珈瑜, 杨明亮, 乔红艳, 陈俊松, 吴睿

Dense Platinum Nanoparticles Confined in Mn-N-C Nanocages for Robust Heavy-Duty PEMFCs

Lei Zhao, Zhen-Min Cao, Jia-Yu Zuo, Ming-Liang Yang, Hong-Yan Qiao, Jun Song Chen, Rui Wu

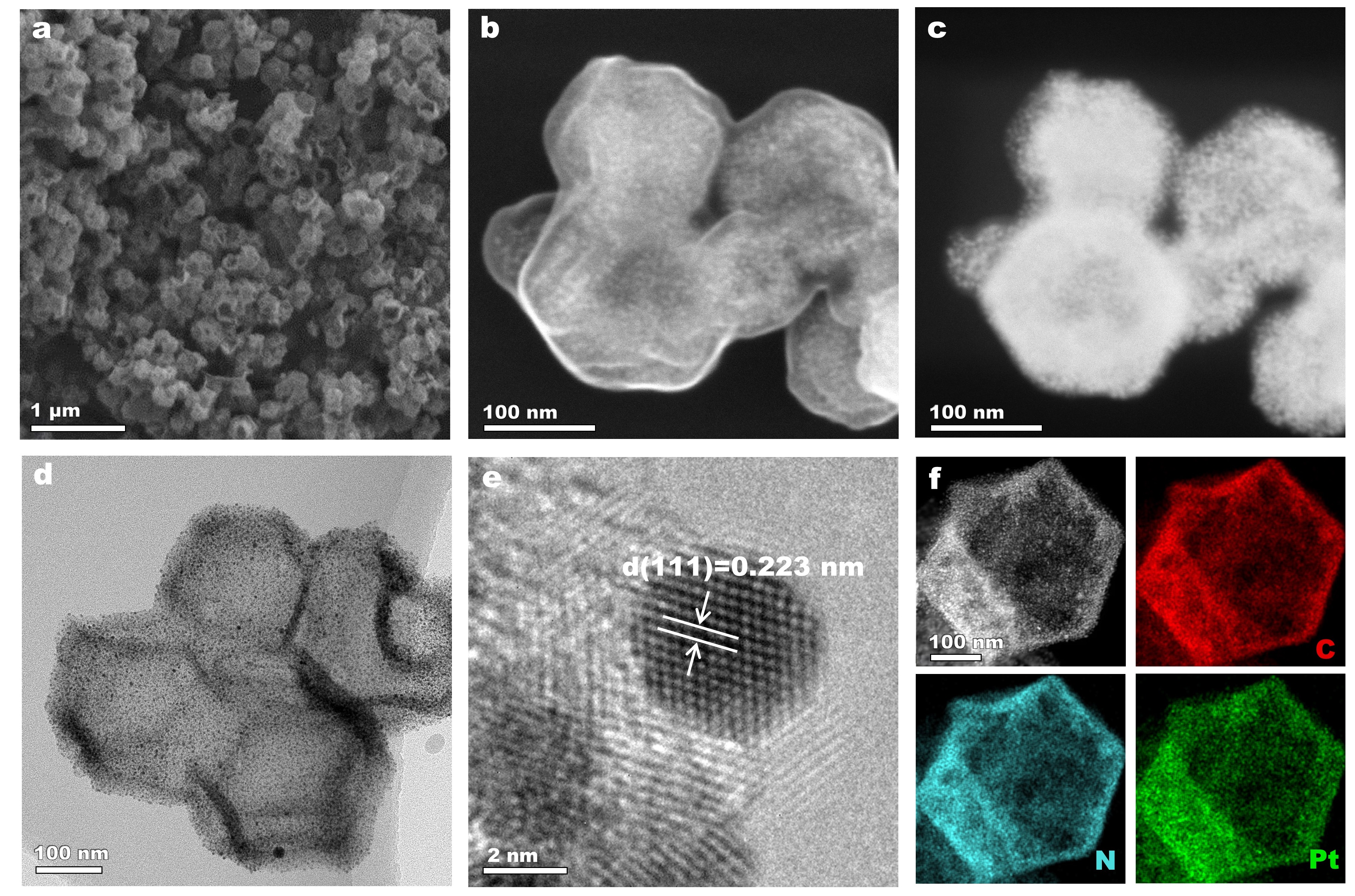

Fig. 2. Characterization of the morphology and structure of Pt-MnNC. (a) SEM image. Exterior and interior Pt NPs localization characterized through (b) SEM image and (c) STEM image. (d) TEM images. (e) HR-TEM image, (f) HAADF-STEM image, and corresponding EDS mapping images.
