金电极表面有序分子膜的电化学原位偏振调制红外反射光谱研究
苏章菲, 陈爱成, Jacek Lipkowski

PM IRRAS Studies of Organized Molecular Films at a Gold Electrode Surface
Zhang-Fei Su, Ai-Cheng Chen, Jacek Lipkowski

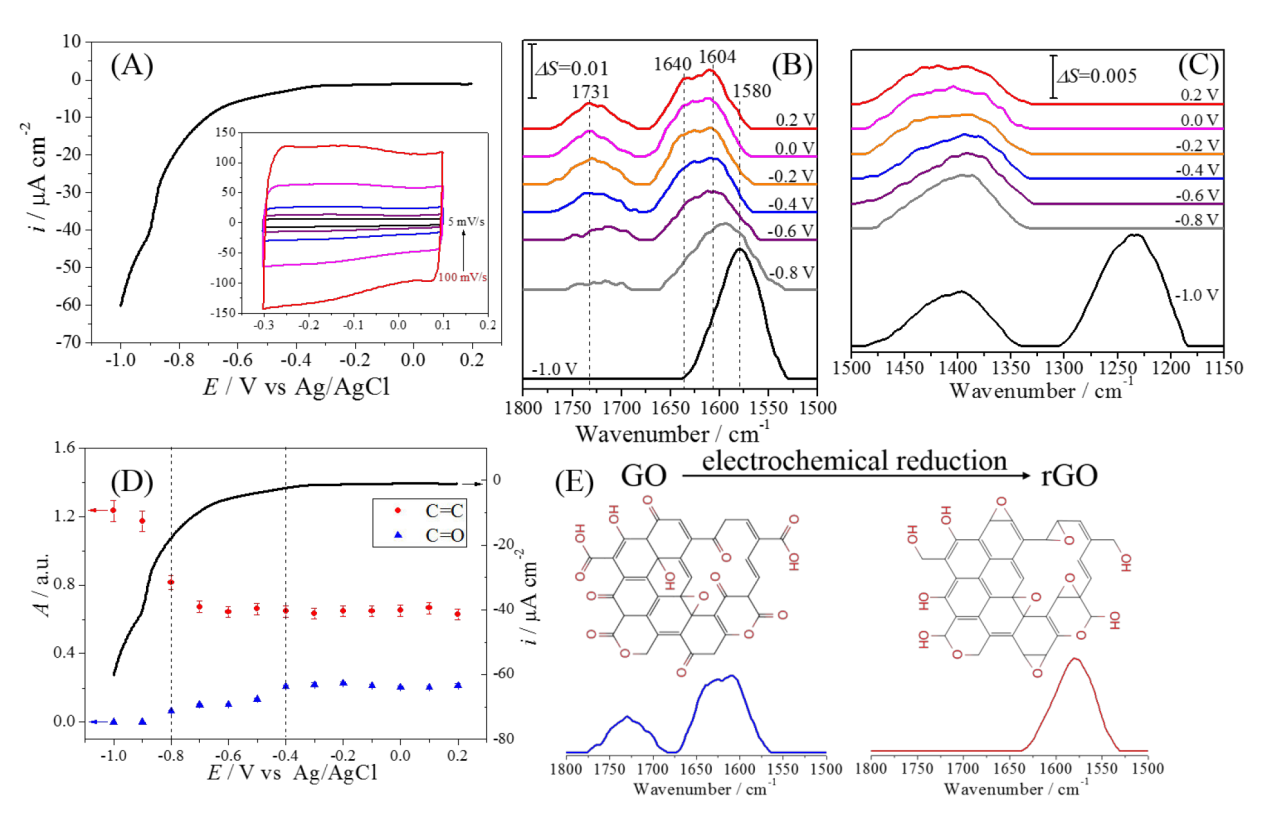

Figure 10. (A) LSV curve illustrating the electrochemical reduction of GO. Inset plots the capacitive currents of rGO recorded at different scan rates. Reprinted with permission from Ref. [92]. Copyright 2023 American Chemical Society. (B & C) PM IRRAS spectra of the GO film at the gold surface in 0.1 mol·L-1 NaF/D2O in the 1500 ~ 1800 cm-1 region (B) and 1150 ~ 1500 cm-1 region (C). The potential was cathodically scanned from 0.2 V to -1.0 V. Reprinted with permission from Ref. [92]. Copyright 2023 American Chemical Society. (D) Variation of the intensities of the C=C (red circles) and C=O (blue triangles) bands in GO as a function of the electrode potential in the cathodic scan (from 0.2 V to -1.0 V). Reprinted with permission from Ref. [92]. Copyright 2023 American Chemical Society. (D) Schematic illustration of changes in the GO structure with potential. Reprinted with permission from Ref. [92]. Copyright 2023 American Chemical Society.
