离子液体中的真空一致电化学与氧化物外延相结合

松本雄司

Vacuum Consistent Electrochemistry in Ionic Liquid Combined with Oxide Epitaxy

Yuji Matsumoto

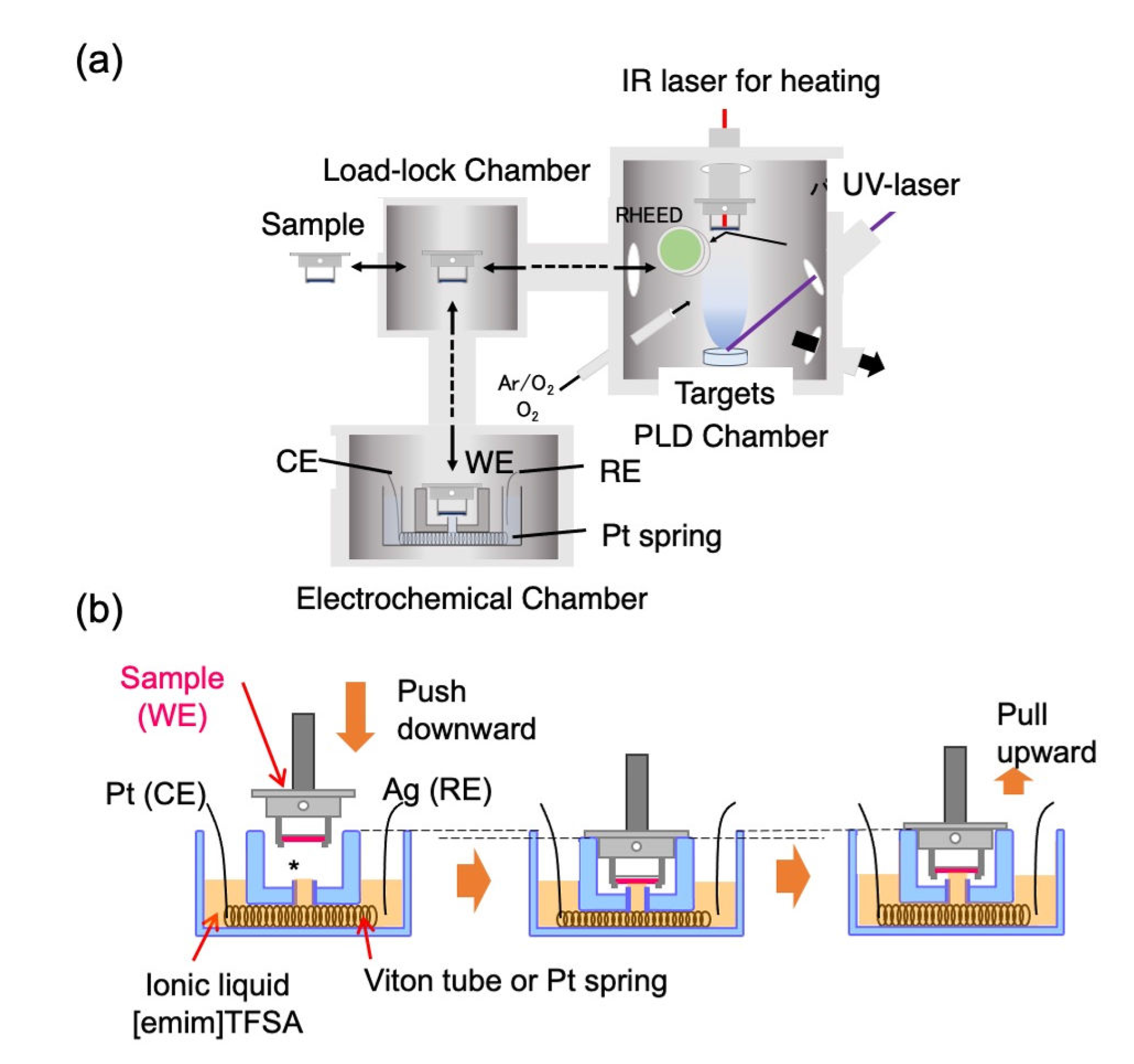

Figure 4. (a) Schematic of the PLD-EC system, consisting of three independent chambers: PLD chamber, Load-lock chamber, and Electrochemical chamber. A sample can be transferred between these chambers without air-exposure, allowing one to perform vacuum electrochemistry experiments. (b) Mechanical contact of a sample with an electrolyte solution. Pushing down the inner quartz cell with the sample holder to raise up the electrolyte solution along the narrow tube (*), making meniscus between the sample surface and the solution[12].
