利用膨胀网作为双极板流道结构优化碱性水电解槽

熊海燕, 朱振啸, 高鑫, 范晨铭, 栾辉宝, 李冰

Optimization of Channel Structure of Alkaline Water Electrolyzer by Using an Expanded Mesh as a Bipolar Plate

Hai-Yan Xiong, Zhen-Xiao Zhu, Xin Gao, Chen-Ming Fan, Hui-Bao Luan, Bing Li

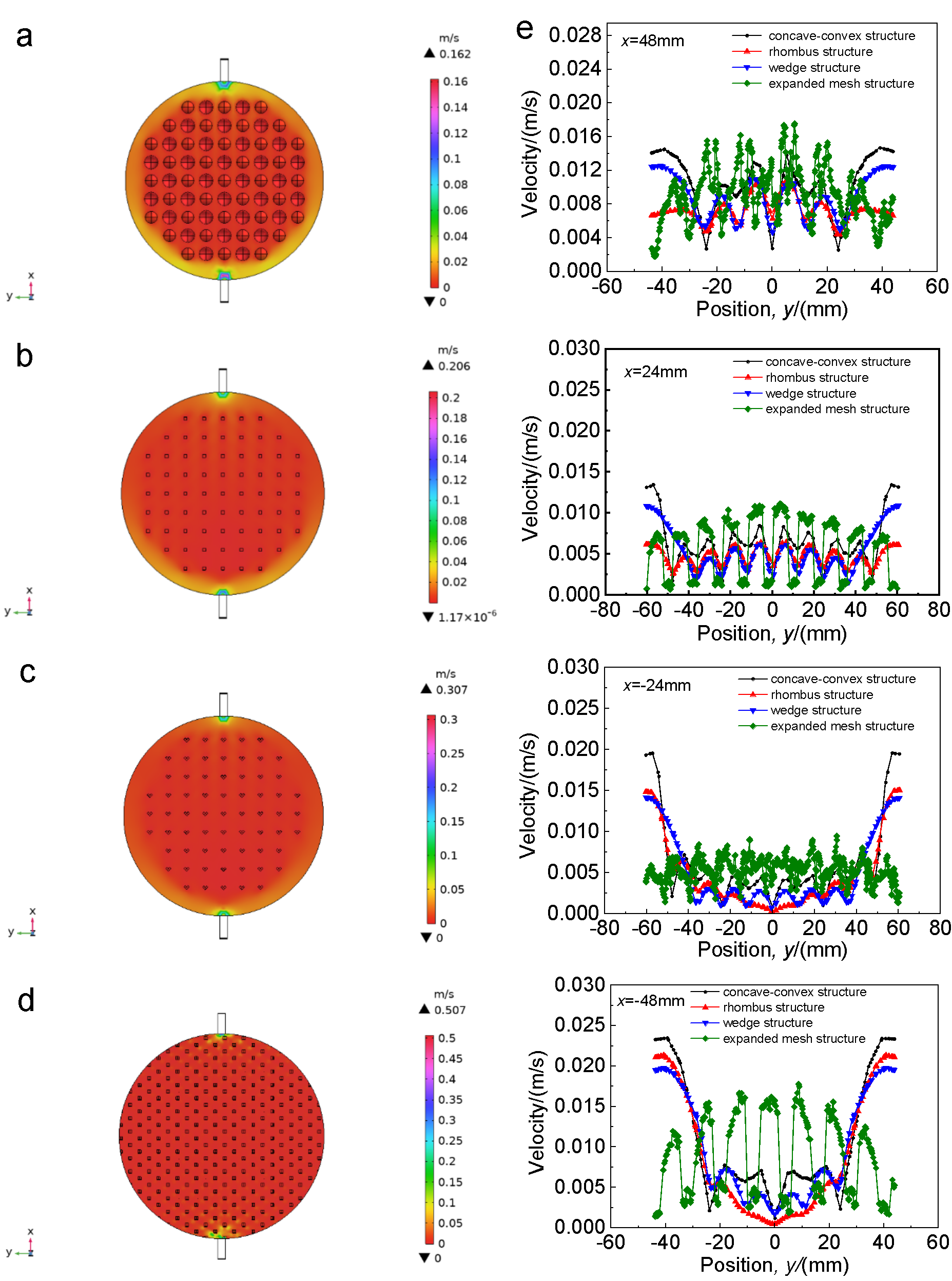

Fig. 14. Electrolyte flow velocity distributions of (a) concave-convex structure electrolyte flow velocity distribution, (b) rhombus structure electrolyte flow velocity distribution (c) wedge structure electrolyte flow velocity distribution and (d) expanded mesh structure electrolyte flow velocity distribution; (e) Velocity profile on the transversal line at different y positions on the reference x-y plane (z = 2.7 mm)
