利用膨胀网作为双极板流道结构优化碱性水电解槽

熊海燕, 朱振啸, 高鑫, 范晨铭, 栾辉宝, 李冰

Optimization of Channel Structure of Alkaline Water Electrolyzer by Using an Expanded Mesh as a Bipolar Plate

Hai-Yan Xiong, Zhen-Xiao Zhu, Xin Gao, Chen-Ming Fan, Hui-Bao Luan, Bing Li

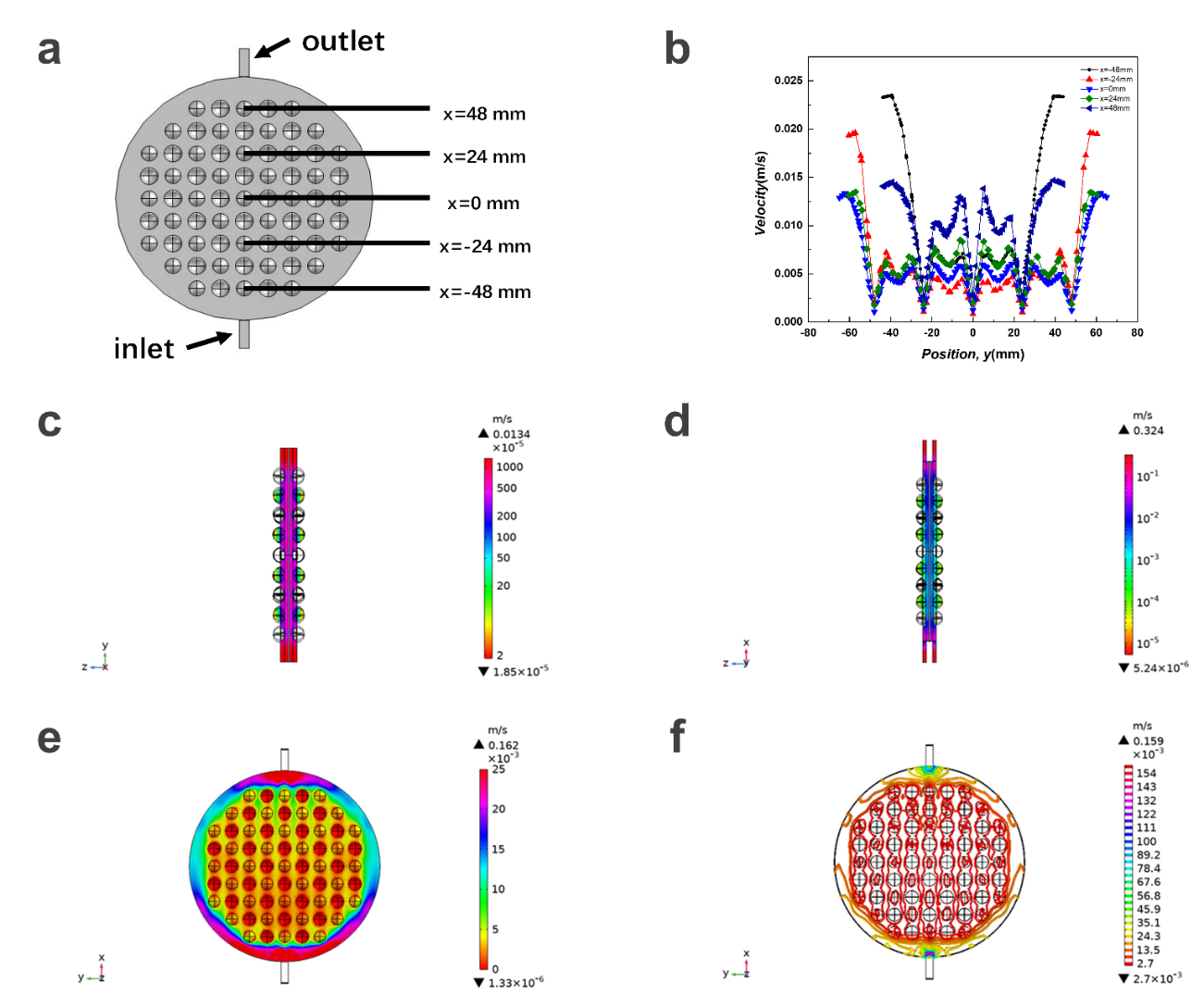

Fig. 10. (a) Locations of the transversal line for study (x-y plane, z = 2.7 mm); (b) Velocity profile on the transversal line at different y positions on the reference x-y plane (z = 2.7 mm); (c) x=0 section flow velocity map; (d) y=0 section flow velocity map; (e) Electrolyte flow velocity distribution inside the electrolytic cell; (f) Flow velocity contours
