脑神经电化学研究

徐聪, 江迎, 于萍, 毛兰群

Brain Electrochemistry

Cong Xu, Ying Jiang, Ping Yu, Lan-Qun Mao

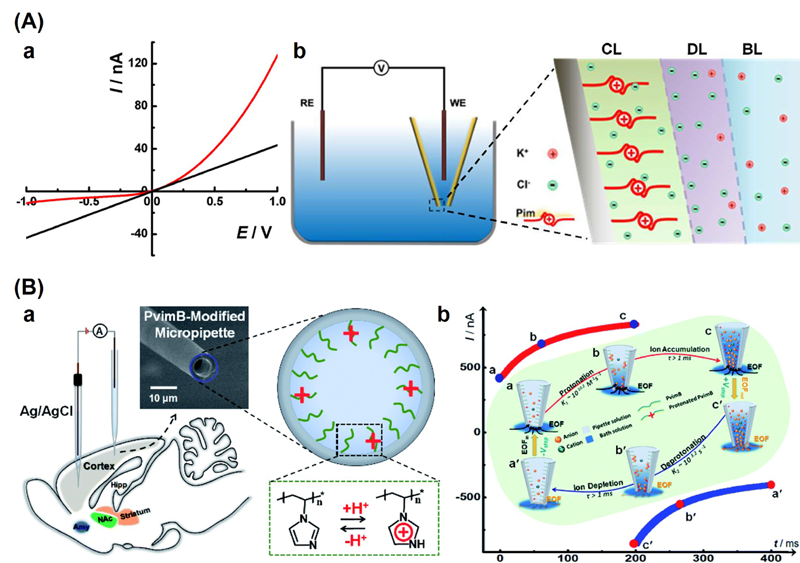

Figure 4 (A) (a) Typical current-voltage responses acquired by using bare micropipette (black curve) and PimB-modified micro-pipette (red curve). (b) Schematic illustration of proposed three-layer model[69]. Reproduced with permission of Ref. 69, copyright 2017 American Chemical Society. (B) Schematic illustrations of (a) experimental setup of in vivo pH sensing by using PvimB-modified micropipette and (b) transient ion transport behaviors and generated ion currents under high-frequency pulse potential[72]. Reproduced with permission of Ref. 72, copyright 2021 Royal Society of Chemistry. (color on line)
