平衡、非平衡、交流状态下电化学双电层建模的初学者指南

张露露, 李琛坤, 黄俊

A Beginners’ Guide to Modelling of Electric Double Layer under Equilibrium, Nonequilibrium and AC Conditions

Lu-Lu Zhang, Chen-Kun Li, Jun Huang

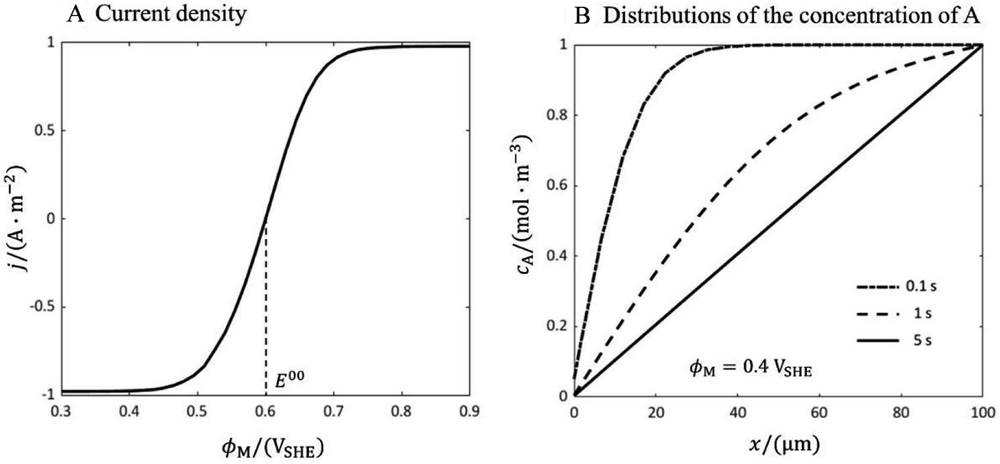

Figure 8. Typical results of the PNP theory, including the current density varying with the electrode potential, and the distributions of the concentration of A at 0.1 s, 1 s and 5 s at 0.4 VSHE. The spatial range for calculation is 100 μm from the HP, and the time duration for calculation is 5 s. The parameters for calculation are listed in Table 1. Matlab script of this model is provided in the supporting information.
