平衡、非平衡、交流状态下电化学双电层建模的初学者指南

张露露, 李琛坤, 黄俊

A Beginners’ Guide to Modelling of Electric Double Layer under Equilibrium, Nonequilibrium and AC Conditions

Lu-Lu Zhang, Chen-Kun Li, Jun Huang

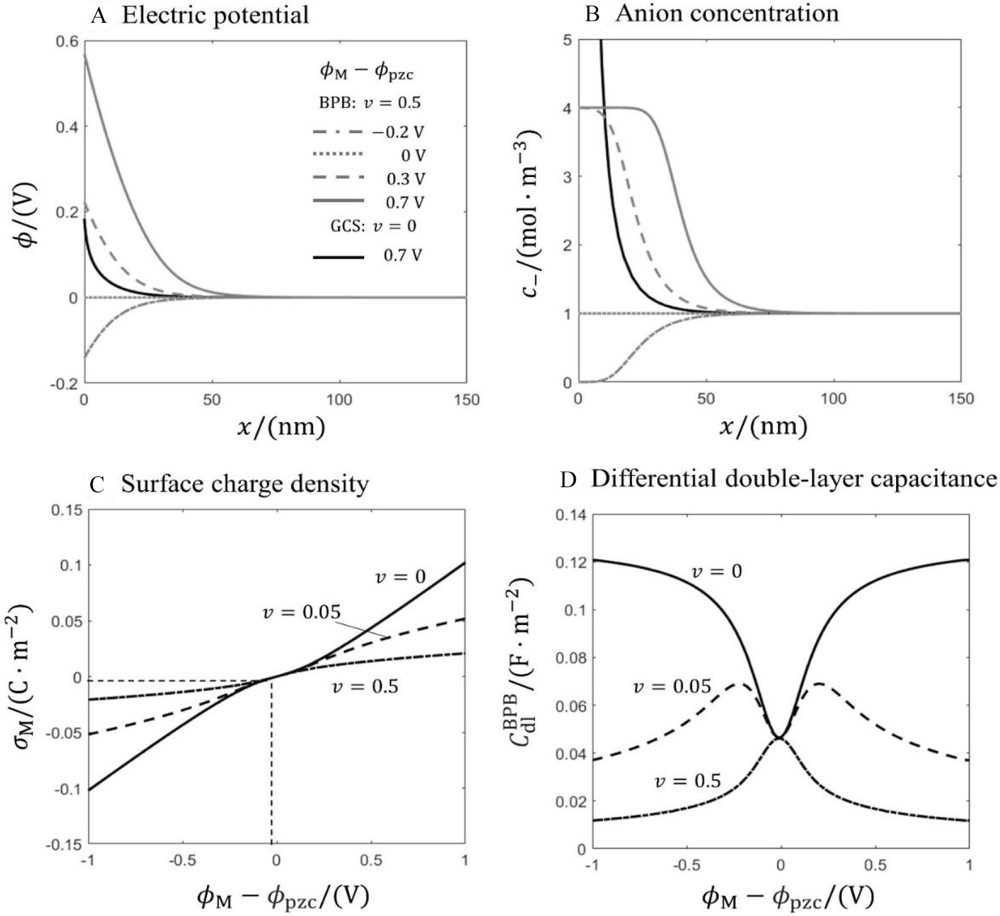

Figure 6. Typical results of the BPB model, including the spatial distributions of the electric potential and the anion concentration at a series of electrode potential in (A) and (B), and the relationships between (C) the surface charge density (D) the differential double-layer capacitance with the electrode potential. For the purpose of comparison, the results of the GCS model are shown in the black solid lines. The parameters for calculation are listed in Table 1. Matlab script of this model is provided in the supporting information. (color on line)
