平衡、非平衡、交流状态下电化学双电层建模的初学者指南
A Beginners’ Guide to Modelling of Electric Double Layer under Equilibrium, Nonequilibrium and AC Conditions
平衡、非平衡、交流状态下电化学双电层建模的初学者指南 |
| 张露露, 李琛坤, 黄俊 |
|
A Beginners’ Guide to Modelling of Electric Double Layer under Equilibrium, Nonequilibrium and AC Conditions |
| Lu-Lu Zhang, Chen-Kun Li, Jun Huang |

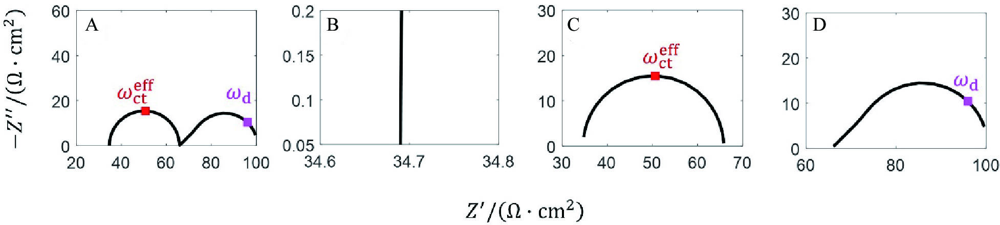

| Figure 11. Nyquist plots of simplified impedance in different frequency ranges. (A) Full frequency range, 1×106 Hz ~ 1×10-4 Hz; (B) ωnd > ωctnd, 1×106 Hz ~ 1×105 Hz; (C) ωdnd < ωnd < ωctnd, 1×104 Hz ~ 10 Hz; (D) ωnd < ωdnd, 1 Hz ~ 1×10-4 Hz. Parameters are c0 = 100 mol·m-3, k0 = 3×10-4 mol·m-2·s-1, D = 1×10-10 m2·s-1. Matlab script of this model is provided in the supporting information. (color on line) |
|
|
